Will the 10mm base height clear my rifle scope's objective lens?

With a base height of 10 mm (bringing the optical centreline to 27 mm), this is an ultra-low profile mount designed for streamlined setups. On a flat receiver rail, scopes with objective lens housings larger than 50 mm to 56 mm may contact the barrel, in which case you should consider the 13 mm, 18 mm, or 25 mm Era-Tac versions instead.

Are these ring mounts capable of handling heavy-calibre recoil in the outback?

Yes, the Era-Tac Two-Piece Ring Mounts are built and tested to withstand intense heavy recoil up to .50 BMG. Constructed from solid 7075 aircraft-grade aluminium with Mil-Spec Type III hardcoat anodising and rust-proof hardened steel quick-detach levers, they maintain zero reliably under harsh Australian bush and range conditions.

Do I need any special permits or electrical certifications to use these in Australia?

No permits or electrical certifications are required. Because these are entirely mechanical, non-electrical firearm accessories, regulations such as 240V, RCM, or SAA compliance are completely inapplicable to this product.

Can I mount accessories directly to these rings?

Yes, each 25 mm wide ring features Era-Tac's universal interface. This allows you to integrate compatible add-ons from our range, such as the Era-Tac Aluminum Scope Ring With Universal Interface 34mm or secondary red-dot and angle cosine indicator mounts.

34mm Scope Mounts - Era-Tac T1004-0010

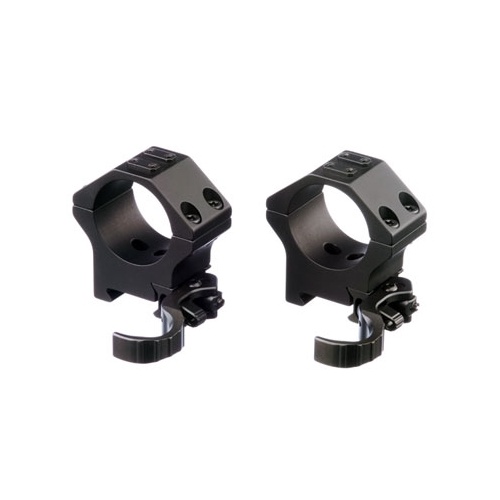

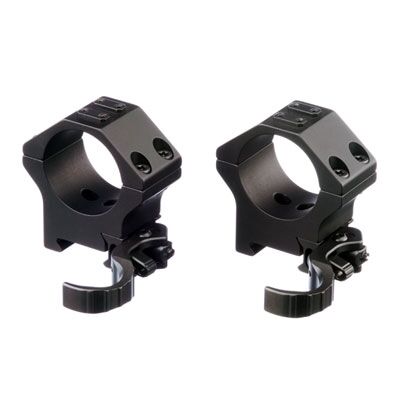

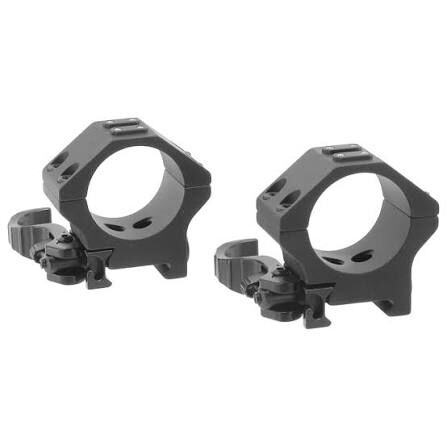

The Era-Tac Two-Piece Ring Mounts 34mm With Lever Base Height 10mm (Model: T1004-0010) are precision-engineered optical mounting rings designed by Recknagel in Germany. Machined from solid aircraft-grade 7075 aluminium with Mil-Spec Type III hardcoat anodising, this two-piece set mounts 34 mm rifle scopes directly to MIL-STD-1913 Picatinny and NATO-STANAG 4694 rails. The assembly secures with rust-proof, tempered steel quick-detach safety levers engineered for repeatable return-to-zero performance under severe recoil loads up to .50 BMG.

Key Features

Quick-Detach Safety Levers: Integrated tool-free steel locking levers prevent accidental opening while clamping securely to both in-spec and out-of-spec rails with 100% repeatable return-to-zero capability.
Universal Interface Top Caps: Each 25 mm ring includes integrated mounting points engineered to accept modular accessory tops, such as secondary red dot brackets and angle cosine indicators.
Two-Piece Flexibility: Independent ring placement allows customized positioning to fit diverse action port openings, varying receiver geometry, and scopes with short or long tube dimensions.
Heavy-Recoil Construction: CNC-machined from 7075 aircraft aluminium to withstand severe mechanical shock up to .50 BMG calibre recoil.

Specifications

Scope Tube Diameter: 34 mm
Base Height: 10 mm (0.394 in) from top of rail to bottom of scope tube
Optical Centerline Height: 27 mm (1.06 in)
Ring Width: 25 mm (0.984 in) per ring
Material: CNC-machined 7075 aircraft-grade aluminium
Finish: Mil-Spec Type III hardcoat anodised, matte black
Locking Mechanism: Quick-detach safety levers (hardened, rust-proof tempered steel)
Mounting Standard: Picatinny (MIL-STD-1913) and NATO-STANAG 4694
Elevation Inclination: 0 MOA
Recoil Rating: Tested up to .50 BMG

Who is the Era-Tac Two-Piece Ring Mounts 34mm With Lever Base Height 10mm for?

Precision tactical rifle shooters using heavy-calibre platforms — Requires a quick-detach 34mm scope ring engineered to withstand recoil loads up to .50 BMG without shifting zero across repeatable removals.
Long-range benchrest and heavy-calibre hunting rifle owners — Demands a low-profile 10 mm base height (27 mm optical centerline) coupled with 25 mm wide clamping surfaces to securely seat large 34 mm optics over bolt-action ejection ports.

Less suitable for: Shooters requiring extreme elevation adjustment beyond standard turret travel (better served by a 20 to 70 MOA inclined block mount), rifles with large 50 mm to 56 mm objective lens housings that touch the barrel at a 10 mm base height (better served by 13 mm, 18 mm, or 25 mm high rings), or AR-15/M4 flat-top platforms requiring forward eye relief (better served by a one-piece cantilever mount).

SKU	ERA42405LP
Model #	T1004-0010
Brand	Era-Tac
Shipping Weight	1.0000kg
