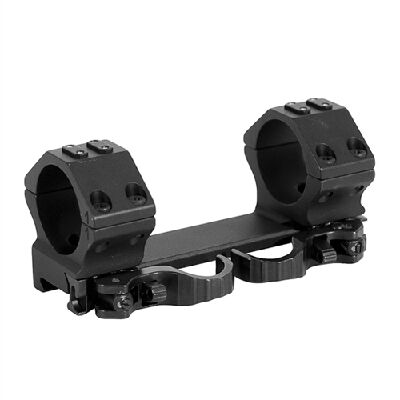

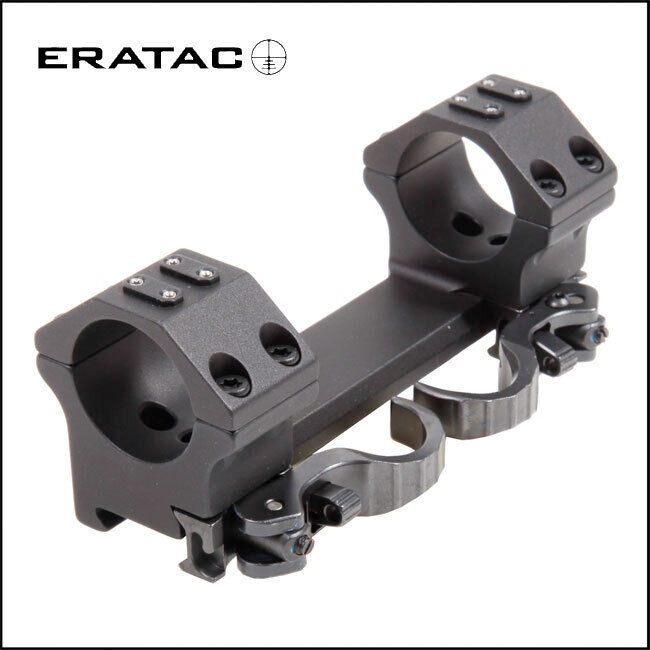

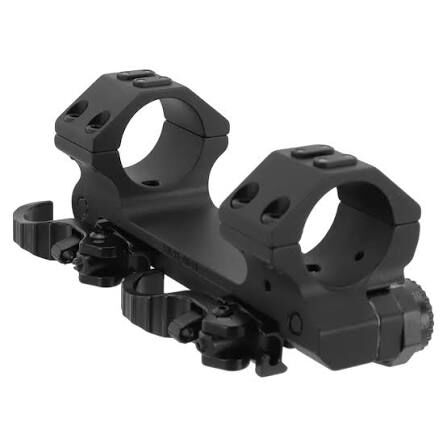

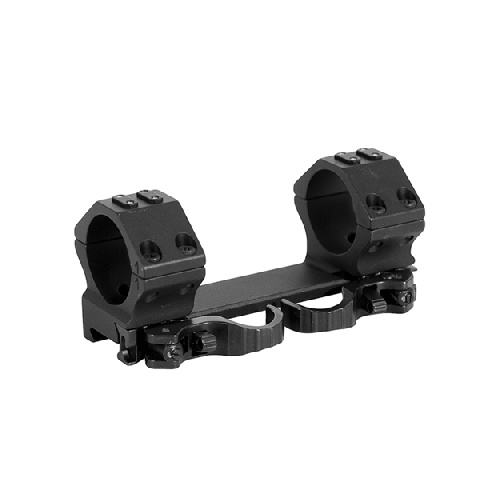

The ERA-TAC One-Piece Tactical QD Mount (MPN: T1014-2019) is a precision-engineered scope mount designed to clamp 34 mm main-tube optics securely onto MIL-STD-1913 Picatinny and STANAG 4694 rails. Manufactured in Germany by Recknagel from solid-billet aircraft-grade aluminium, this short-base non-cantilever mount features an integrated 20 MOA forward inclination to preserve internal optic elevation for extreme long-range trajectory compensation. Clamping is secured via self-locking, spring-loaded quick-detach safety levers tested to withstand continuous recoil forces up to .50 BMG while delivering 100% return-to-zero repeatability.

Key Features

• 20 MOA Built-In Forward Cant: Pre-elevates optic adjustment travel to ensure riflescopes retain necessary upward elevation dialling for targets beyond 600 to 1,000+ metres.
• Self-Locking Safety QD Levers: Clamping system prevents accidental snagging and release in the field while allowing rapid, toolless removal and reattachment without loss of zero.
• 19.5 mm Base Height: Provides a 36.5 mm (approx. 1.44") optical centreline height, clearing large tactical objective lenses up to 56 mm on flat continuous receiver rails.
• Universal Interface Rings: Features top and side mounting interfaces compatible with ERA-TAC secondary attachment plates for secondary red dots, bubble levels, and angle cosine indicators.
• Heavy-Recoil Construction: CNC-machined from high-grade aircraft aluminium with a MIL-SPEC Type III Class 2 hard-anodised matte black finish and rust-proof steel cross-bolts.

Specifications

• Ring Diameter: 34 mm
• Base Height (BH): 19.5 mm (approx. 0.77" from top of rail to bottom of scope tube)
• Optical Centreline Height: ~36.5 mm (~1.44")
• Forward Inclination: 20 MOA
• Rail Footprint / Clamping Length: 125 mm continuous rail contact surface
• Rail Standard: Picatinny (MIL-STD-1913 / STANAG 4694)
• Recoil Rating: Tested up to .50 BMG
• Mechanism: Quick-detach levers with spring-loaded mechanical safety catches
• Material: Aircraft-grade solid-billet aluminium with steel hardware
• Finish: Hard-anodised MIL-SPEC Type III Class 2 matte black

Who is the ERA-TAC One-Piece Tactical QD Mount 34mm Base Height 19.5mm for?

• Precision rifle competition shooters — requires a rigid quick-detach scope mount with an integrated 20 MOA forward cant to preserve internal turret elevation adjustments for mid- to long-range targets past 600 metres, anchored by a stable 125 mm rail contact surface.
• Extreme long-range hunters — relies on the 19.5 mm base height to provide sufficient clearance for large 56 mm objective lenses on bolt-action platforms while maintaining heavy-calibre recoil resistance up to .50 BMG.
• Tactical and duty rifle operators — uses the toolless quick-detach safety levers on this 34 mm scope mount for field stripping or optic swaps without losing return-to-zero alignment.

Less suitable for: Close-range shooting under 100 metres where a 20 MOA inclination may cause optics with limited elevation travel to bottom out (a 0 MOA mount is recommended instead), or flat-top AR-15 platforms requiring forward eye-relief over the receiver, which require an extended cantilever mount rather than this 125 mm short-base format.
