Does this unpowered mechanical mount require any Australian electrical certifications like SAA or RCM for legal use?

No electrical certifications are required. The Era-Tac T1249-0115 is a completely passive, unpowered mechanical accessory containing no internal wiring or electronics, making standard Australian AC power standards, 240V ratings, SAA, and RCM compliances inapplicable.

Can I use this 49 mm riser to mount a full-size variable power riflescope or a dual-ring optic setup?

No, a single 49 mm tip-off mount is too short for full-size riflescopes or dual-ring spacing. It is specifically built for compact optics, red dots, thermal devices, or accessories that fit within its 49 mm rail length; for larger scopes, you would need a full-length one-piece block mount or a two-piece ring system.

How well does the hardcoat anodized finish hold up against harsh Australian outback environments and coastal moisture?

The mount is treated with a Mil-Spec Type III matte black hardcoat anodized finish that offers exceptional anti-corrosion properties. This makes it highly durable against dust, extreme outback heat, and maritime exposure during multi-day hunting trips in harsh field conditions.

Picatinny Mount - Era-Tac T1249-0115

Q: Will the Era-Tac Tip-Off Mount hold zero under heavy .50 BMG recoil during extended shooting sessions?

Yes, the mount features a self-locking, adjustable quick-detach steel safety lever and is manufacturer-tested to withstand recoil forces up to .50 BMG. Machined from high-grade 7075-T6 aircraft aluminium with a Mil-Spec Type III hardcoat anodized finish, it maintains precise return-to-zero capabilities and structural integrity even under severe repetitive shock.

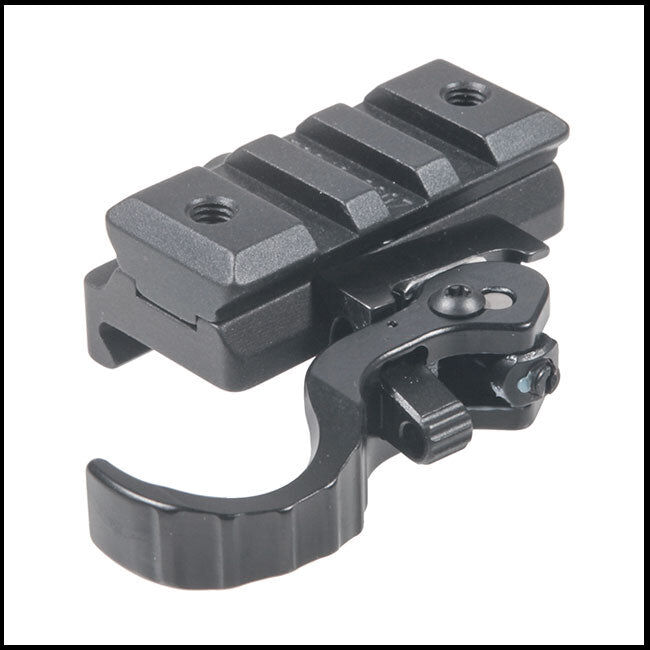

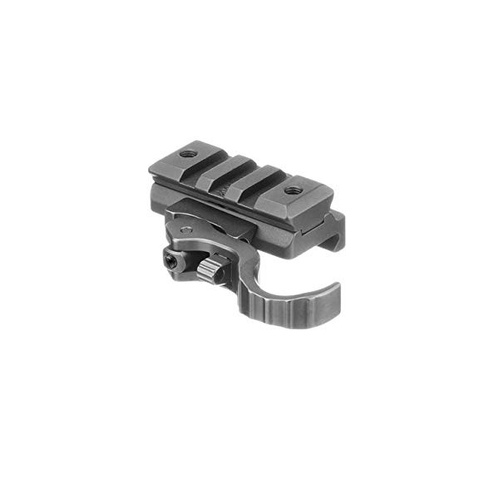

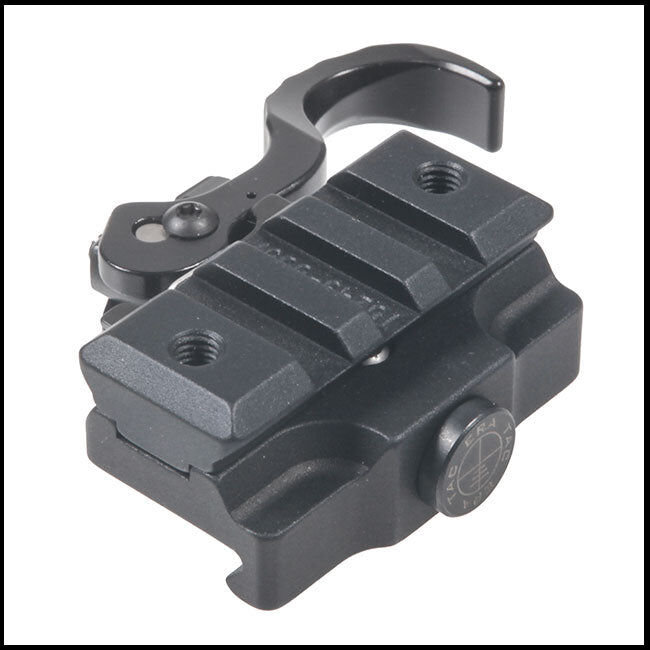

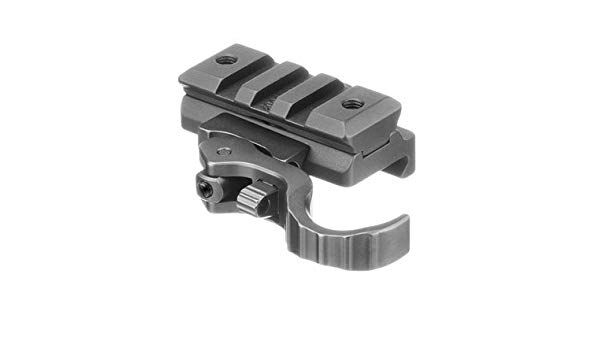

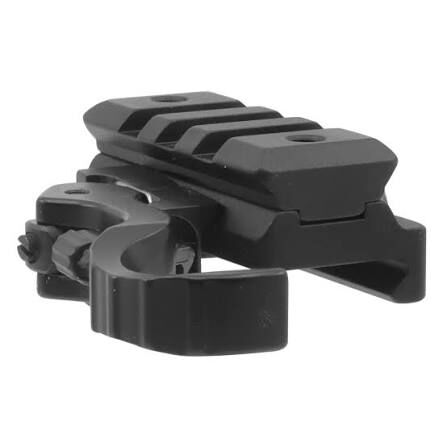

The Era-Tac Tip-Off Mount With Picatinny Profile And Qd Lever is a German-engineered quick-detach optical riser designed to elevate and quickly decouple compact targeting devices on standard rails. Machined from high-grade 7075-T6 aircraft aluminium with a Mil-Spec Type III hardcoat anodized finish, this non-powered mechanical mount attaches directly to MIL-STD-1913 Picatinny and Weaver rails. It utilizes an adjustable, self-locking steel safety lever that provides tool-free installation, rapid detachment, and repeatable return-to-zero capabilities under extreme operating conditions.

Key Features

Optical Elevation: Provides a 15 mm base height (BH) to properly align compact red dot sights, prismatics, and thermal devices with eye level on inline rifle receivers.
Quick-Detach Lever: Features a steel safety lever mechanism engineered for rapid, toolless transitions and reliable return-to-zero reinstallation.
Heavy Recoil Resistance: Manufacturer-tested to withstand heavy recoil forces up to .50 BMG without shifting zero or loosening.
Durable Construction: Milled from 7075-T6 aluminium with Mil-Spec Type III matte black hardcoat anodizing for field-grade corrosion resistance.
Universal Interface: Clamps to standard Picatinny and Weaver rails while providing an elevated 49 mm Picatinny top rail section for accessories.

Specifications

Mount Type: Picatinny quick detach riser mount
Part Number: T1249-0115 (Gen 1 QD lever)
Base Height (Elevation): 15 mm
Overall Length: 49 mm
Weight: Approximately 87 g
Material: 7075-T6 aircraft aluminium with steel clamping components
Finish: Hardcoat anodized matte black (Mil-Spec Type III)
Rail Compatibility: MIL-STD-1913 Picatinny and Weaver specifications
Calibre Rating: Recoil-tested up to .50 BMG
Power Requirements: Passive mechanical system (0V, unpowered)

Who is the Era-Tac Tip-Off Mount With Picatinny Profile And Qd Lever for?

AR-15 and AR-10 platform shooters — Delivers a 15 mm base height elevation that aligns compact primary optics to the correct eye-level cheek weld on inline receiver profiles while adding only 87 g to the rifle setup.
Chassis rifle system users mounting compact optics or thermal devices — Offers an elevated 49 mm mounting surface rated to withstand recoil forces up to .50 BMG for heavy-calibre bolt-action chassis platforms.
Tactical shooters requiring clearance for IR lasers and weapon lights — Serves as a 15 mm standoff Picatinny quick detach riser mount to elevate sighting devices above crowded top rails hosting illuminators and laser modules.

Less suitable for: Mounting configurations where the optic footprint exceeds a 49 mm rail length or requires dual-ring mounting; these systems require a full-length one-piece cantilever scope mount or dedicated two-piece mounting rings.

SKU	ERA42409LP
Model #	T1249-0115
Brand	Era-Tac
Shipping Weight	1.0000kg
