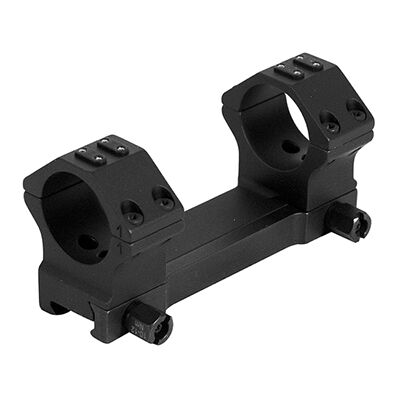

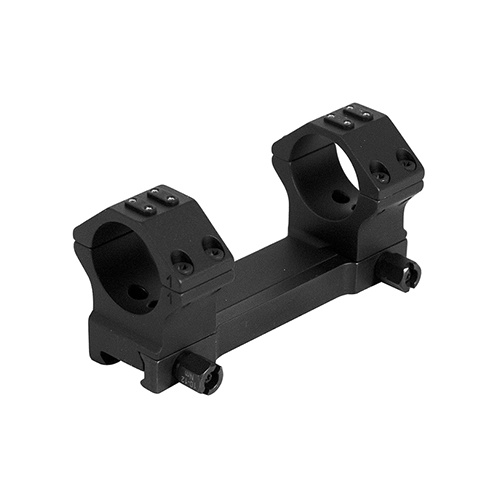

The Era-Tac One-Piece Tactical Mount 34mm with Base Height 19.5mm 20MOA (MPN: T2014-2019) is a heavy-duty, German-engineered mounting system built by Recknagel for high-recoil precision rifle platforms. Machined from 7075-T6 aircraft-grade aluminium with a Mil-Spec Type III hardcoat anodised matte black finish, this one-piece rifle scope mount clamps directly to standard MIL-STD-1913 Picatinny rails using 7/16-inch hex nuts. It features an integrated 20 MOA forward cant designed to preserve upward elevation travel on long-range tactical optics, while offering recoil-proof performance rated up to .50 BMG.

Key Features

• 20 MOA Forward Incline: Built-in 20 MOA cant provides additional elevation adjustment for extended-range trajectories past 600 to 1,000 metres.
• Compact Middle-Tube Accommodation: Engineered with 70 mm of space between the inner ring edges to mount compact, short-tube optics (such as 5-20×50 Ultra Short designs) without turret housing interference.
• Recoil-Proof Clamping: Secures via 7/16-inch hex nuts along a 120 mm base contact surface, rated to withstand calibres up to .50 BMG with 100% return-to-zero repeatability.
• ERA-TAC Universal Interface: Ring caps are pre-machined to mount secondary accessories directly, including red-dot adapter plates, angle indicators (ACI), and bubble levels.

Specifications

• Internal Ring Diameter: 34 mm
• Base Height (BH): 19.5 mm (top of rail to bottom of scope tube)
• Centerline Height: ~36.5 mm (approx. 34.5 mm nominal without cant)
• Forward Tilt / Inclination: 20 MOA
• Fixation Method: 7/16" hex nuts on MIL-STD-1913 Picatinny rails
• Overall Mount Length: 125 mm
• Base Clamping Length: 120 mm
• Inner Ring Distance: 70 mm
• Outer Ring Spacing: 120 mm
• Bare Weight: 270–300 g
• Material & Finish: 7075-T6 aluminium, Mil-Spec Type III hardcoat anodised matte black
• Recoil Rating: Tested up to .50 BMG

Who is the Era-Tac One-Piece Tactical Mount 34mm With Base Height 19.5mm 20moa for?

• Precision long-range tactical shooters — relies on the integrated 20 MOA forward cant and 34 mm ring diameter to maximise internal elevation travel on high-magnification optics across distances beyond 600 to 1,000 metres.
• Marksmen using short middle-tube compact optics — requires the 70 mm spacing between the inner ring edges of this one-piece rifle scope mount to clear wide central turret blocks and illumination assemblies on compact tactical scopes.

Less suitable for: Target shooting strictly under 300 metres with scopes having limited elevation travel, where a 0 MOA one-piece mount is better suited to maintain a 100-metre zero; or backcountry hunting where pack weight is critical, where an ultralight tactical mount weighing 145–150 g is better suited than this 270–300 g unit.
