The Frankford Arsenal Universal Bullet Seating Die (FA-UBSD / 1116715) is a premium, purely mechanical reloading tool designed to simplify and streamline the precision bullet seating process. Featuring a standard 7/8"-14 thread pattern, this die is highly versatile and compatible with almost all standard single-stage and coaxial reloading presses on the Australian market. By utilizing interchangeable internal components, it eliminates the need for handloaders to purchase dedicated, individual seating dies for every unique rifle cartridge they reload.

Key Features

• Cutout Window Die Body: Features a convenient window cutout that allows the user to drop the bullet directly into the sleeve before cycling the press. This holds the bullet in perfect alignment with the case mouth during seating, protecting fingers and preventing bullet runout.
• Built-In Micrometer: Equipped with a micro-adjustable top dial that allows for ultra-precise seating depth adjustments in fine .001-inch increments.
• Interchangeable Internals: Includes 9 calibre-specific alignment sleeves (.224, .243, .257, .264, .277, .284, .308, .325, and .338) and 3 Very Low Drag (VLD) bullet seating stems (short, medium, and long lengths) to match various bullet profiles and cartridge lengths.
• Mechanical Operation: This tool is entirely hand-operated and contains no electrical components, meaning it does not require an electrical power source or SAA/RCM safety approvals for Australian use.

Specifications

• Thread Interface: Standard 7/8"-14 thread
• Calibre Compatibility: Bullet diameters ranging from .224 to .338
• Adjustment Increments: .001-inch
• Shipping Weight: 1.528 lbs (approximately 0.69 kg)

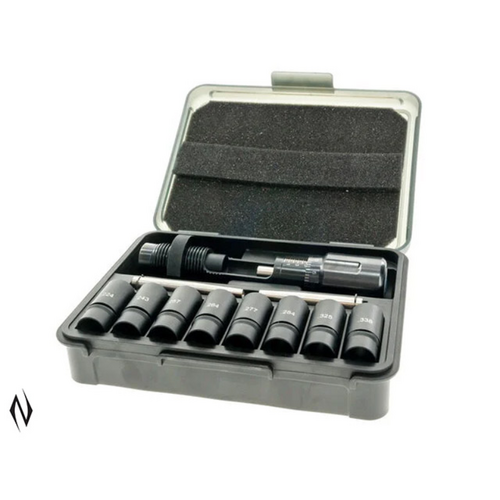

• Included Accessories: Die body with micrometer, 9 alignment sleeves, 3 VLD seating stems (one sleeve and stem pre-assembled), and a custom molded plastic storage case.

Who is the Frankford Arsenal Universal Bullet Seating Die for?

• Precision rifle handloaders — who reload multiple cartridges and require a single universal bullet seating die to adjust seating depths in extremely fine .001-inch increments across different rifle setups.
• Competitive shooters — aiming to eliminate bullet runout across various cartridge setups using a universal rifle bullet seating die engineered to align bullet diameters from .224 to .338 inside a cutout window.

Less suitable for: reloaders working with calibres smaller than .224 (such as .17 or .204) or larger than .338 (such as .375 or .50 BMG), who require a calibre-specific seating die, as well as those needing a roll or factory crimp on their cartridges, who must use a separate crimping die.
