The Frankford Arsenal Fx-10 Bullet Feeder Conversion Kit 9mm (MPN: FA-FX10CK9MM) is a mechanical, calibre-specific system designed to automate the bullet-feeding and seating process during progressive ammunition reloading. Engineered to integrate directly into the tool head of the Frankford Arsenal X-10 Progressive Reloading Press, this conversion kit eliminates the manual step of placing individual projectiles onto the case mouth. It allows high-volume reloaders to cleanly transition their existing bullet feeding setup to run 9mm Luger ammunition safely and efficiently.

Key Features

• Integrated Feeding and Seating: The system integrates into the progressive press tool head, feeding and seating bullets at a single station to maximize reloading efficiency.
• Micrometer Adjustable Seating Die: Includes an adjustable micrometer seating die that allows handloaders to make precise, fine-tuned adjustments to the bullet seating depth.
• Mechanical Interface: Operates entirely through a mechanical-interface drive linked to the press indexing system, requiring no independent power motor of its own.

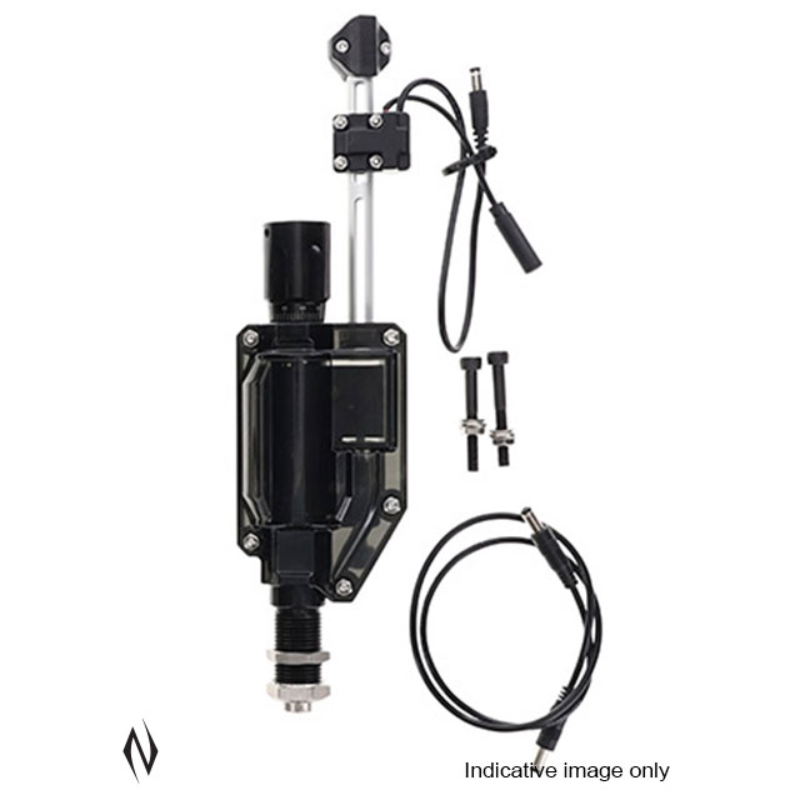

• Complete Calibre-Specific Kit: Package contains a 9mm bullet collator plate, a bullet feed and shuttle assembly, and the micrometer seating die to enable complete automation for this calibre.

Product Specifications

• Product Name: Frankford Arsenal Fx-10 Bullet Feeder Conversion Kit 9mm (also marketed as the X-10 9mm Bullet Feed Conversion Kit)
• Model/Part Number (MPN): FA-FX10CK9MM
• Calibre Compatibility: 9mm Luger
• Press Compatibility: Frankford Arsenal X-10 Progressive Reloading Press
• Required Companion Equipment: Frankford Arsenal X-10 Bullet Feeder Collator (Australian users operating on local mains power must ensure their companion collator is the international 240V model, Product# 1094737)
• Power Requirements: None (purely mechanical; driven by the X-10 press and bullet feeder collator)

Who is the Frankford Arsenal Fx-10 Bullet Feeder Conversion Kit 9mm for?

• High-volume 9mm handloaders — who require an automated feed system to streamline high-speed progressive reloading of 9mm Luger projectiles, leveraging the included 9mm calibre-specific bullet collator plate to eliminate manual bullet handling.
• Competitive shooters reloading in bulk — who need to precisely control their cartridge overall length using the micrometer adjustable seating die to load 9mm Luger ammunition in high volumes on a progressive press.

Less suitable for: Handloaders reloading calibres other than 9mm Luger, as this conversion kit is strictly calibre-specific and attempting to run other cartridge dimensions will result in feeding failures; users loading different calibres will require a separate calibre-specific conversion kit. It is also unsuitable for those who do not own the parent progressive press and powered collator, who would be better served by a standalone manual reloading die set.
