How does the L4A Fiber Dot reticle perform for fast close-range shooting compared to standard etched illumination?

The L4A Fiber Dot reticle uses high-intensity light directed straight into the centre dot, creating a daylight-bright point that functions like a true red dot sight at 1x magnification. This allows you to keep both eyes open for rapid target acquisition during driven hunts or dynamic shooting. It features 11 brightness settings controlled via a stepped rheostat powered by an included CR2032 battery.

What is the effective engagement range for this scope given its fixed parallax setting?

The Hawke Vantage 30 WA FD IR 1-8x24 features a fixed parallax set at 91 metres (100 yards), making it optimised for rapid target engagements from close quarters out to approximately 300 metres. For precision long-range target shooting past this threshold, an optic with side-focus parallax adjustment and higher magnification is recommended over this low-power variable scope.

Will this scope handle heavy recoil on Australian hunting calibres, and is it suitable for low-light bush conditions?

Yes, the 30 mm mono-tube chassis is shockproof, nitrogen-purged, waterproof, and explicitly all-calibre rated by Hawke to withstand heavy hunting loads. While its 468 g weight and compact 24 mm objective lens make it exceptionally handy for multi-day carry in the bush, keep in mind that the exit pupil drops to 3.0 mm at 8x magnification, meaning larger 50 mm or 56 mm objectives are better suited for deep dusk or night shooting.

What mounting hardware do I need to attach this scope to my rifle?

This optic features a standard 30 mm main tube diameter, making it compatible with a wide range of commercially available 30 mm rings and one-piece LPVO cantilever mounts commonly used on Australian sporting and hunting platforms. The package also includes a removable throw lever, lens covers, lens cloth, and the CR2032 battery so you can set it up straight out of the box.

LPVO Rifle Scope - Hawke 14510 Vantage 30

The Hawke Vantage 30 WA FD IR 1-8x24 (Model: 14510) is a low-power variable optic (LPVO) engineered for fast target acquisition at close quarters and precision engagement at medium ranges. Built around the System H2 optical design with 11-layer fully multi-coated lenses, it features a 30 mm mono-tube chassis and an L4A Fiber Dot reticle in the second focal plane. The fiber-optic centre dot delivers daylight-bright illumination across 11 stepped rheostat brightness settings, functioning similarly to a red dot at 1x magnification for both-eyes-open snap shooting. Capped, low-profile fingertip turrets provide 1/2 MOA click adjustments with a wide 210 MOA total adjustment range for elevation and windage.

Key Features

Fiber Dot Reticle: The L4A FD reticle projects high-intensity light through a fiber-optic system for daylight-bright visibility, powered by a single CR2032 battery.
Wide-Angle Field of View: Delivers a wide field of view ranging from 38.3 m to 4.8 m at 100 m (115 to 14.4 ft at 100 yds) to maintain situational awareness.
Robust Chassis Design: Features a nitrogen-purged 30 mm mono-tube chassis that is shockproof, waterproof, fog proof, and rated for all calibres.
Fast Magnification Changes: Includes a removable zoom throw lever to quickly adjust across the 1–8x magnification range.

Specifications

Magnification: 1–8x
Objective Lens Diameter: 24 mm
Main Tube Diameter: 30 mm mono-tube
Focal Plane: Second Focal Plane (SFP)
Reticle: L4A Fiber Dot (11 brightness levels)
Eye Relief: 97 mm (3.8 in)
Exit Pupil: 24 mm to 3 mm
Field of View: 38.3 m – 4.8 m @ 100 m (21.7° – 2.7°)
Adjustment Click Value: 1/2 MOA
Total Adjustment Range: 210 MOA (Elevation and Windage)
Parallax: Fixed at 91 m (100 yds)

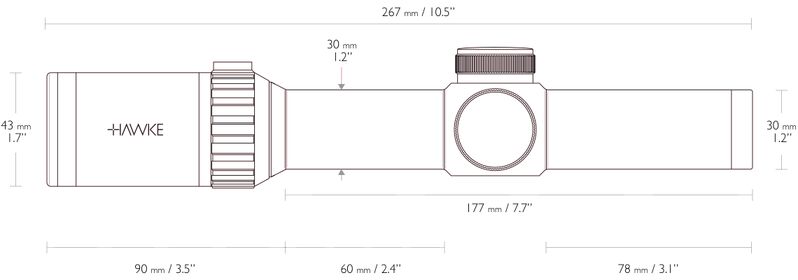

Length: 267 mm (10.5 in)
Weight: 468 g (16.5 oz)
Power Source: 1x CR2032 battery

Who is the Hawke Vantage 30 WA FD IR 1-8x24 for?

Driven hunt and stalking hunters — requires a low-power variable rifle scope with true 1x capability and up to 8x magnification to transition smoothly between fast, close-range snaps and deliberate medium-range shots.
Dynamic sporting carbine shooters — relies on a compact 468 g low-power variable optic built on a 30 mm mono-tube chassis with 1/2 MOA adjustments for rapid handling on sporting platforms.
Close-quarters pest controllers — benefits from a 24 mm objective lens paired with a wide field of view of 38.3 m at 100 m to quickly identify and track moving pests at close range.

Less suitable for: Precision long-range target shooting past 300 metres, where an optic with higher magnification and side-focus parallax adjustment is better suited than a fixed 91 m parallax system, or deep dusk and night hunting at maximum magnification, where scopes with larger 50 mm or 56 mm objective lenses provide better light transmission than a 24 mm lens.

SKU	HWK39720LP
Model #	14510
Brand	Hawke
Shipping Weight	1.0000kg
