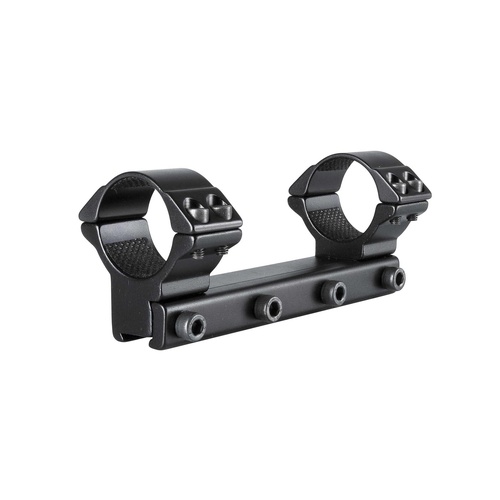

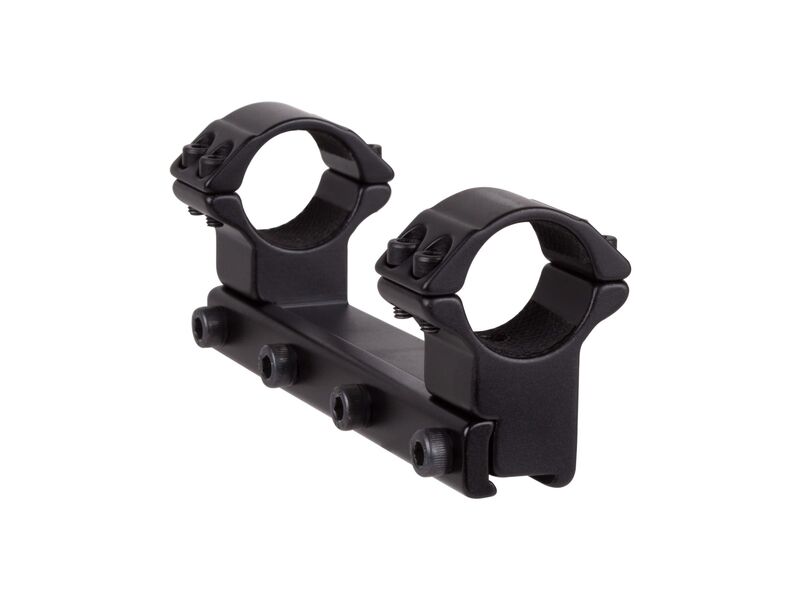

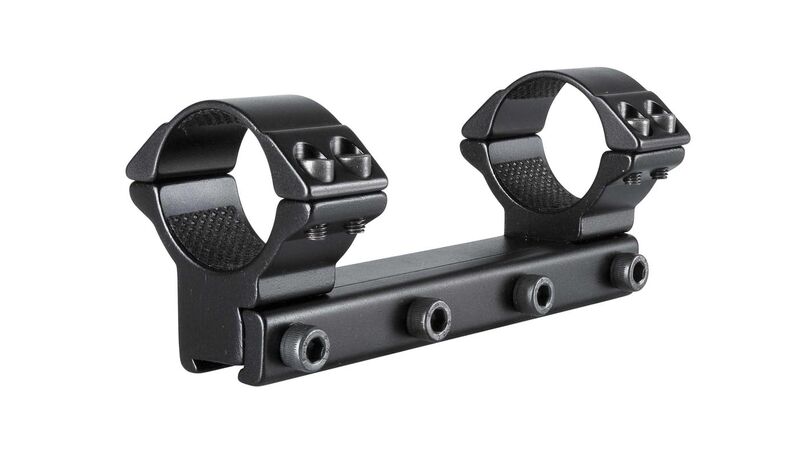

The Hawke Match Mount 30mm 1 Piece 9–11mm High (Model 22111) is a single-piece bridge ring mount designed to secure 30 mm maintube riflescopes to standard airgun and rimfire dovetails. Machined from high-grade aluminium with an anodised matte black finish, the one-piece body eliminates ring-alignment errors while providing a rigid optical platform. It features internal cushion tape to protect scope tubes from crimping or scratching, four base-clamping hex screws to resist movement under recoil, and a retractable recoil stop pin designed to counter the bidirectional snap of heavy spring-piston or gas-ram platforms.

Key Features

• One-Piece Bridge Construction: Machined 120 mm aluminium base ensures front and rear ring alignment without requiring separate lapping.
• Internal Cushion Tape: Protective internal lining safeguards 30 mm scope tubes against marring, scratching, and crimping under clamping pressure.
• Recoil Retention System: Four base hex screws paired with a retractable steel recoil stop pin prevent scope creep under heavy airgun recoil.
• Reversible Dovetail Clamp: Secures firmly to standard 9–11 mm dovetail grooves as well as 3/8" rails.
• High-Profile Clearance: Provides 50 mm of total height to accommodate riflescopes with larger objective bells while avoiding barrel contact.

Specifications

• Ring Diameter: 30 mm
• Rail Compatibility: 9–11 mm and 3/8" dovetail
• Height Profile: High (50 mm / 2.0 in total height)
• Overall Length: 120 mm (4.7 in)
• Total Weight: 173 g (6.1 oz)
• Ring Screws: Double hex screws per ring (3 mm hex, M4x0.7 thread)
• Base Screws: Quad hex screws (4 mm hex, M5x0.8 thread)
• Recoil Pin: Built-in retractable stop pin
• Base Cant: 0 MOA
• Material: Anodised aluminium, matte black

Who is the Hawke Match Mount 30mm 1-Piece High for?

• Spring-piston and gas-ram air rifle shooters — Secures a 30 mm riflescope against violent, bi-directional recoil using a 173 g single-piece aluminium body supported by four base hex screws and a built-in retractable recoil stop pin.
• Rimfire rifle shooters (.22 LR, .17 HMR, .22 WMR) — Clamps directly onto 9–11 mm and 3/8" receiver dovetail grooves to provide a rigid, non-slip 0 MOA optical platform without requiring separate rail adapters.
• Hunters and target shooters using large-objective optics — Provides a 50 mm total mount height to ensure proper barrel and receiver clearance for 30 mm tube scopes carrying large 50 mm to 56 mm objective lenses.

Less suitable for: Firearms equipped with Weaver or MIL-STD-1913 Picatinny rails (requires a dedicated Picatinny 1-piece cross-bolt mount), rifles running compact 32 mm to 40 mm objective scopes where a 50 mm total height disrupts natural cheek weld (requires low or medium-profile dovetail rings), or extreme long-range setups needing built-in base cant (requires a 25 MOA or 30 MOA elevation-adjustable mount).
