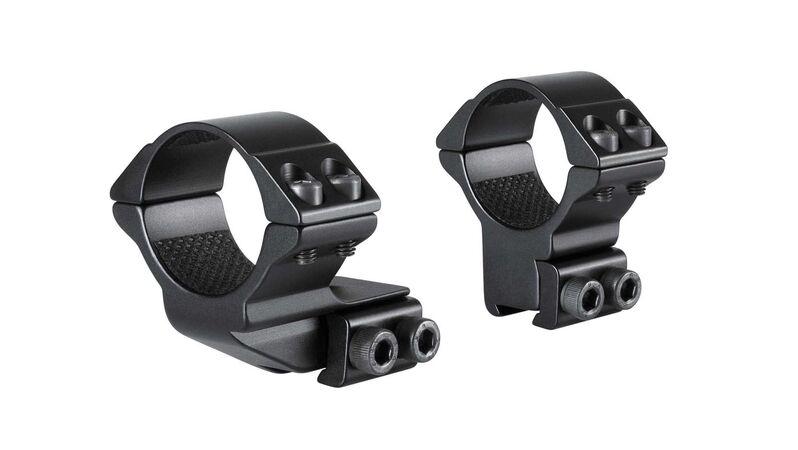

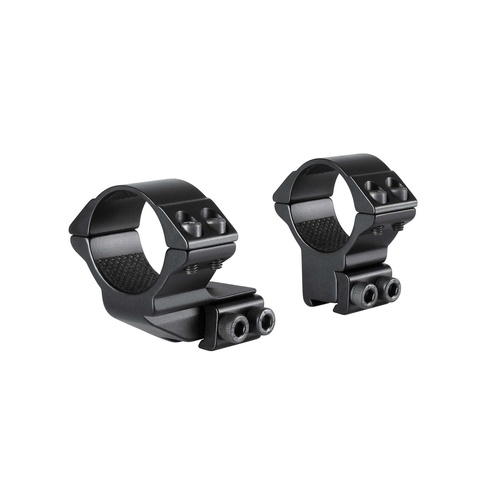

The Hawke Reach Forward Mount 9-11mm 1" High (Model 22122) is a two-piece aluminium scope mounting system designed to secure 30mm rifle scopes onto air rifles and rimfire platforms. Featuring one cantilever ring and one standard ring, this mounting set provides 25mm (1 inch) of forward extension to achieve correct eye relief on compact actions or to clear large scope turrets and illumination housings. Built with high mount clearance, it accommodates large objective lenses up to 56mm while clamping directly to standard 9–11mm and 3/8" dovetail rails via a reversible clamp plate.

Key Features

• 25mm Cantilever Offset: Extends the front mounting position forward by 25mm (1") to optimize eye relief on short-action mounting surfaces.
• Reversible Dovetail Clamp: Secures firmly to both 9–11mm airgun dovetails and 3/8" rimfire receiver rails.
• Recoil Stop Pin: Includes a retractable steel arrestor pin to eliminate forward and backward scope movement on spring-piston rifles.
• Internal Cushion Tape: Protective internal lining prevents tube marring, scope body scratching, and crimping under clamping pressure.
• Secure Cap Fasteners: Double hex screws per ring cap ensure uniform clamping tension around 30mm scope tubes.
• Durable Construction: Machined from high-grade aluminium with a matte black anodised finish, weighing approximately 113.4g.

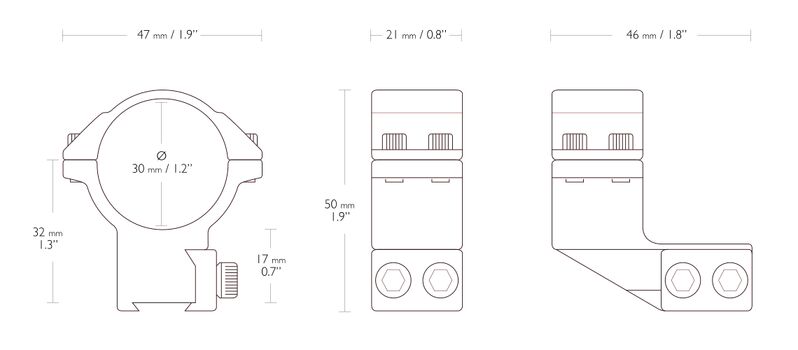

Product Specifications

• Tube Diameter: 30 mm
• Mount Height: High (fits objective lenses up to 56 mm)
• Rail Interface: 9–11 mm Dovetail / 3/8" Rimfire
• Cantilever Extension: 25 mm (1 inch)
• Configuration: 2-piece ring set (1 extension ring, 1 standard ring)
• Ring Fasteners: Double hex screws per cap
• Material: Anodised aluminium
• Weight: 113.4 g (4.0 oz)
• Model Number: 22122

Who is the Hawke Reach Forward Mount 9-11mm 1" High for?

• Pest control hunters using airguns — needs a rimfire airgun scope ring with a built-in recoil arrestor pin and high-clearance profile to secure 30mm optics and up to 56mm objective lenses against harsh bidirectional spring-piston recoil.
• Rimfire target shooters — requires 25mm of cantilever reach to establish proper eye relief on short-action 9–11mm dovetail receivers without obstructing large centre saddles or side-focus wheels.

Less suitable for: Rifles fitted with 20mm Weaver or MIL-STD-1913 Picatinny bases (requires cross-bolt Picatinny rings), optics with 1-inch (25.4mm) or 34mm main tubes, and heavy-recoil centrefire calibres such as .308 Win (requires steel or cross-bolt Picatinny tactical mounts).
