Will the Hawke Steel 1" Low With Lever (Model 23010) fit my 30 mm scope tube?

No, these rings are strictly engineered for 1-inch (25.4 mm) scope main tubes. If you are mounting an optic with a 30 mm or 34 mm tube, you will need to select a different ring size such as the Hawke 23015 for 30 mm tubes.

Are these mounts suitable for attachment to standard 9-11 mm airgun dovetail rails?

No, the Model 23010 features a base clamp designed specifically for standard Weaver and Picatinny cross-slot rails. To use these rings on a 9-11 mm airgun or rimfire dovetail, you would first need to install an aftermarket adapter rail.

What objective lens size can I clear with the Low profile version of these steel rings?

The Low profile rings provide a saddle clearance of approximately 4.5 mm and an overall height of 37 mm, making them ideal for scopes with objective lenses from 20 mm to 32 mm. If you are running a larger objective lens of 44 mm, 50 mm, or 56 mm, you will need to step up to a Medium or High profile mount to prevent the scope bell from contacting your rifle barrel.

Do these mechanical steel ring mounts require any Australian electrical or regulatory compliance certifications like SAA or RCM?

No, because the Hawke Model 23010 is a purely mechanical optical mounting accessory containing zero electronics, batteries, or mains connections, Australian 240V compatibility, plug standards, and SAA/RCM regulatory electrical certifications do not apply.

1 Inch Scope Rings - Hawke 23010

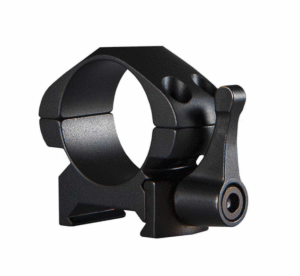

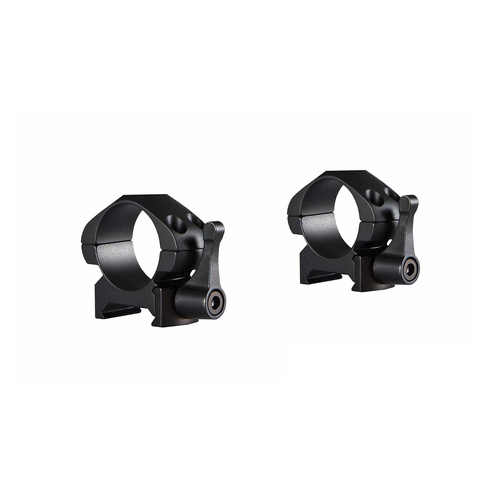

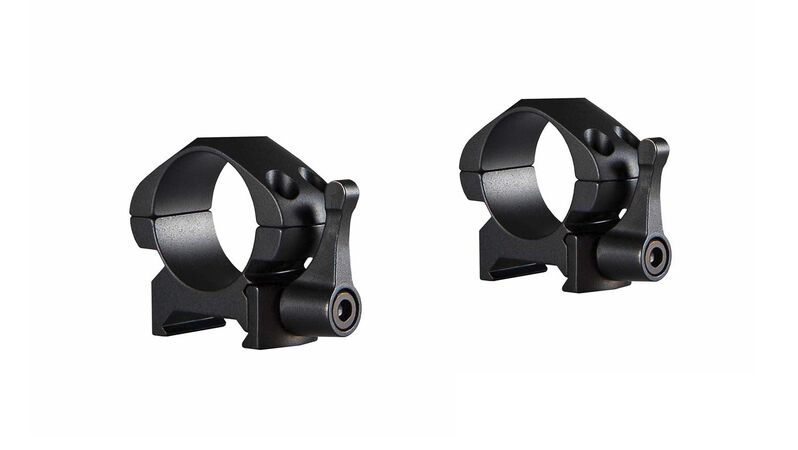

The Hawke Precision Steel Ring Mounts 1" 2 Piece Weaver Low – Lever (Model 23010) is a two-piece solid steel mounting system engineered to secure 1-inch (25.4 mm) riflescopes to Weaver and Picatinny rails. Featuring a low profile with a total height of 1.5 in (37 mm) and a saddle clearance of approximately 4.5 mm, this mount sets optics close to the bore to support a natural cheek weld. It incorporates a quick-release base lever mechanism for tool-free removal and installation, alongside double Torx cap screws per ring to maintain uniform clamping pressure under centerfire recoil.

Key Features

Solid Steel Construction: Machined from solid high-grade steel to resist thermal expansion and maintain zero across heavy-recoil firearm platforms.
Quick-Release Base Levers: Employs an 8-32 thread lever system that enables fast, tool-free detachment and reattachment on standard rails.
Double Torx Ring Caps: Uses dual T15 Torx screws (6-48 thread) on each ring cap to evenly distribute torque around the 1-inch scope tube without crushing.
Weaver and Picatinny Compatibility: Cross-slot engagement provides secure recoil-resistant locking onto both Weaver and MIL-STD 1913 Picatinny rail profiles.

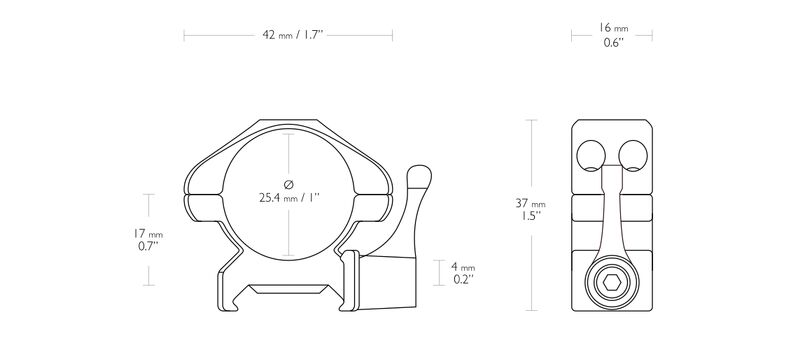

Product Specifications

Ring Diameter: 1 inch (25.4 mm)
Profile Height: Low
Total Height: 1.5 in (37 mm)
Saddle Clearance (Base to Ring Bottom): Approx. 4.5 mm
Configuration: 2-piece set
Weight: 4.9 oz (138 g)
Material: Solid high-grade steel
Rail Interface: Weaver and Picatinny rails
Cap Fasteners: Double Torx screws per ring (T15, 6-48 thread)
Base Fasteners: Quick-release lever clamp (8-32 thread)

Who is the Hawke Steel 1" Low With Lever for?

Centerfire hunters using compact optics — Mounts 1-inch (25.4 mm) tube riflescopes with 20 mm to 32 mm objective lenses down to an approximate 4.5 mm saddle clearance for a low optical axis on hunting rifles.
Shooters requiring rapid field modularity — Provides tool-free removal and reattachment across Weaver or Picatinny bases using a 4.9 oz (138 g) steel 1-inch low scope ring mount with quick-release levers.

Less suitable for: Riflescopes with 44 mm, 50 mm, or 56 mm objective lenses that require a Medium or High profile scope mount for barrel clearance, optics with 30 mm or 34 mm main tubes that require larger diameter rings, or firearm platforms with 9–11 mm dovetail rails that require a dovetail-to-Picatinny adapter rail.

SKU	HWK39782LP
Model #	23010
Brand	Hawke
Shipping Weight	1.0000kg
