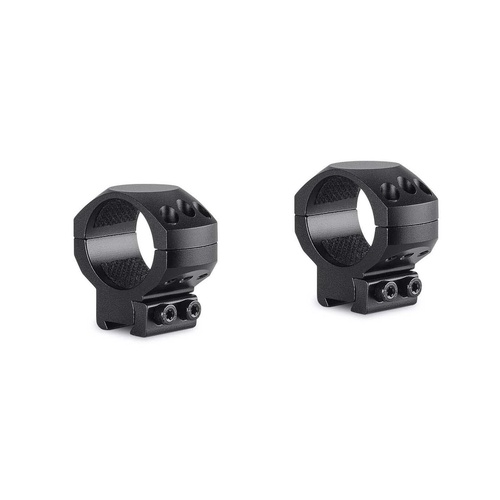

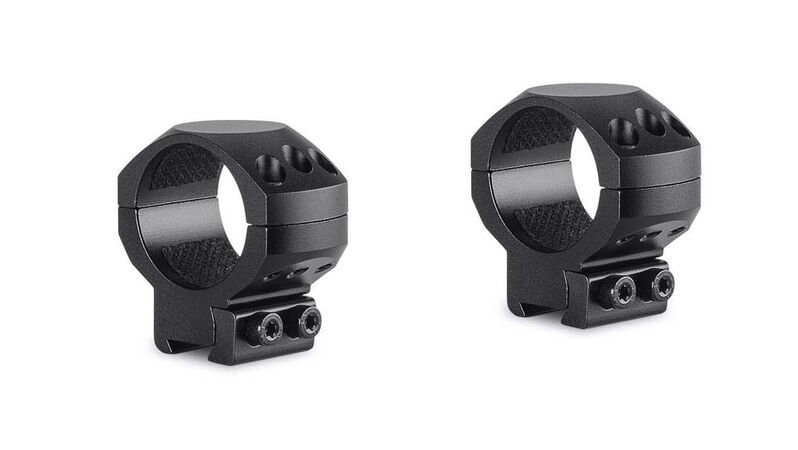

The Hawke Tactical Ring Mounts 30mm 2 Piece 9–11mm Medium (Model 24106) provide a secure optical mounting platform designed for airguns and rimfire rifles. Engineered from high-grade aluminium with a matte black anodised finish, these 2-piece scope rings secure 30 mm tube optics to 9–11 mm dovetail receiver rails. The rings utilise a medium-profile build with an overall height of 46 mm, offering barrel clearance for optics with objective lenses up to 44 mm while maintaining a combined weight of 123 g.

Key Features

• Triple Torx Fastening: Features three T15 Torx screws per side on each ring cap (six per ring, twelve total) using 6-32 threads, delivering uniform clamping pressure to prevent optic shifting.
• Internal Cushion Tape: Synthetic internal tape cushions the riflescope body, preventing marring, surface scratches, and tube crimping during installation and recoil.
• Retractable Recoil Stop Pin: Built into the base to anchor directly into receiver recoil holes, resisting bidirectional recoil from magnum spring-piston airguns and rimfire calibres.
• Dual Base Clamp Screws: Features double T15 Torx screws (M4×0.7 thread size) at each rail clamp for rigid retention along 9–11 mm dovetail grooves.
• Modular Cap Compatibility: Accepts Hawke 30 mm Triple Screw Picatinny Ring Caps to allow secondary accessory mounting directly above the scope tube.

Specifications

• Tube Diameter: 30 mm
• Rail Interface: 9–11 mm Dovetail

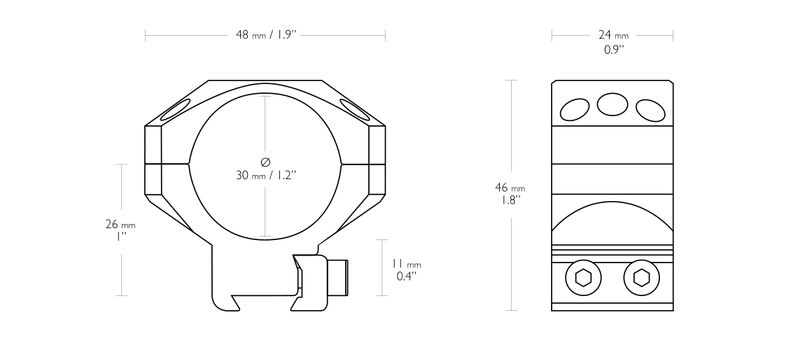

• Mount Height: Medium (46 mm overall height)
• Total Weight: 123 g (4.3 oz)
• Ring Cap Fasteners: Triple Torx T15 screws (6-32 thread)
• Base Clamp Fasteners: Double Torx T15 screws (M4×0.7 thread)
• Material: High-grade anodised aluminium
• Configuration: 2-piece ring set

Who is the Hawke Tactical 9-11mm 30mm Medium for?

• Small-game hunters using rimfire rifles — Mounts a 30 mm tube optic to standard 9–11 mm dovetail receivers with a 46 mm overall height that maintains a low-profile cheek weld on .22 LR, .17 HMR, and .22 WMR platforms without adding excessive bulk at 123 g.
• Pest control shooters using air rifles — Delivers heavy-duty clamping via triple Torx cap screws and a built-in retractable recoil stop pin on this 9-11mm dovetail scope ring set to withstand the harsh bidirectional recoil of spring-piston and gas-ram airguns while securing 30 mm main tubes.

Less suitable for: Rifles equipped with Weaver or Picatinny base rails, which require dedicated Weaver/Picatinny cross-slot rings, or riflescopes with large 50–56 mm objective lenses that require High (Model 24107) or Extra High (Model 24108) dovetail mounts for proper barrel clearance.
