Will the Hawke Tactical 30mm High rings fit standard Picatinny or Weaver rails on my rifle?

No, these rings feature a 9-11mm dovetail mounting interface with a reversible clamping side plate and are strictly incompatible with standard Weaver or MIL-STD-1913 Picatinny rails. If you are mounting to a Picatinny rail, you will need a separate Picatinny-compatible model instead.

What size objective lens scopes can I comfortably clear using the 32mm height profile of the Model 24107?

The 32mm height from the base to the ring centre is specifically optimised to accommodate 30mm riflescopes with large objective bells up to 56mm, such as the Hawke Sidewinder 6-24x56 FFP. This ensures sufficient clearance over standard barrels and shroud systems. While smaller objective scopes like 40mm models can be mounted, shooters wanting a lower cheek weld may prefer a lower profile.

How do these rings handle the severe bi-directional recoil generated by high-power spring-piston air rifles?

The Model 24107 is built for heavy recoil systems using an integrated retractable recoil stop pin and a robust triple Torx screw per ring cap architecture (six screws total per ring). This design delivers exceptional clamping pressure and prevents optic shift or slipping under the harsh shock of high-power spring-piston or gas-ram airguns, as well as standard rimfire calibres.

Do the ring mounts include any internal protection to prevent damage to expensive scope tubes during outback use?

Yes, each ring features internal cushion tape lining designed to eliminate metal-on-tube friction. This protective lining helps dampen vibration during rough bush transport across outback Australian terrain and prevents scratching or crimping to delicate scope tubes.

Scope Rings 30mm High - Hawke 24107

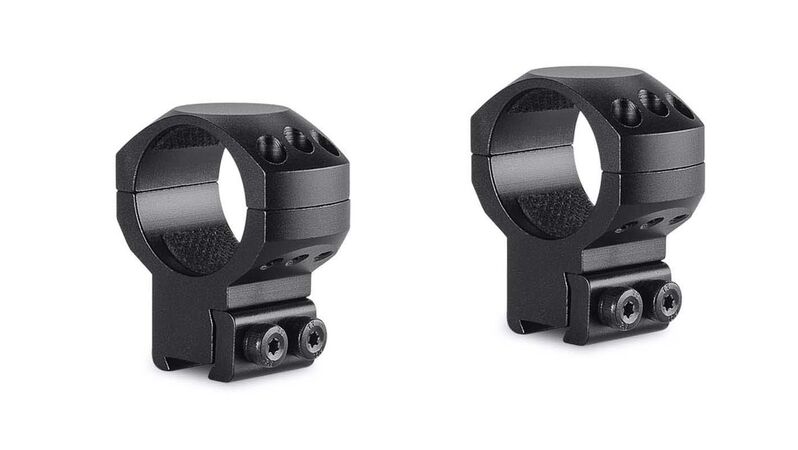

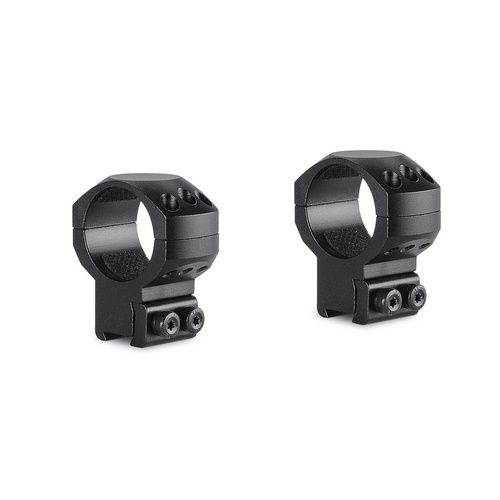

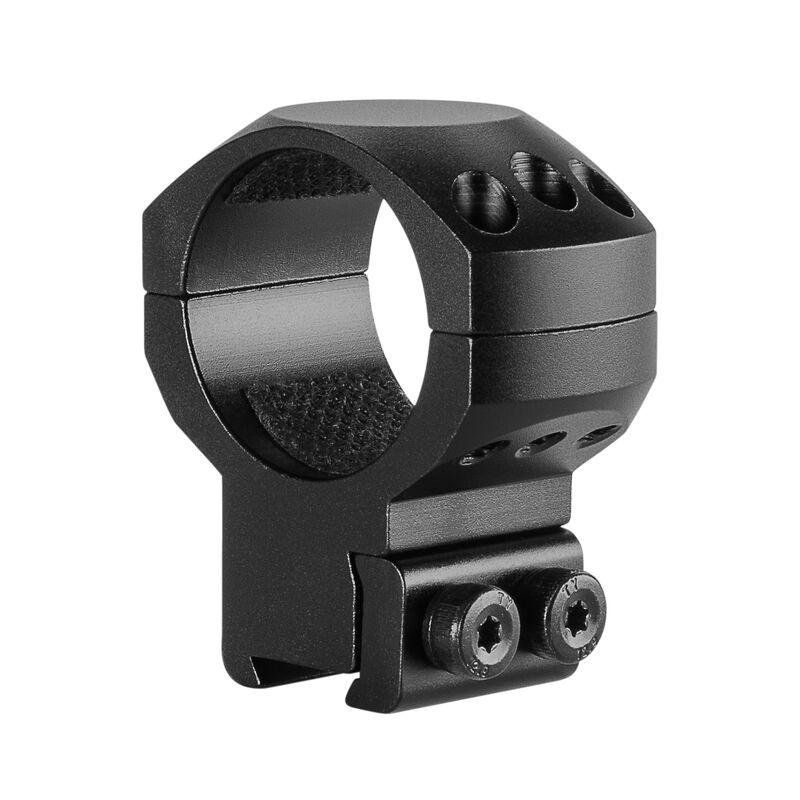

The Hawke Tactical 9–11mm 30mm High ring mounts (Model 24107) are precision-engineered two-piece mounting rings designed to secure 30mm main-tube riflescopes onto 9–11mm (3/8″) dovetail rails. Constructed from CNC-machined high-grade aluminium with a matte black anodised finish, these mounts feature a 32 mm (1.25″) profile height measured from the base to the centre of the ring. Designed with six Torx screws per ring cap (triple-screw architecture), an integrated recoil stop pin, and internal cushion tape, this mounting system provides reliable retention and optic protection against bi-directional recoil forces on rimfire and airgun platforms.

Key Features

Triple-Screw Clamping: Six Torx-head ring screws per cap deliver high clamping surface area to prevent scope movement under recoil.
32 mm High Clearance: Provides elevated clearance suitable for optics with large objective lenses, including 50mm to 56mm outer bell profiles.
Internal Cushion Tape: Protective internal lining dampens vibration and prevents tube scratches or crimping.
Dovetail Compatibility: Designed for standard 9–11mm (3/8″) dovetails with a reversible clamping side plate for broad rail fitment.
Recoil Stop Pin: Features a fitted recoil stop pin to eliminate mount slip on spring-piston and gas-ram systems.

Product Specifications

Tube Diameter: 30 mm

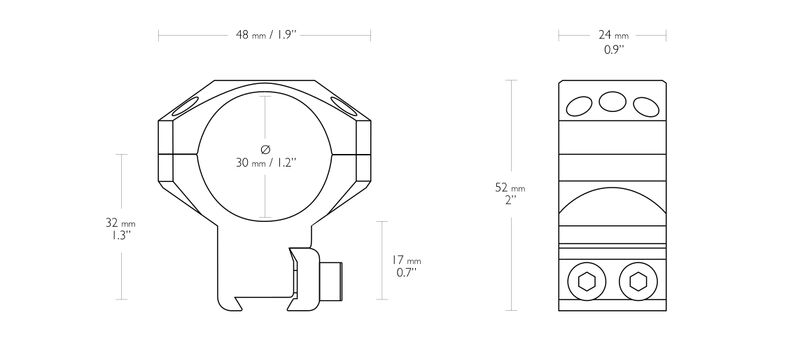

Profile Height: High (32 mm / 1.25″ from base of mount to ring centre)
Mounting Rail: 9–11mm Dovetail / 3/8″ Dovetail
Fasteners: Triple Torx ring screws (6 screws per ring cap) and hex base clamp screws
Material & Finish: CNC-machined aluminium, matte black anodised
Recoil Mechanism: Retractable / fitted recoil stop pin
Power Requirements: None (fully mechanical)

Who is the Hawke Tactical 9-11mm 30mm High for?

Pest controllers and small-game hunters using rimfire rifles — Mounts a 30 mm main-tube optic directly to factory 9–11mm dovetail receivers while the 32 mm base-to-centre height provides necessary barrel clearance for scopes sporting large 50mm to 56mm objective lenses.
Air rifle shooters operating high-power spring-piston or gas-ram systems — Utilises a 6-screw ring cap design combined with an integrated recoil stop pin and internal cushion tape to hold 30 mm dovetail scope rings securely against bi-directional shock without slipping along a 9–11mm rail.

Less suitable for: Rifles equipped with Weaver or MIL-STD-1913 Picatinny rails; shooters using these platforms require a dedicated Picatinny scope ring mount.

SKU	HWK40023LP
Model #	24107
Brand	Hawke
Shipping Weight	1.0000kg
