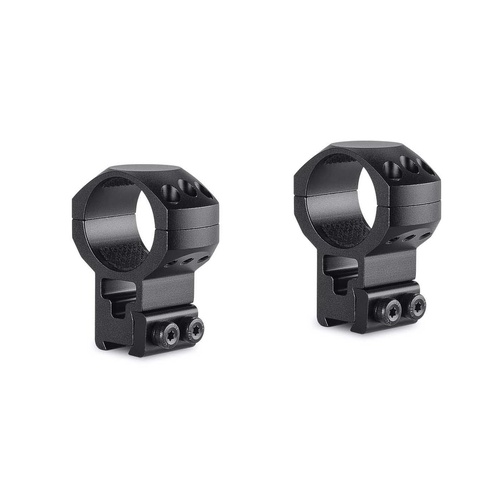

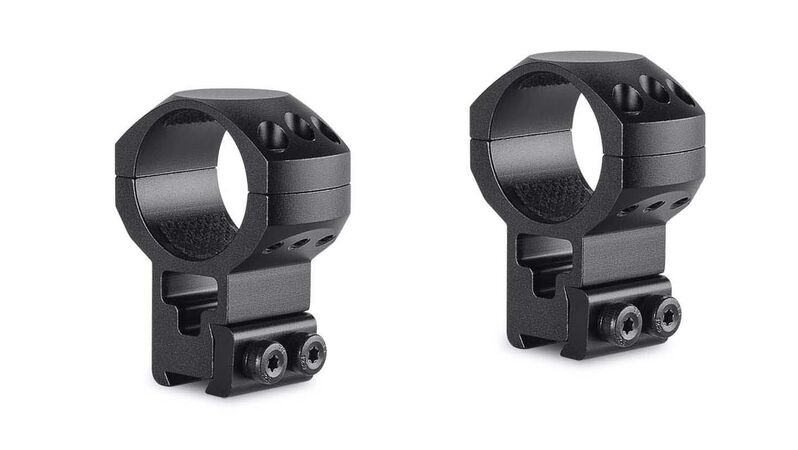

The Hawke Tactical Ring Mounts 30mm 2 Piece 9–11mm Extra High (Model 24108) is a dedicated two-piece mounting system engineered to secure 30 mm tube riflescopes to 9–11 mm dovetail and 3/8-inch rails. Constructed from high-grade anodised aluminium in a matte black finish, this mounting set features an Extra High profile of 58 mm (2.3 in) to provide barrel and action clearance for optics with large objective lenses, including 50 mm to 56 mm bell housings, sunshades, and adjustable objective assemblies. The system relies on triple Torx screws per ring cap for distributed clamping pressure, internal cushion tape to prevent scope tube marring, and a built-in retractable recoil stop pin to eliminate optic shift under rimfire and airgun recoil cycles.

Key Features

• Triple Torx Cap Screws: Utilises three Torx screws on each side of the ring cap (six top screws per ring) to provide expanded surface contact and uniform clamping torque across 30 mm optic bodies.
• Internal Cushion Tape: Internal lining protects the scope main tube from scratching, surface pinching, and crimping under full mounting torque.
• Retractable Recoil Stop Pin: Integrated into the base to lock directly into receiver arrest holes, arresting forward and rearward scope movement on spring-piston air rifles and rimfire actions.
• Reversible Rail Clamp: Dual hex-screw base clamp fits standard 9–11 mm and 3/8-inch receiver dovetails found on popular Australian rimfire and airgun platforms.

Specifications

• Configuration: 2-Piece Ring Mounts
• Ring Diameter (Tube Size): 30 mm
• Mount Profile: Extra High

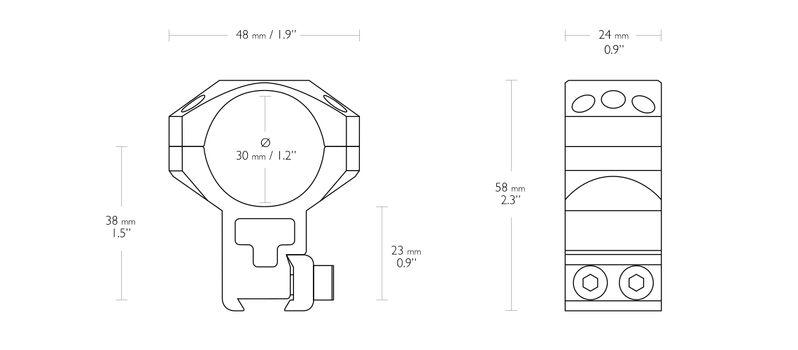

• Total Height: 58 mm (2.3 in)
• Weight: 138 g (4.9 oz)
• Rail Interface: 9–11 mm Dovetail (compatible with 3/8" rails)
• Cap Fasteners: Triple Torx screws per ring cap (6 screws per ring)
• Base Fasteners: Dual hex clamping screws per base
• Material: High-grade anodised aluminium
• Finish: Matte Black

Who is the Hawke Tactical 9-11mm 30mm Extra High for?

• Rimfire hunters mounting large-objective optics — provides an overall height of 58 mm (2.3 in) to clear 50 mm and larger objective lenses or wide parallax bells when fitting 30 mm tube riflescopes to 9–11 mm receiver dovetails.
• Airgun shooters managing spring-piston recoil — secures 30 mm scopes against bi-directional recoil using a built-in retractable recoil stop pin and a 138 g (4.9 oz) aluminium 2-piece dovetail ring assembly clamped with six cap screws per ring.

Less suitable for: Firearm platforms equipped with MIL-STD-1913 Picatinny or Weaver-style cross-slot rails (requires a cross-bolt Picatinny/Weaver ring mount) or riflescopes featuring 1-inch (25.4 mm) or 34 mm main tubes (requires a dedicated 1-inch or 34 mm mounting system).
