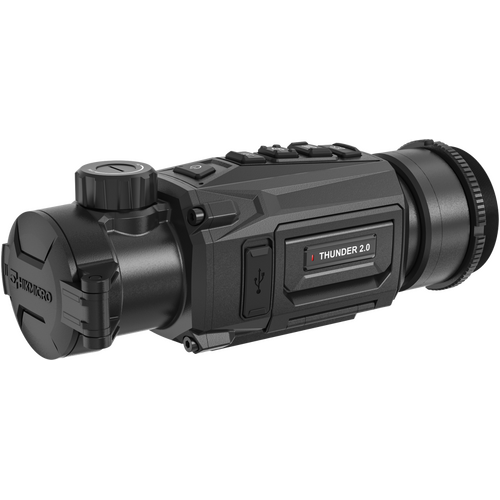

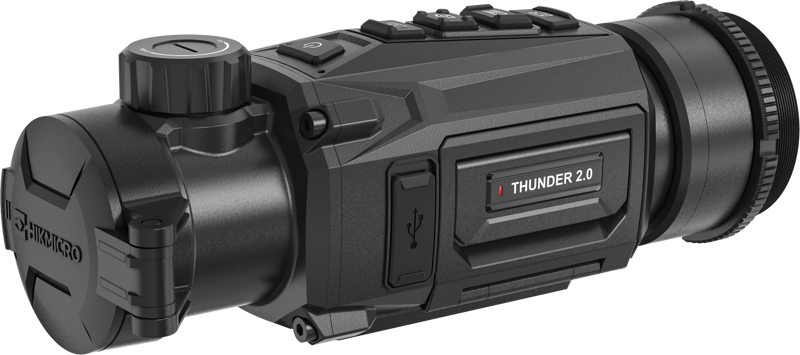

The TQ35CR V2.0 THUNDER 35mm Clip-on Thermal Imager is engineered for superior performance in detecting and identifying targets with high thermal sensitivity (NETD<20mK). Its advanced 640x512 sensor with a 12μm pixel pitch delivers sharp, detailed thermal imagery, even in challenging environments with minimal temperature variation. The newly designed focus knob allows for precise and comfortable adjustments, enhancing usability in the field. With a 35mm F1.0 lens and a detection range of up to 1800 meters, this thermal imager is ideal for long-range surveillance and hunting. The TQ35CR V2.0 is a versatile tool, perfect for converting your optical scope into a thermal imaging device without compromising performance.


KEY FEATURES

  • Sensor Resolution: 640x512
  • Pixel Pitch: 12μm
  • Thermal Sensitivity (NETD): <20mK (25°C, F#=1.0)
  • Lens Size: 35mm, F1.0
  • Detection Range: 1800m
  • Field of View: 12.5° x 10.0° / 21.9m x 17.6m at 100m
  • Frame Rate: 50Hz
  • Wavelength Range: 8μm to 14μm

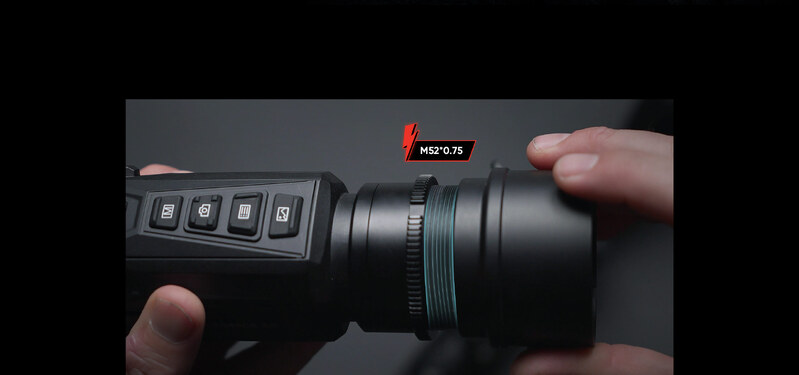

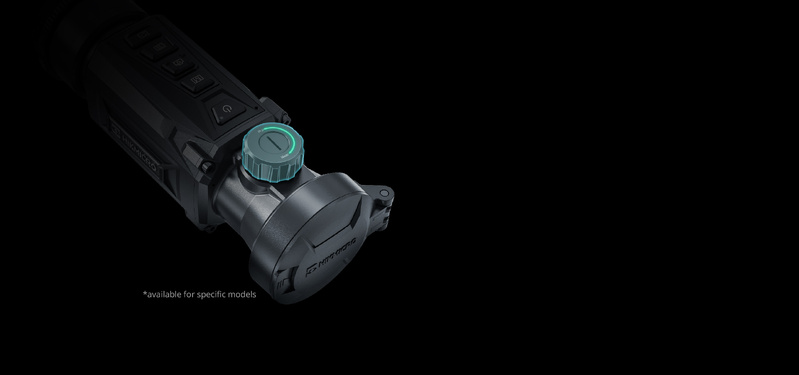

  • Focus System: Focus Knob, Focus Ring
  • Imaging Technology: Uncooled Focal Plane Arrays
SKU HI126402LP
Model # TQ35CR 2.0
Brand Hikmicro
Shipping Weight 1.2000kg
