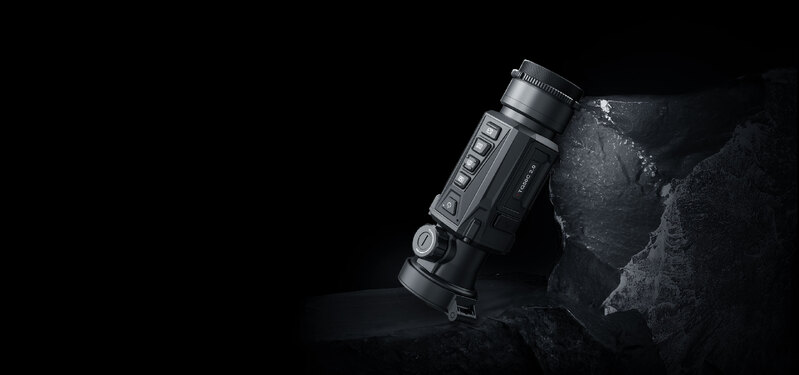

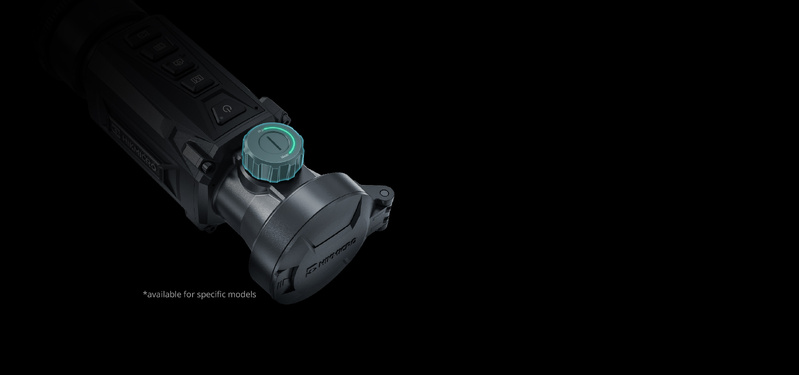

The TQ50CR V2.0 THUNDER 50mm Clip-on Thermal Imager is a high-performance thermal imaging device designed to deliver exceptional clarity and precise detail recognition. Equipped with a powerful 640x512 sensor and a 12μm pixel pitch, this clip-on provides ultra-clear images with impressive identification capabilities, even in the slightest temperature differences, thanks to its high thermal sensitivity (NETD <20mK). The newly designed focus knob enhances convenience by allowing for smooth and precise adjustments with minimal effort, ensuring a natural hand posture during use. The 50mm F1.0 lens provides long-range detection up to 2600m, making it ideal for hunting, surveillance, and tactical applications.

KEY FEATURES

Sensor Resolution: 640x512

Pixel Pitch: 12μm

Thermal Sensitivity (NETD): <20mK (25°C, F#=1.0)

Lens Size: 50mm, F1.0

Detection Range: 2600m

Field of View: 8.8° × 7.0° / 15.4m × 12.3m at 100m

Frame Rate: 50Hz

Wavelength Range: 8μm to 14μm

Focus System: Focus Knob, Focus Ring

Imaging Technology: Uncooled Focal Plane Arrays
