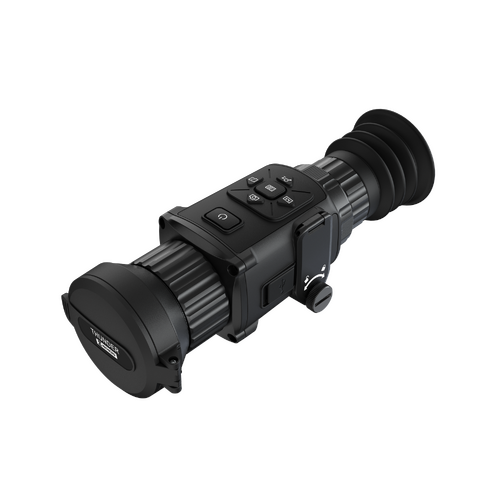

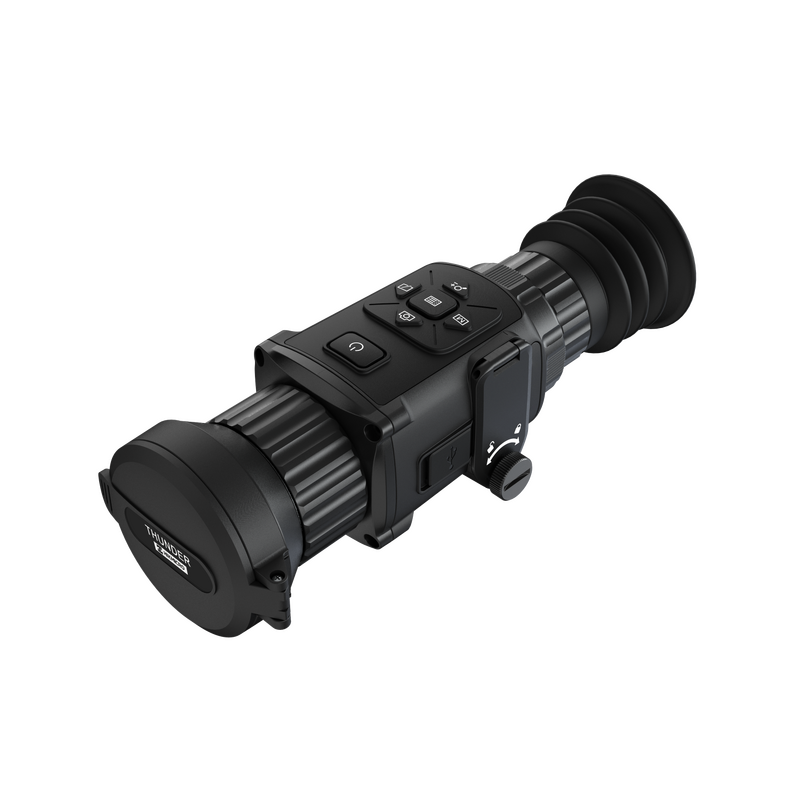

The TQ50-KIT THUNDER 50mm Thermal Imager is a cutting-edge device designed for high-performance thermal imaging with a resolution of 640x512 pixels. Utilizing advanced 12-micron uncooled focal plane arrays, this imager excels in delivering crisp, clear images, even in challenging environments. With a thermal sensitivity of less than 35 mK at 25 °C and an operating range of 8 μm to 14 μm, the TQ50-KIT enables precise detection of heat signatures from impressive distances—up to 2600 meters. Its 50mm lens offers exceptional detail and a field of view of 8.78° × 7.03°, making it an ideal choice for surveillance, wildlife observation, and tactical applications.

This thermal imager operates at a refresh rate of 50 Hz, ensuring smooth video output and real-time responsiveness, which is crucial for tracking moving targets. With a resolution that enhances target identification and a compact form factor for portability, the TQ50-KIT THUNDER is engineered for versatility and ease of use in a variety of settings.

KEY FEATURES

Resolution: 640 × 512

Refresh Rate: 50 Hz

Pixel Pitch: 12 μm

Spectral Range: 8 μm to 14 μm

Thermal Sensitivity: Less than 35 mK (25 °C, F#=1.0)

Objective Lens: 50 mm

Detection Range: 2600 m

Angular Resolution: 0.24 mrad

Field of View: 8.78 ° × 7.03 °
