What exact diameter is the Hornady 391930 mandrel and what calibre is it designed for?

The Hornady 391930 mandrel features a precision diameter of 0.336 inches (~8.53 mm) and is strictly constrained to .338 calibre rifle cases. It is engineered specifically to support popular long-range and ELR cartridges such as the .338 Lapua Magnum, .338 Norma Magnum, and .338 Winchester Magnum during neck turning operations.

Will this mandrel fit third-party neck turning tools from brands like Sinclair or PMA?

No, this mandrel is exclusively engineered to screw directly into the Hornady Lock-N-Load Neck Turn Tool chassis. It does not fit third-party neck turning tools without custom modifications, so you should ensure you are using the correct matching tool body.

Do I need any special preparation for my .338 brass before using this turning mandrel?

Yes, cases must be properly resized, neck-expanded (ideally using an expander mandrel about 0.0007 inches larger than the turning mandrel), deburred, and inside-neck lubricated prior to turning. This crucial preparation prevents friction galling, binding, and inconsistent wall thickness removal.

Are there any Australian electrical compliance or safety certifications required for this tool?

As the Hornady 391930 is a purely mechanical reloading component with no electrical parts or power requirements, mains power ratings, Australian plugs, and SAA or RCM electrical compliance certifications are not applicable. It can be freely purchased and used across Australia without firearms licensing restrictions.

How do I prevent heat build-up and maintain tight tolerances during extensive reloading sessions?

To prevent thermal expansion of the stainless steel mandrel during heavy batch processing in your reloading room, you should use low tool or drill RPM alongside light cutting passes of 0.001 to 0.002 inches per pass. Keeping the brass properly lubricated will also eliminate friction-induced heat build-up.

338 Neck Turning Mandrel - Hornady 391930

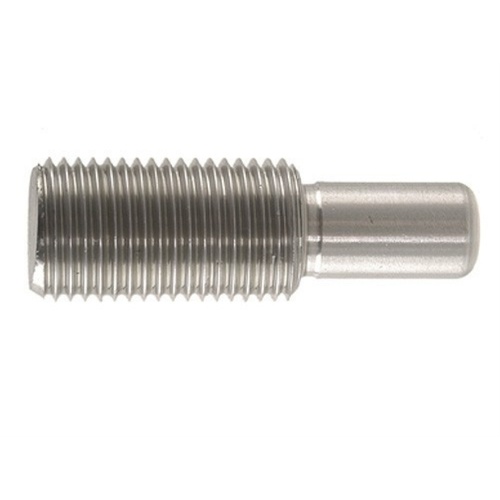

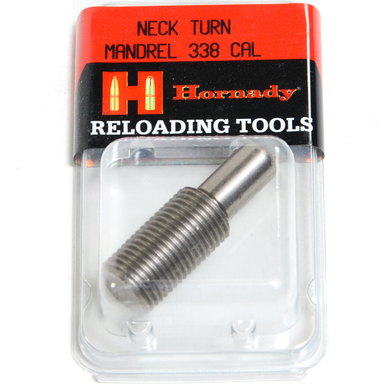

The Hornady Neck Turning Tool Mandrel .338 Caliber (MPN: 391930) is a dedicated reloading accessory designed to support the interior case neck during turning operations. Machined from stainless steel with a silver finish, this mechanical tool threads directly into the Hornady Lock-N-Load Neck Turn Tool frame. It maintains a precise mandrel diameter of 0.336 in (approximately 8.53 mm) to ensure a close slip fit inside expanded .338-calibre cartridge necks, allowing the cutter to remove high spots and achieve uniform wall thickness for reduced bullet runout.

Key Features

Internal Neck Support: Sized to an exact 0.336 in (8.53 mm) diameter to support the inside surface of .338-calibre cases during the turning cut.
Precision Wall Uniformity: Removes neck wall thickness variations to establish concentric bullet seating across match-grade brass.
Shoulder Stop Integration: Features an integrated shoulder stop setting that prevents the neck turning cutter from making contact with the case shoulder.
Durable Stainless Construction: Precision-machined from solid stainless steel to resist wear during repeated case preparation cycles.

Specifications

Brand: Hornady
Model / MPN: 391930
Calibre Compatibility: .338 calibre (8.6 mm)
Mandrel Diameter: 0.336 in / ~8.53 mm (nominal distributor target ~0.3355 in)
Material: Stainless steel
Packaged Dimensions: 50.8 × 19.1 × 95.3 mm (2.0 × 0.75 × 3.75 in)
Packaged Weight: Approximately 45 g (0.1 lb)
Tool Compatibility: Hornady Lock-N-Load Neck Turn Tool

Who is the Hornady 391930 Neck Turning Tool Mandrel For 338 Caliber Reloading for?

Long-range and ELR reloaders — seeking consistent neck tension and reduced runout on large-capacity .338 Lapua Magnum or .338 Norma Magnum cases will benefit from this neck turning mandrel's precision 0.336 in (8.53 mm) diameter, which provides the rigid internal support necessary to turn down high spots to an exact wall thickness.
Precision benchrest shooters — preparing uniform .338 Winchester Magnum or .338 Edge brass require this 45 g stainless steel neck turning tool mandrel to establish strict neck concentricity while preventing the cutting blade from encroaching past the neck-shoulder junction.

Less suitable for: Cartridge cases outside of .338 calibre (such as .30 cal, 7mm, or .375 cal cases), which require dedicated smaller or larger calibre-specific neck turning mandrels, or reloaders using third-party neck turning chassis that require brand-specific proprietary mandrel threads.

SKU	HN102588LP
Model #	391930
Brand	Hornady
Shipping Weight	0.0200kg
