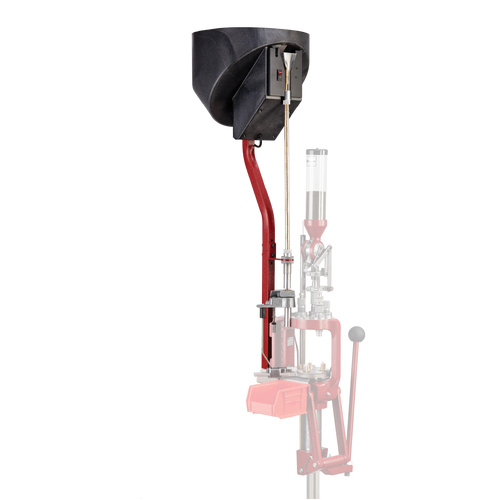

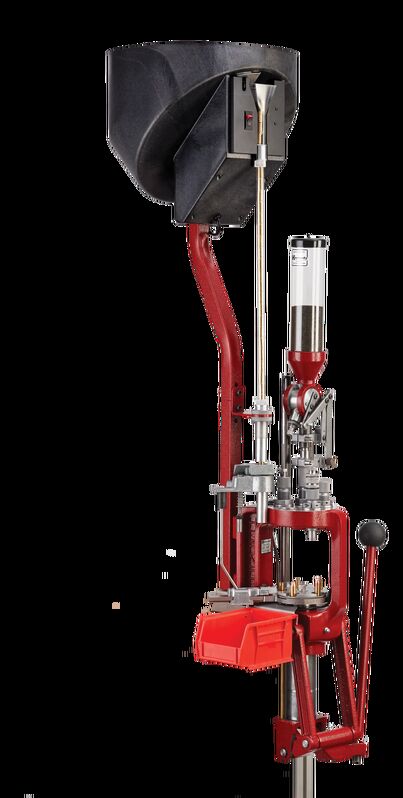

The Hornady Lock-N-Load Case Feeder Motor 220V automates the brass feeding and orientation process on progressive reloading presses. Engineered to run directly on standard 220V–240V AC (50 Hz) mains power without requiring step-down transformers, this high-torque electric drive continuously rotates the feeder bowl to deliver cases mouth-up and base-down directly into the press shuttle. Designed for direct bolt-on mounting to Hornady Lock-N-Load AP progressive presses with serial numbers 7000 and higher, the system sustains production rates exceeding 500 rounds per hour to streamline high-volume ammunition assembly.

Key Features

• High-Torque 220V–240V Drive: Powered by a dedicated 220V–240V AC, 50 Hz electric motor engineered to rotate feeder plates continuously under the weight of bulk brass without stalling.
• Automatic Case Orientation: Uses an extra-large hopper bowl and feed tube assembly that orientates cases base-down and delivers them directly to the indexing shuttle.
• Fail-Safe Shuttle Integration: Incorporates a slotted cam wire fixture and push-rod assembly to prevent brass damage and feed binding during press cycling.
• Fast Calibre Conversions: Includes 6 cartridge adaptors and V-blocks, enabling complete calibre changeovers in under 5 minutes.
• High-Speed Output: Sustains reloading throughput exceeding 500 rounds per hour when paired with progressive press dies.

Specifications

• Product Type: Progressive press case feeder assembly
• Power Supply: 220V–240V AC, 50 Hz electric motor
• Press Compatibility: Hornady Lock-N-Load AP presses with serial numbers 7000 and higher (presses below serial #7000 require a sub-plate conversion kit; legacy Projector presses are incompatible)
• Packed Shipping Weight: Approximately 7.92 kg
• Shipping Dimensions: Approximately 49.5 cm (H) × 40.6 cm (W) × 29.8 cm (L)
• Output Capacity: 500+ rounds per hour
• Calibre Adaptability: Compatible with all standard pistol and rifle calibres matching Hornady AP shell plates (feeder plates sold separately)

Who is the Hornady Lock-N-Load Case Feeder 220V for?

• High-volume competitive IPSC and USPSA shooters — need sustained loading rates exceeding 500 rounds per hour, powered by an integrated 220V–240V AC, 50 Hz electric motor that automates case insertion for thousands of rounds per month on this progressive press case feeder.
• Pest controllers and hunters — require bulk batch processing of handgun and rifle brass supported by a 7.92 kg direct-mount feeder assembly that integrates directly onto progressive press frames with serial numbers 7000 and higher.

Less suitable for: Precision, low-volume rifle loading producing under 50–100 rounds per session, where a manual single-stage reloading press setup provides greater direct control over individual case handling.
