Will these Hornady Lock-N-Load bushings fit my standard 7/8"-14 reloading dies?

Yes, these bushings feature an internal 7/8"-14 thread interface designed specifically to accommodate all standard reloading dies from major brands like Hornady, RCBS, Redding, and Lee. They allow you to rapidly twist your dies in and out of the press with a simple fractional turn.

Are these 44093 bushings compatible with non-Hornady reloading presses?

They are a direct drop-in fit for all Hornady Lock-N-Load presses, including the Classic single-stage and AP progressive models. They can also be used on competitor presses like RCBS or Redding only if the press features a removable 1-1/4"-12 threaded top adapter and is fitted with a Hornady Lock-N-Load conversion bushing.

Do I need to readjust my die settings every time I remove them from the press?

No, that is the primary benefit of the Lock-N-Load system. Once your die is dialed into position and locked securely into the bushing using a lock ring, your depth and crimp settings are permanently preserved for future reloading sessions.

Can I use these bushings with oversized magnum or .50 BMG dies?

No, these bushings are built exclusively for standard 7/8"-14 threaded dies and will not accommodate large-format or oversized magnum dies requiring 1-1/4"-12 or 1-1/2"-12 threads.

What maintenance is required to keep these solid steel bushings functioning smoothly on my bench?

Being solid machined steel with an integrated O-ring damper, they require very little upkeep. A light application of gun oil or rust preventative should be periodically applied to the exterior threads and lugs to prevent surface corrosion, especially in humid Australian garage or shed environments.

Are there any electrical compliance certifications or SAA/RCM approvals needed for this product in Australia?

No electrical compliance or SAA/RCM approvals are required. This Hornady 3-pack is a strictly mechanical handloading hardware accessory containing zero electrical components, meaning 240V regulations and plug standards do not apply.

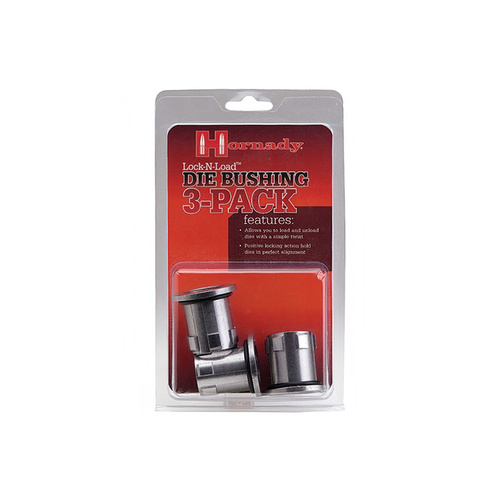

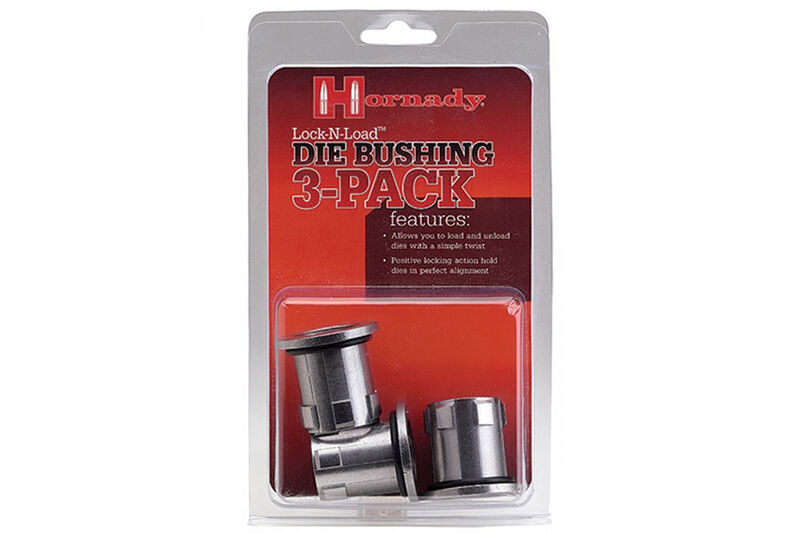

Reloading Die Bushings - Hornady 44093

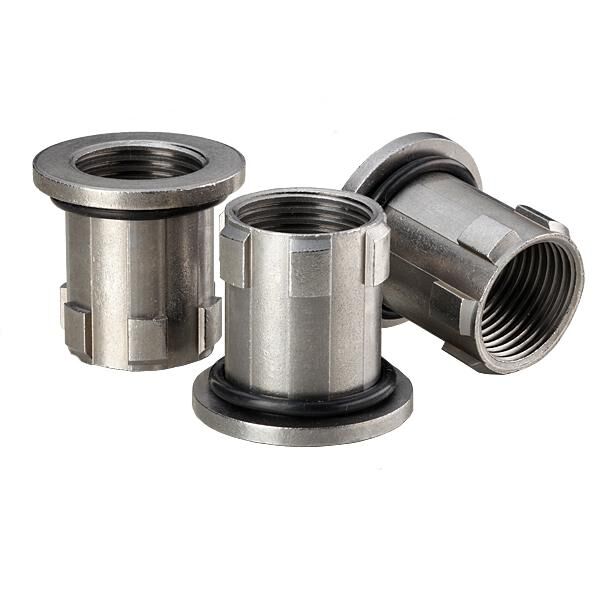

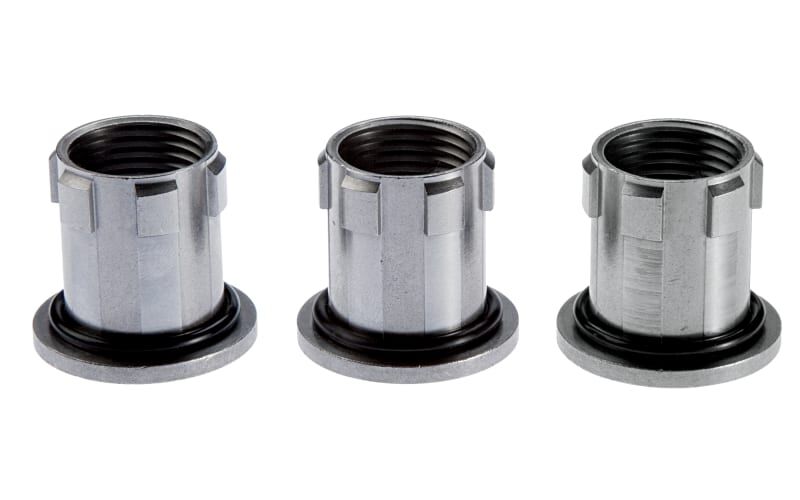

The Hornady Lock-N-Load Positive Locking Press Die Bushings 3 Pack (MPN 44093) allows handloaders to rapidly insert and remove standard 7/8"-14 threaded reloading dies using a simple twist-in, twist-out motion. Constructed from solid machined steel with an integrated rubber O-ring damper, each bushing incorporates Hornady's patented 6-lug interrupted-thread design. Once a die is adjusted and locked into place inside the bushing, its exact sizing, expanding, seating, or crimping settings are preserved permanently between die changes, eliminating the need to readjust dies during caliber conversions.

Key Features

Rapid Die Changeovers: Allows dies to be mounted into and removed from compatible presses with a quick fractional turn.
Setting Retention: Preserves locked die adjustments so handloaders do not need to reset lock rings when switching between operations.
6-Lug Positive Lockup: Machined steel lugs and a rubber O-ring damper provide positive alignment and concentricity under full press operating pressure.
Broad Die Compatibility: Accepts any standard 7/8"-14 threaded reloading die from standard metric and imperial die manufacturers.

Specifications

Quantity: 3 bushings per pack
Internal Thread: Standard 7/8"-14 reloading die thread
External Interface: 6-lug interrupted-thread twist-lock insert
Material: Machined steel with rubber O-ring
Operating Mode: Fully mechanical reloading press accessory

Who is the Hornady Lock-N-Load Die Bushings 3-Pack for?

Multi-caliber precision handloaders — requires standard 7/8"-14 reloading die threads across sizing, expanding, seating, and crimping dies to enable rapid changeovers without losing exact depth and shoulder adjustments between steps.
Hornady Lock-N-Load press owners — uses the 3 bushings per pack to outfit multiple dies simultaneously for direct twist-lock operation in single-stage and progressive press setups.

Less suitable for: Handloaders utilizing large-format magnum dies with 1-1/4"-12 or 1-1/2"-12 thread patterns, or those operating reloading presses with non-removable, fixed 7/8"-14 thread sockets; these setups require dedicated large-format presses or direct-threaded non-bushing single-stage presses.

SKU	HN102533LP
Model #	44093
Brand	Hornady
Shipping Weight	0.1000kg
