Will the Kleenbore A177CH chamber brush fit my standard cleaning rod?

Yes, the Kleenbore A177CH features standard American #8-32 male rifle threads, making it compatible with most standard cleaning rods. If you are using military-style rods with 8-36 threads or shotgun rods with 5/16-27 threads, you will simply need to use an appropriate thread adapter.

Can I use this chamber brush to clean the rifled bore of my .223 rifle?

No, this is a specialized dual-diameter stepped military-style chamber and locking-lug brush rather than a standard bore brush. For cleaning the rifled bore of your .223 Remington or 5.56mm barrel, you should switch to a standard continuous-diameter bronze bore brush such as the Kleenbore A177.

Is this chamber brush suitable for maintaining modern straight-pull .223 rifles popular in Australia?

Absolutely. While AR-15 semi-automatic platforms are heavily restricted in Australia, this brush is widely used by Australian Category B shooters and hunters maintaining modern straight-pull or pump-action .223 rifles that share AR-style barrel extensions and multi-lug bolt heads.

How do the materials on the A177CH handle heavy carbon fouling during outback maintenance?

The brush combines phosphor bronze bristles on a brass core wire to scrub the chamber walls with an oversized rear collar of heavy-duty stainless steel wire bristles specifically designed to scrape baked-on carbon from star chambers and barrel extension locking lug recesses. It is fully chemical-resistant and engineered for rigorous bench or field maintenance in tough outback conditions.

AR15 Chamber Brush - KleenBore A177CH

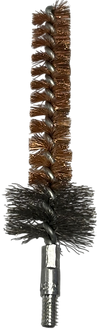

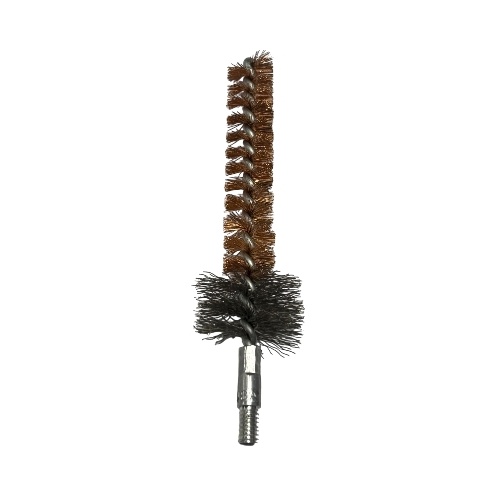

The KleenBore AR-15/M16 .223/5.56mm Military Style Chamber Brush (A177CH) is a dedicated firearm maintenance tool designed to clean .223 Remington and 5.56x45mm NATO rifle chambers and barrel extension assemblies. Built with a stepped military profile, this brush combines a forward phosphor bronze core with an oversized rear stainless steel wire skirt. This design allows users to simultaneously clear baked-on carbon fouling from the chamber body and scrub the tight locking lug recesses of multi-lug star chambers using standard cleaning rods with #8-32 male rifle threads.

Key Features

Dual-Diameter Military Geometry: Features a stepped profile engineered specifically to fit the dimensions of .223 Rem and 5.56x45mm NATO rifle chambers.
Phosphor Bronze Chamber Section: Deeply cleans powder and carbon fouling from the chamber walls without scratching or damaging precision chamber surfaces.
Stainless Steel Locking Lug Skirt: Utilises heavy-duty stainless steel wire bristles to scrape baked carbon from the barrel extension's star-chamber locking lugs.
Standard #8-32 Threading: Equipped with a brass coupling featuring standard American #8-32 male rifle threads for direct compatibility with standard cleaning rods and chamber handles.

Product Specifications

Product Type: AR-15 chamber brush
Model Number: A177CH
Calibre Compatibility: .223 Remington / 5.56x45mm NATO
Thread Pitch: Standard American #8-32 male rifle threads
Forward Bristle Material: Phosphor bronze on a brass core wire
Rear Skirt Material: Stainless steel wire
Connector Material: Brass
Operation: Non-powered, manual mechanical tool

Who is the Kleenbore AR-15/M16 .223/5.56mm Military Style Chamber Brush for?

High-volume tactical and competition AR-15 platform shooters — Needs a dedicated AR-15 chamber brush engineered with dual-action phosphor bronze and stainless steel bristles to clean heavy carbon deposits out of .223 Remington / 5.56x45mm NATO barrel extensions and locking lugs.
Australian Category B shooters maintaining straight-pull or pump-action .223 rifles — Requires an AR-15 chamber brush fitted with standard #8-32 male rifle threads to clean modern multi-lug bolt-action, pump-action, or straight-pull platforms chambered in .223 Remington / 5.56x45mm NATO.

Less suitable for: Cleaning rifled bores (switch to a standard continuous-diameter bronze bore brush), servicing larger AR-10 or .308 Winchester platforms (switch to a dedicated .308 chamber brush), or attaching directly to standard military 8-36 rods or shotgun 5/16-27 threaded rods (switch to a thread adapter).

SKU	KLB40982LP
Model #	A177CH
Brand	Kleenbore
Shipping Weight	1.0000kg
