The Lee Precision 90509 Carbide 3 Die Reloading Set For 9mm Luger is a dedicated mechanical reloading tool engineered to process 9mm Luger (9x19mm Parabellum) handgun and pistol-calibre carbine ammunition. Featuring industry-standard 7/8"-14 threads, the set mounts directly into standard single-stage, turret, or progressive reloading presses. It utilizes a solid contour-ground carbide sizing insert that resizes brass without requiring case lubrication, paired with dedicated expanding and seating dies for streamlined ammunition assembly.

Key Features

• Lube-Free Carbide Sizing: Features a solid carbide insert in the full-length sizing and decapping die that eliminates the need for case lubrication while preventing brass belt marks.
• Powder-Through Expansion: The expanding die bells the case mouth while allowing simultaneous manual or automated powder charging through the die body.
• Combined Seating and Crimping: The bullet seating die includes a built-in, adjustable crimp mechanism capable of applying slight taper to full roll crimps during projectile seating.

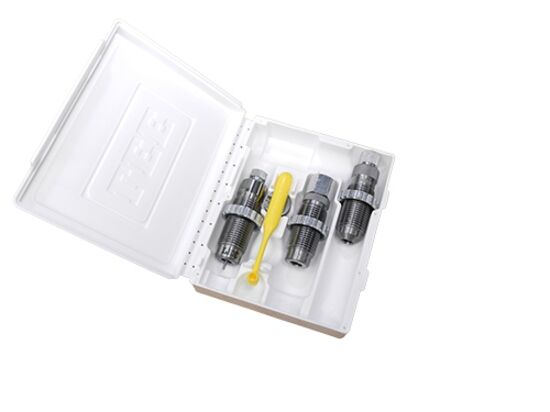

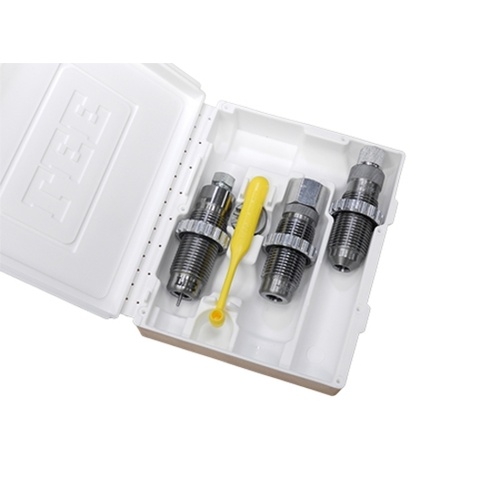

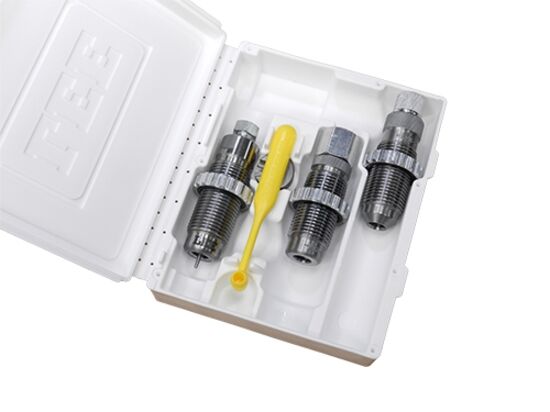

• Complete Setup: Includes a #19 universal shell holder, powder measure dipper, load data instruction sheet, and a fitted storage case.

Specifications

• Calibre Compatibility: 9mm Luger (9x19mm Parabellum)
• Thread Interface: 7/8"-14 standard press thread
• Product Weight: 1.07–1.35 lbs (0.48–0.61 kg)
• Packaged Dimensions: 5.8 in × 4.8 in × 1.5 in (14.7 cm × 12.2 cm × 3.8 cm)

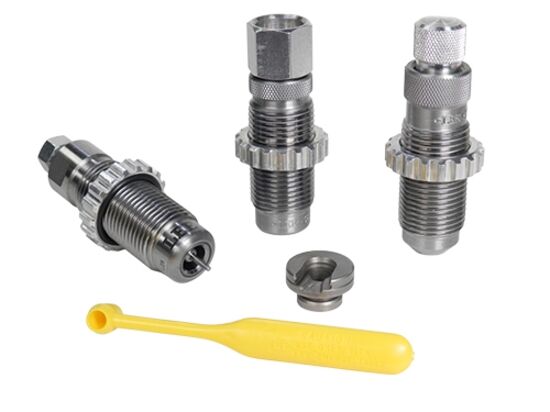

• Die Inclusions: Full-length carbide sizing/decapping die, powder-through expanding die, bullet seating/crimping die
• Power Requirements: None (manual/mechanical operation)

Who is the Lee Precision Carbide 3-Die Set 9mm Luger for?

• Competitive IPSC and service pistol shooters — who need to produce high volumes of 9mm Luger (9x19mm Parabellum) match ammunition efficiently on standard 7/8"-14 threaded presses without taking the time to lubricate and clean cases.
• Target shooters reloading for pistol-calibre carbines — who require a complete 3-die reloading set weighing 1.07–1.35 lbs to reliably size, charge, and seat standard 9mm Luger cases in a single streamlined workflow.

Less suitable for: Reloaders requiring separate bullet seating and taper crimping stations, post-seat carbide sizing for bulged range brass, or non-standard chambers like 9x18mm Makarov or 9x21mm; these applications require dedicated calibre dies or a 4-die reloading set with a separate factory crimp die.
