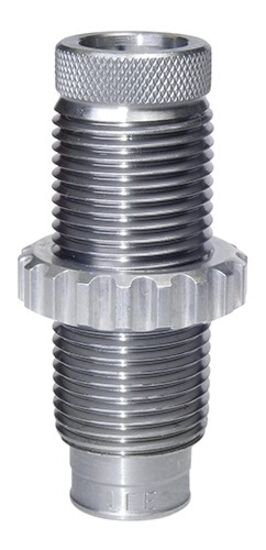

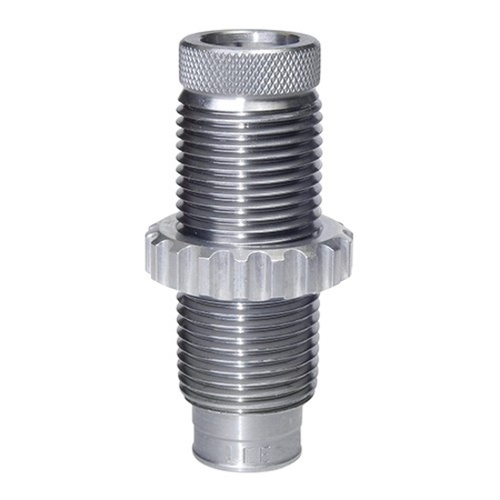

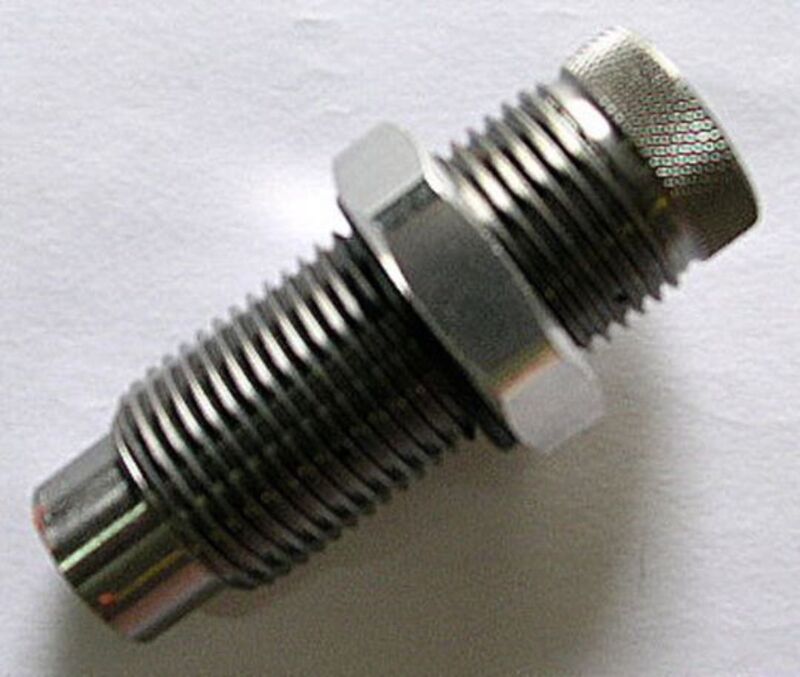

The Lee Precision Factory Crimp Die (SKU 90848) is a dedicated reloading die designed to apply a firm, uniform collet crimp to 8x57mm JS Mauser ammunition. Built with a hardened steel body, this mechanical die uses a segmented collet mechanism that presses directly into the case neck rather than relying on a roll crimp. This design secures bullets with or without a cannelure without buckling case mouths or compromising bullet concentricity. By establishing consistent start pressure prior to bullet movement, the die aids in lowering velocity spreads and improving ignition uniformity across handloaded cartridges.

Key Features

• Segmented Collet Crimp Mechanism: Squeezes the case mouth uniformly against the bullet body, preventing case buckling and preserving concentricity.
• Cannelure-Independent Operation: Applies a reliable crimp to both grooved and smooth-jacketed or cast bullets.
• Uniform Start Pressure: Promotes consistent powder ignition and tighter velocity standard deviations for improved downrange consistency.
• Standard Press Integration: Features standard 7/8"-14 mounting threads to fit single-stage and turret reloading presses.
• Recoil Retention: Keeps bullets securely seated during heavy recoil and magazine cycling in bolt-action and semi-automatic firearms.

Product Specifications

• Calibre Compatibility: 8x57mm Mauser (8x57 JS / 8mm Mauser, .323" bullet diameter)
• Mounting Thread: 7/8"-14
• Construction: Hardened steel body with segmented collet
• Operation Type: 100% mechanical (no electrical power required)

Who is the Lee Precision Factory Crimp Die for 8x57 JS Mauser for?

• Military-Surplus Kar98k Reloaders — installs via standard 7/8"-14 threads to apply a collet crimp on 8x57mm Mauser ammunition, preventing bullet setback during aggressive magazine feeding in surplus bolt-action rifles.
• 8x57 JS Sporting Rifle Hunters — secures smooth or cannelured hunting projectiles in 8x57mm JS cartridges to maintain uniform start pressure and reliable bullet seating under heavy field recoil when targeting medium-to-large game.

Less suitable for: Straight-wall pistol cartridges requiring a carbide sizing ring (use a dedicated carbide factory crimp die), calibres other than 8x57mm Mauser (use a calibre-specific rifle crimp die), or precision benchrest shooters utilising fire-formed brass with non-crimping neck-tension bushing dies.
