What specific sight is the Lyman 16c Sight Blade Retaining / Elevation Screw compatible with?

This screw is designed exclusively as a replacement part for the Lyman No. 16C Folding Leaf Open Rear Sight. It is a precise OEM component to ensure proper function and fit for that specific vintage sight model.

What is the primary function of this screw on the Lyman 16C sight?

The screw serves a dual purpose: it acts as the retaining screw that clamps the adjustable elevation blade to the folding leaf, and it allows the shooter to loosen, slide, and lock the blade for precise elevation adjustments. It is also critical for securing the reversible 'V' or 'U' notch blade in your preferred orientation.

Why would I need to purchase a replacement for this specific screw?

Due to its micro-size, this screw is easily lost during field adjustments, cleaning, or disassembly of your Lyman 16C sight. This OEM replacement allows for the restoration of vintage or modern Lyman 16C sights to full working order, preventing the use of mismatched or incorrect hardware.

Will this screw fit my rifle, such as a Winchester Model 70 or Savage Model 110?

This screw is a component of the Lyman No. 16C Folding Leaf Open Rear Sight, not a direct rifle part. The Lyman 16C sight itself is commonly used on classic rifles like the Pre-64 Winchester Model 70 and Savage Model 110, which feature a standard 3/8" dovetail slot.

Does this screw require any special Australian certifications or electrical considerations?

No, as a purely mechanical firearm component, the Lyman 16c Sight Blade Retaining / Elevation Screw does not require 240V power, SAA/RCM safety certifications, or an Australian power plug. It is a non-electrical accessory.

Lyman 16c Sight Screw - Lyman 16c LY-3990726

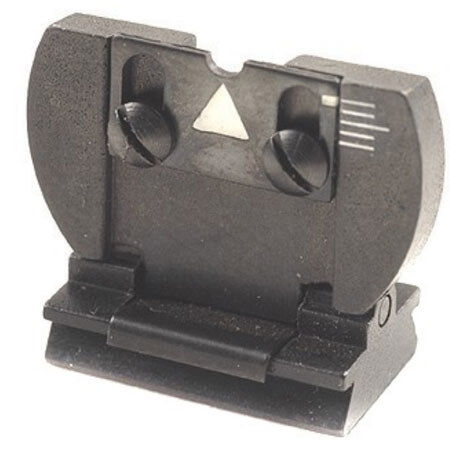

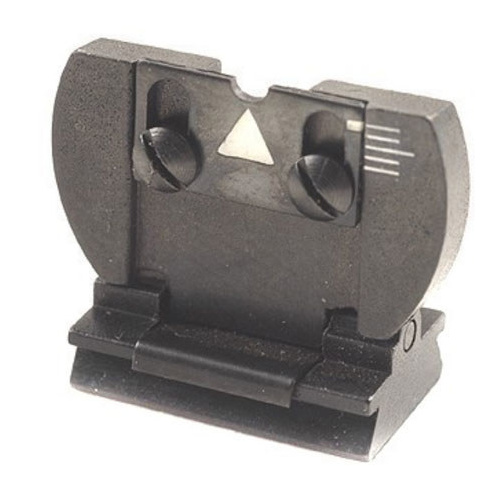

The Lyman 16c Sight Blade Retaining / Elevation Screw (SKU: LY-3990726) is a factory-original replacement component designed specifically for the Lyman No. 16C Folding Leaf Open Rear Sight. This micro-sized mechanical fastener plays a dual role in maintaining the accuracy and functionality of your firearm's sighting system. It secures the adjustable elevation blade to the folding leaf body and allows shooters to make precise vertical adjustments. Built to exact factory specifications, this screw ensures that vintage and modern Lyman sights remain secure under recoil, preserving the historical and functional integrity of classic rifles.

Key Features:

Dual-Purpose Utility: Acts as both the primary retaining clamp and the elevation adjustment locking mechanism for the rear sight blade.
Reversible Blade Support: Securely locks the reversible Lyman 16C blade in place, whether you prefer the traditional "V" notch or the "U" notch alignment.
OEM Precision Fit: Manufactured by Lyman to match the proprietary thread pitch and length required for the No. 16C sight, eliminating the need for makeshift or mismatched generic hardware.
Durable Steel Construction: Engineered to withstand the vibrations and recoil associated with classic high-calibre rifles.
Ultra-Lightweight Design: Weighing under 5 grams, this micro-component integrates seamlessly into the sight assembly without altering the rifle's balance.

Technical Specifications:

Manufacturer: Lyman
Part Number / SKU: LY-3990726
Compatible Sight Model: Lyman No. 16C Folding Leaf Open Rear Sight (featuring a .500" base height with elevation capabilities up to .600")
Common Rifle Applications: Vintage and modern rifles with a standard 3/8" dovetail slot, including the Pre-64 Winchester Model 70 and the Savage Model 110
Weight: Less than 5 grams
Power Requirements: None (fully mechanical component)

Who It Is For:

This replacement screw is an essential component for Australian target shooters, hunters, and firearm restorers who use classic rifles fitted with the Lyman No. 16C folding rear sight. Because these micro-screws are easily lost during field adjustments, cleaning, or disassembly, keeping a spare in your gunsmithing kit is highly recommended. It is particularly valuable for collectors restoring period-correct firearms like the Pre-64 Winchester Model 70 or Savage Model 110, ensuring the rifle retains its original mechanical specifications and aesthetic value. Whether you are performing routine maintenance or conducting a full-scale restoration, this genuine Lyman part provides the exact fit required for dependable field performance.

SKU	LY38099LP
Model #	LY-3990726
Brand	Lyman
Shipping Weight	1.0000kg
