What specific bullet type and calibre does the Lyman LY-M60244 mould cast, and what are its primary applications?

This mould casts a 255-grain, .44 calibre (.430" nominal diameter) Semi-Wadcutter (SWC) / Flat Nose Gas Check (FNGC) bullet, specifically Lyman's #429244 Ray Thompson design. It's primarily used for casting accurate, heavy-hitting bullets for .44 Special and .44 Remington Magnum revolvers and rifles, popular among target shooters, metallic silhouette competitors, and hunters.

What additional equipment is required to use the Lyman LY-M60244 mould, especially for Australian customers?

To operate this bare mould block, you will need Lyman Double Cavity Mould Handles, which are sold separately. Additionally, for sizing the cast bullets, a #421 Top Punch and appropriate sizing dies (e.g., .429, .430, or .431) are required, also sold separately. Australian users will also need a lead melting pot and proper safety gear for casting.

What are the key features of the Ray Thompson #429244 bullet design and the mould's construction that contribute to bullet quality?

The Ray Thompson #429244 design features a gas check base to prevent deformation under high-pressure loads, along with smaller lubrication grooves and a narrower front driving band for improved accuracy. The mould itself is machined from blued, heat-treated leaded steel with hardened steel alignment pins, ensuring precise bullet formation and minimal parting-line flash.

Are there any specific safety precautions or Australian compliance considerations when using this bullet casting mould?

This is a purely mechanical tool and has no electrical components, so Australian electrical certifications are not applicable. However, casting lead requires significant safety precautions: always cast in a well-ventilated outdoor or workshop environment to prevent lead exposure, and use appropriate personal protective equipment like gloves and respirators.

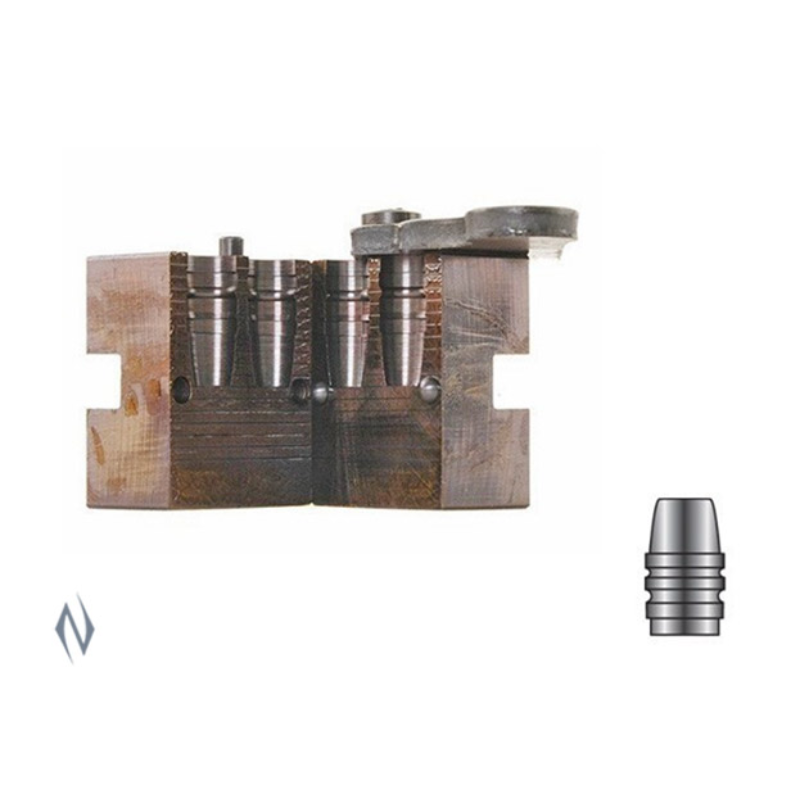

44 Cal Bullet Mould - Lyman LY-M60244

The Lyman Pistol Mould Double Cavity 44 Cal 255 Gr (MPN: LY-M60244) is a precision-engineered bullet casting mould designed for handloaders who demand absolute control over their ammunition. Based on the highly regarded Ray Thompson design (bullet design number #429244), this double-cavity mould allows shooters to cast two consistent, high-quality projectiles simultaneously. Machined from solid leaded steel and pre-treated with a blued finish, the mould blocks offer exceptional thermal stability and a minimal break-in period. This mechanical, non-electrical hand tool is built to withstand the rigorous temperatures of bullet casting, providing Australian reloaders with a reliable, long-term solution for producing custom .44 calibre ammunition.

Key Features:

Solid Steel Construction: Machined from premium leaded steel blocks and heat-treated to resist rust and ensure clean bullet release.
Hardened Steel Alignment Pins: Features precision-ground alignment pins that ensure the two mould halves align perfectly every time, eliminating parting-line flash on the cast projectiles.
Ray Thompson Design (#429244): Features a Gas Check base to prevent gas cutting and base deformation under high-pressure magnum velocities, alongside optimised lubrication grooves and a narrow front driving band for superior barrel alignment.
Double-Cavity Capacity: Casts two 255-grain bullets at the same time, significantly increasing production speed and efficiency at the casting bench.
Semi-Wadcutter Profile: The Flat Nose Gas Check (FNGC) Semi-Wadcutter profile delivers clean paper cuts for target shooting and excellent energy transfer for hunting applications.

Technical Specifications:

Manufacturer Part Number: LY-M60244 (cross-referenced under Lyman code LY-2660244)
Calibre: .44 Calibre (nominal bullet diameter of .430 inches)
Bullet Weight: 255 Grains (when cast using standard lead alloys)
Bullet Design Number: #429244
Bullet Profile: Semi-Wadcutter (SWC) / Flat Nose Gas Check (FNGC)
Mould Capacity: Double Cavity
Required Accessories: Requires Lyman Double Cavity Mould Handles (sold separately)
Sizing Compatibility: Designed to use a Lyman #421 Top Punch for bullet sizing. Recommended sizing dies include .429, .430, or .431 diameters depending on your firearm's specific bore dimensions.
Electrical Specification: Non-electrical mechanical tool (not subject to Australian SAA or RCM electrical certifications).

Who It Is For:

This Lyman bullet mould is specifically designed for Australian sport shooters, metallic silhouette competitors, and handgun hunters who reload for .44 Special and .44 Remington Magnum revolvers or lever-action rifles. It is an essential tool for handloaders who want to reduce ammunition costs while customising projectile hardness and sizing to match their firearm's specific bore. Because bullet casting involves molten lead and high temperatures, this product is intended for experienced reloaders who have a dedicated, well-ventilated outdoor or workshop casting area and use appropriate personal protective equipment.

SKU	LY38335LP
Model #	LY-M60244
Brand	Lyman
Shipping Weight	1.0000kg
