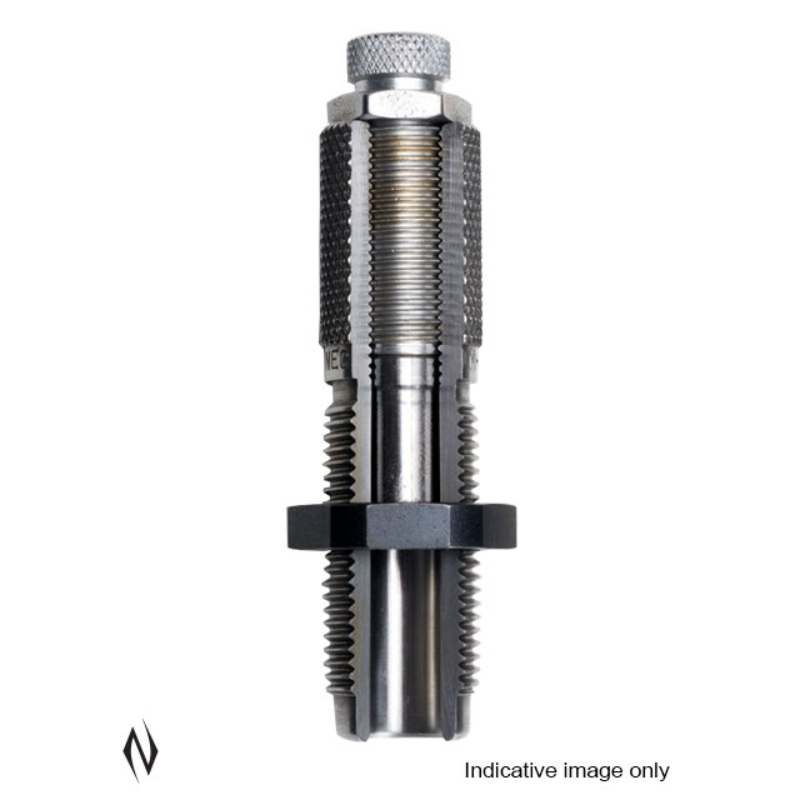

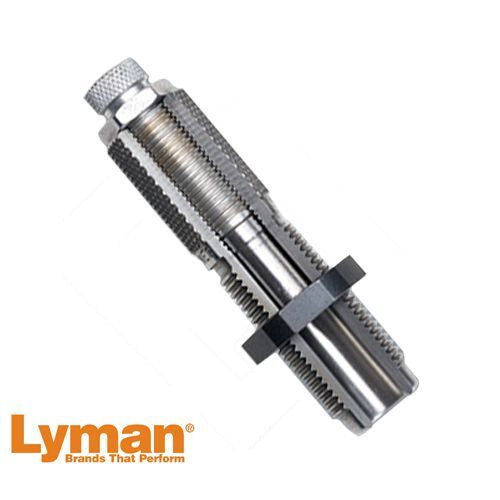

The Lyman Neck Expanding "M" Die - 30 Caliber Long (SKU: LY-MD30L, MPN: 7349002) is a specialized mechanical reloading tool designed to optimize the neck tension and bullet alignment of longer .30-caliber rifle cartridges. Unlike conventional expander buttons that can distort or stretch brass as they are pulled through the case neck, this die uses a precise, two-step expanding plug. This unique mechanism establishes a uniform inside diameter while creating a small step or pocket at the case mouth. This pocket allows the bullet to sit perfectly upright and centered prior to the seating stage, ensuring concentricity and preventing damage to the projectile during assembly.

Key Features:

• Two-Step Expanding Plug: The first step expands the inside of the case neck to slightly under bullet diameter for precise, uniform neck tension. The second step slightly flares the case mouth to bullet diameter, allowing the projectile to sit flat and centered.
• Prevents Shaving: By creating a guided pocket, it eliminates the shaving of lead from cast bullets or copper from jacketed projectiles during the seating process.
• Enhanced Concentricity: Ensures the bullet is perfectly aligned with the axis of the case neck, directly contributing to improved downrange accuracy.
• Extended Case Life: Minimizes work-hardening and stretching of the brass neck, which is critical for preserving hard-to-find or expensive cartridge cases.
• Universal Threading: Features standard 7/8"x14 threads, ensuring complete compatibility with almost all standard single-stage and turret reloading presses.
• Mechanical Operation: Fully manual, hand-operated design requiring no electrical power, making it a reliable addition to any reloading bench.

Specifications:

• Manufacturer Part Number (MPN): 7349002
• Australian Retailer SKU: LY-MD30L
• Thread Size: Standard 7/8"x14
• Cartridge Compatibility: Engineered specifically for longer .30-caliber rifle cartridges, including .30-06 Springfield (7.62 x 63mm), .308 Winchester, .307 Winchester, .300 Winchester Magnum, .300 Weatherby Magnum, .300 H&H Magnum, .30-40 Krag, .303 British, and 7.62x54mm Russian.

Who It's For:

The Lyman Neck Expanding "M" Die is designed for Australian handloaders, target shooters, and hunters who demand maximum precision and consistency from their ammunition. It is an indispensable tool for reloaders utilizing cast lead bullets or flat-base jacketed projectiles, where precise mouth flaring is required to prevent bullet damage. Whether you are prepping brass for a classic .303 British service rifle, loading high-precision rounds for a .308 Winchester target rifle, or assembling heavy hunting loads for a .30-06 Springfield, this die helps extend the lifespan of your brass and ensures your handloads perform reliably in the field or on the range.
