Will the Redding 71415 Type S Neck Die fit my standard Australian reloading press?

Yes, this die features the industry-standard 7/8"-14 thread, making it fully compatible with all common single-stage and turret reloading presses used in Australia, such as the RCBS Rock Chucker and Redding Big Boss. Please note that you will need to purchase a Redding Standard Shellholder #1 or Competition Shellholder #1 separately to use this die.

Does this neck sizing die come with the bushings required to start reloading 6.5-284 Winchester?

No, the Redding Type S Bushing Neck Sizing Die does not include sizing bushings out of the box, allowing you to select the exact size required for your brass. To determine the correct bushing, measure the neck diameter of your loaded cartridge with a micrometer and subtract 0.001" to 0.002".

Can I use the Redding 71415 die if I am reloading 6.5-284 brass for a semi-automatic rifle?

No, this neck sizing die is built specifically for cases that have been fire-formed in a single bolt-action rifle chamber. If you are reloading for semi-automatic rifles or multiple rifles where shoulder growth causes tight bolt closure after three to five firings, you must use a Full-Length Sizing Die or pair this die with a Body Die instead.

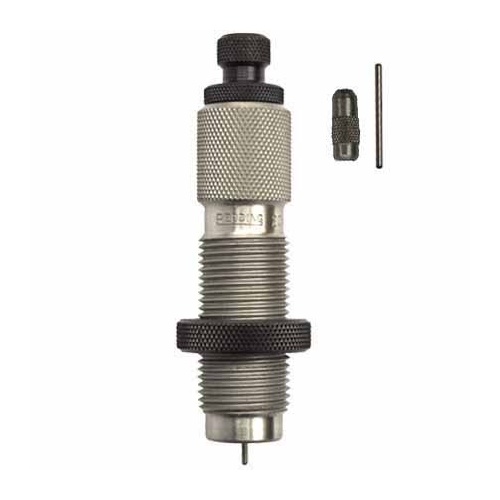

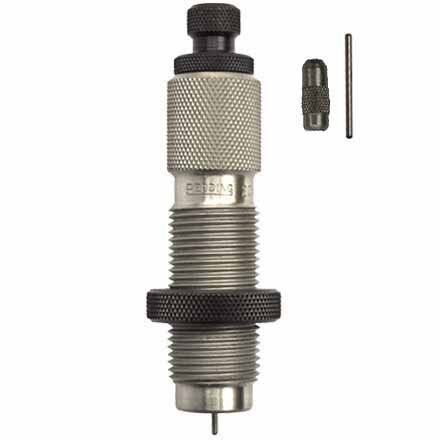

Neck Sizing Die - Redding 71415

The Redding Type S Bushing Neck Sizing Die (MPN 71415) is a precision handloading tool designed to size the case necks of 6.5mm-284 Winchester and 6.5-284 Norma rifle brass. Utilising freely floating, interchangeable sizing bushings, this die allows reloaders to precisely adjust neck tension in 0.001-inch increments while maintaining concentricity and preventing excessive brass fatigue. It features an adjustable decapping assembly that permits complete or partial neck sizing and mounts to reloading presses via an industry-standard 7/8"-14 thread.

Key Features

Interchangeable Bushing System: Accepts Redding Type S sizing bushings to control bullet tension precisely without over-working the case neck brass.

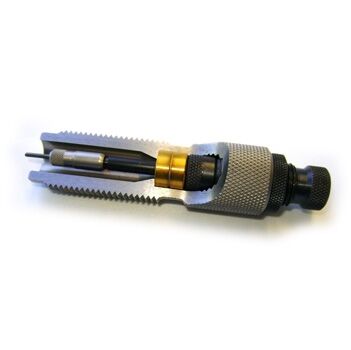

Self-Centring Alignment: Sizing bushings float within the die body to self-centre on the 6.5-284 case neck, reducing runout.
Adjustable Decapping Assembly: Allows reloaders to set decapping depth and size either the entire neck length or only a partial section.
Dual Decapping Configuration: Includes a standard expander button for commercial brass and a decapping pin retainer for turned-neck cases.

Specifications

Manufacturer Part Number (MPN): 71415
Calibre Compatibility: 6.5mm-284 Winchester / 6.5-284 Norma (0.264" projectile diameter)
Mounting Thread: 7/8"-14 thread standard
Compatible Shellholder: Redding Standard Shellholder #1 (MPN 11001) or Competition Shellholder #1 (MPN 11601)
Approximate Shipping Weight: 0.3–0.4 kg (0.8 lbs)

Who is the Redding 6.5/284 Winchester Type S - Neck Die for?

Long-range precision rifle handloaders — requires precise neck tension control for 6.5mm-284 Winchester cases using standard 7/8"-14 thread presses to maximise concentricity and extend fire-formed brass life.
F-Class and target benchrest competitors — sizes fire-formed 6.5-284 Norma cartridge necks using self-centring bushings without altering case body dimensions or disturbing the shoulder datum.

Less suitable for: Reloading for semi-automatic firearms, managing mixed rifle chambers, or sizing cases after 3–5 firings when shoulder growth causes tight bolt closure; a full-length sizing die or dedicated body die is required to bump shoulders and restore original case dimensions.

SKU	RD41736LP
Model #	71415
Brand	Redding
Shipping Weight	1.0000kg
