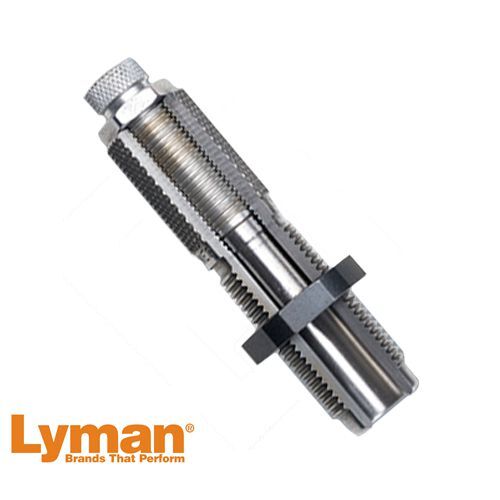

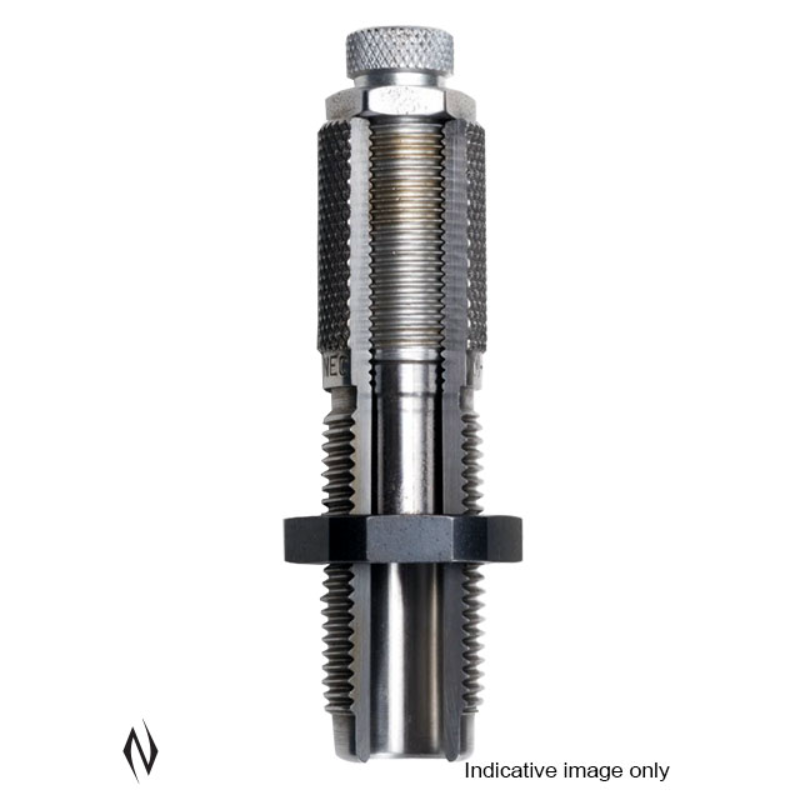

The Lyman Neck Expanding "M" Die (Model LY-MD30M1, Manufacturer Part Number 7349004) is a precision-engineered reloading tool designed to improve the consistency, accuracy, and longevity of handloaded ammunition. Specifically optimized for the popular .30 M1 Carbine and .300 AAC Blackout (.300 BLK) calibres, this die utilizes an industry-standard 7/8" x 14 thread, ensuring seamless compatibility with Lyman, RCBS, Hornady, Lee, and other major single-stage or progressive reloading presses. By utilizing a mechanical, non-stretching expansion process, this tool helps Australian shooters achieve highly uniform neck tension and perfect bullet alignment without compromising the structural integrity of the brass case.

Key Features:

• Precision Two-Step Expander Plug: The first step expands the inside of the case neck to slightly under bullet diameter for precise, uniform neck tension. The second step flares the very mouth of the case to bullet diameter or slightly over, creating a small pocket that allows the bullet to sit perfectly centered and aligned before seating.
• Cast and Flat-Base Bullet Optimization: This die is highly recommended for reloaders using cast lead or flat-base jacketed bullets, as the gentle flare prevents the sharp base of the bullet from shaving lead or copper jacket material during the seating process.
• Extended Brass Case Life: Unlike standard expander buttons that pull and stretch the neck during the press stroke, the Lyman M Die minimizes work-hardening of the brass, significantly extending the life of your cartridge cases.
• Adjustable Calibre Versatility: While optimized for .30 M1 Carbine and .300 AAC Blackout, the die body can be backed out of the press to expand other .30 calibre cartridges, such as the .30-06 Springfield.
• Robust Mechanical Design: Made from high-quality steel, this is a fully mechanical tool requiring no electrical power, making Australian electrical safety standards (such as 240V mains, SAA, or RCM certifications) not applicable.

Product Specifications:

• Brand: Lyman
• Model / SKU: LY-MD30M1
• Manufacturer Part Number: 7349004
• Thread Size: Standard 7/8" x 14 threads
• Calibre Compatibility: .30 M1 Carbine, .300 AAC Blackout (300 BLK), and other adjustable .30 calibre cartridges
• Physical Weight: Approximately 245 to 275 grams (0.54 to 0.61 lbs)
• Power Requirements: None (fully mechanical)

Who It Is For:

The Lyman Neck Expanding "M" Die is an essential tool for Australian sport shooters, historical service rifle competitors reloading for the classic M1 Carbine, and modern utility shooters loading for the versatile .300 Blackout calibre. It is particularly valuable for handloaders who work with cast lead projectiles or flat-base jacketed bullets and demand precise neck tension, improved concentricity, and maximum case life from their reloading components.
