What calibres and reloading presses is the Lyman Universal Decapping Die compatible with, and what else do I need?

This die fits all centerfire calibres from .22 through .45, utilizing a standard 7/8"-14 thread pattern compatible with most single-stage, turret, and progressive reloading presses. It does not fit .378 and .460 Weatherby cases or decap Berdan primers. You will also need a calibre-specific shellholder, which is sold separately.

Do I need to lubricate my cases before using the Lyman Universal Decapping Die, and what are the benefits of decapping before cleaning?

No, you do not need to lubricate your cases before using this die, as it does not resize the brass. Decapping cases before cleaning, such as with wet tumbling, ensures thorough cleaning of primer pockets by removing carbon buildup, which leads to more consistent primer seating and ignition for better reloading results.

How durable is the decapping rod, especially with stubborn primers, and are replacement parts available in Australia?

The Lyman Universal Decapping Die features a rugged, one-piece hardened steel decapping rod designed to easily remove even stubborn military-crimped primers without bending or breaking. Should you ever need a replacement, the Lyman Decapping Rod (SKU: LY-UDDROD) is readily stocked by Australian retailers, ensuring long-term serviceability.

Does the Lyman Universal Decapping Die require any electrical power or special adapters for use in Australia?

No, the Lyman Universal Decapping Die is a purely mechanical, hand-operated reloading tool and has no electrical components. Therefore, it does not require any electrical power, 240V compatibility, SAA/RCM certifications, or special Australian plug configurations.

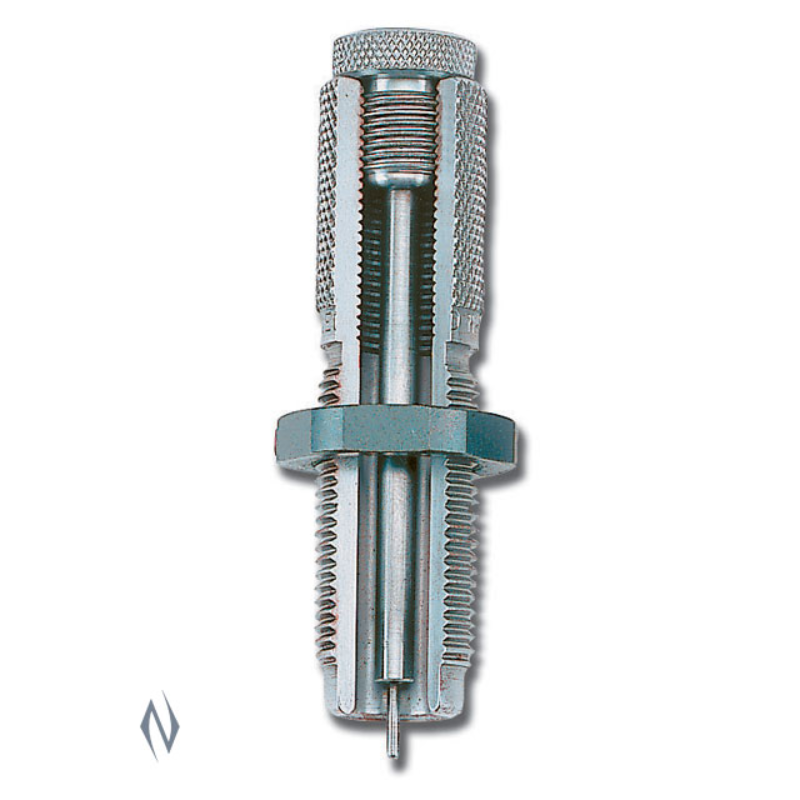

Universal Decapping Die - Lyman LY-UDD

p>The Lyman Universal Decapping Die (Model: LY-UDD) is a dedicated mechanical reloading tool designed to streamline the brass preparation process by removing spent primers before cases are cleaned or resized. Made from hardened steel, this die allows shooters to deprime cases without resizing the cartridge body or neck, meaning no case lubrication is required. By decapping brass prior to wet tumbling or ultrasonic cleaning, reloaders ensure that primer pockets are thoroughly cleared of carbon buildup. This leads to more consistent primer seating and reliable ignition. The die features a standard 7/8"-14 thread, making it compatible with most standard single-stage, turret, and progressive reloading presses used by Australian handloaders.

Key Features:

Hardened Steel Decapping Rod: Features a rugged, one-piece steel rod assembly designed to pop out stubborn or military-crimped primers without bending.
No Case Lubrication Needed: Because the die does not resize the brass, you can process dirty cases quickly without the need for lubing, saving time and preventing sticky residue.
Optimised Pre-Cleaning Workflow: Decapping before cleaning allows cleaning media to reach inside the primer pocket, ensuring a spotless pocket for the next primer.
Broad Compatibility: Fits standard 7/8"-14 thread presses and works with centerfire calibres from .22 up to .45.
Protective Packaging: Ships with a durable plastic storage case to protect the die threads and prevent dust accumulation when stored on the reloading bench.

Product Specifications:

Model Number: LY-UDD (Manufacturer Part Number: 7631290)
Material: Hardened steel construction
Item Dimensions: 6.1" x 1.35" x 1.35" (approximately 15.5 cm x 3.4 cm x 3.4 cm)
Package Dimensions: 6.46" x 1.5" x 1.38" (approximately 16.4 cm x 3.8 cm x 3.5 cm)
Weight: 0.4 lbs (approximately 181 grams / 0.19 kg package weight)
Power Requirements: None (fully mechanical, manual reloading press accessory)
Calibre Compatibility: Fits centerfire calibres from .22 through .45 (excluding .378 and .460 Weatherby cases; not compatible with Berdan primers)
Press Compatibility: Standard 7/8"-14 thread pattern
Required Accessories: Requires a calibre-specific shellholder (sold separately)

Who It Is For:

The Lyman Universal Decapping Die is designed for Australian target shooters, hunters, and precision reloaders who demand clean primer pockets and consistent handloads. It is highly suited for high-volume reloaders who use rotary tumblers or ultrasonic cleaners to process common Australian calibres such as .223 Remington, .243 Winchester, 6.5 Creedmoor, and .308 Winchester. Because replacement parts, such as the Lyman Decapping Rod (SKU: LY-UDDROD), are readily available within the Australian market, this tool is a reliable, long-term investment for regional and metropolitan reloaders alike who want to maintain their equipment without lengthy downtime.

SKU	LY38591LP
Model #	LY-UDD
Brand	Lyman
Shipping Weight	1.0000kg
