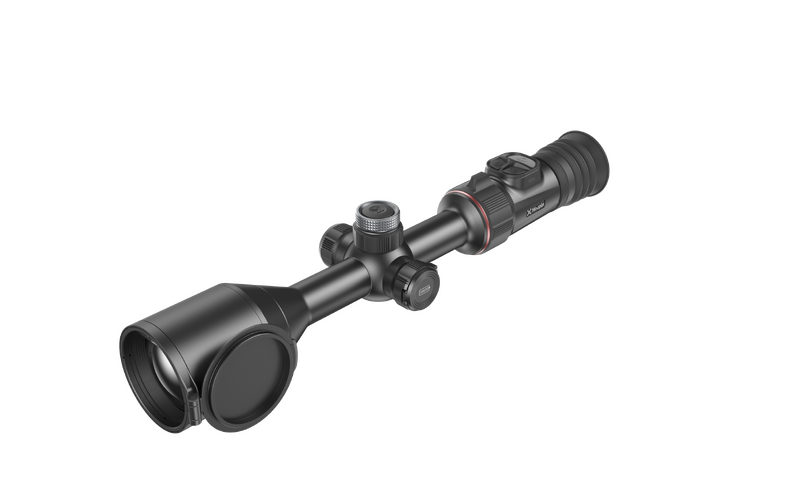

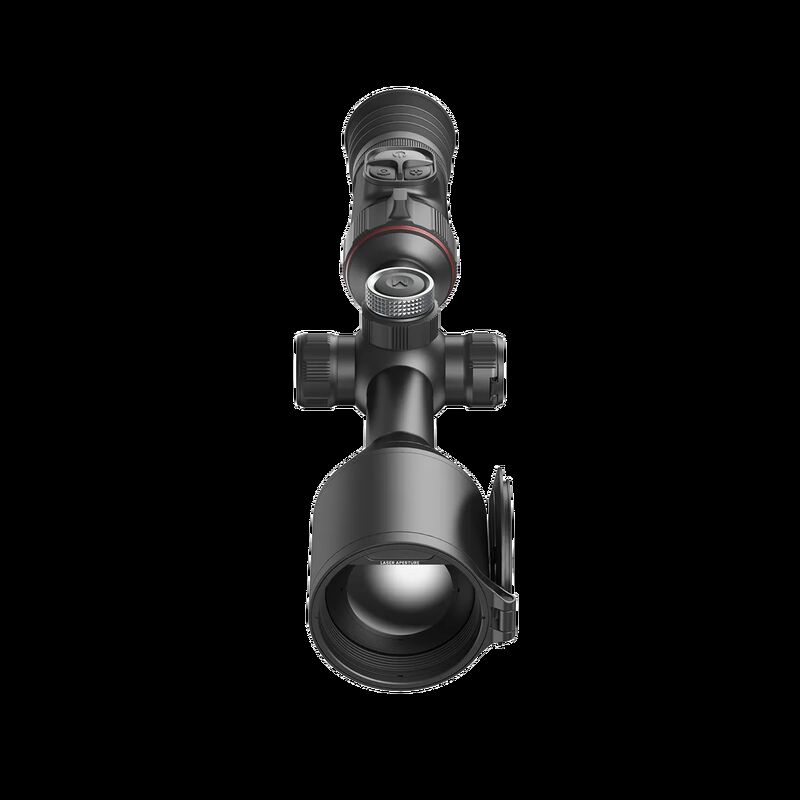

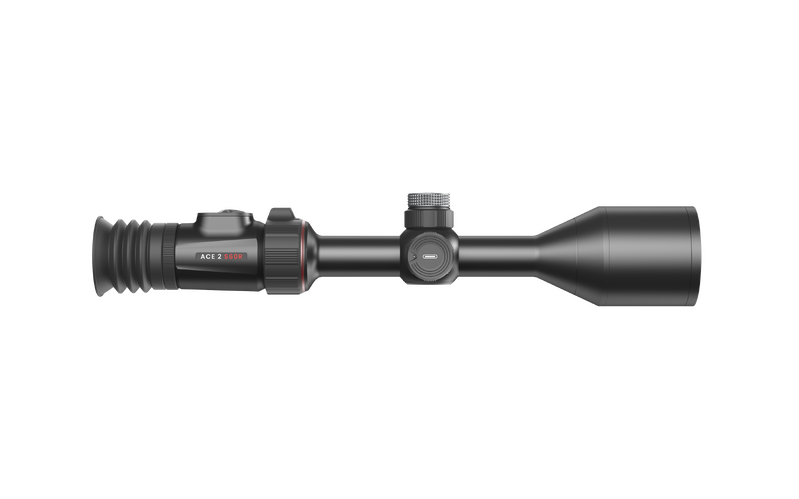

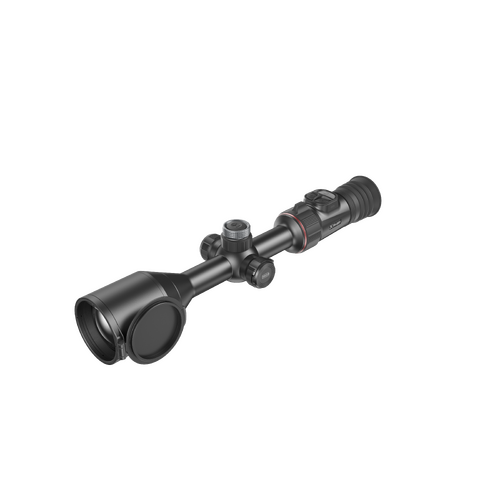

The Nocpix Ace 2 S60r is an ultra-high-definition thermal rifle scope designed for long-range target detection, ranging, and engagement in low-light and night-time conditions. Built around a 1280 × 1024 Gen 3 uncooled VOx thermal sensor paired with a 60 mm f/1.0 objective lens, the optic delivers target detection out to 3,100 metres and native optical resolution across a 14.7° × 11.7° field of view. An integrated in-lens laser rangefinder and onboard ballistics engine compute holdovers out to 1,200 metres, while the standard 30 mm tube interface ensures compatibility with heavy-recoil bolt-action and semi-automatic platforms rated up to 7,000 Joules.

Key Features

• High-Resolution HD Sensor: Employs a 1280 × 1024, 12 μm sensor with sub-12 mK thermal sensitivity (NETD) and a selectable 30 Hz/60 Hz frame rate for fluid tracking on a 2560 × 2560 circular AMOLED display.
• Integrated Ballistics and LRF 2.0: Features an in-lens co-axial laser rangefinder with a 1,200 m ranging threshold integrated with Ballistic Calculation 2.0 to calculate shot trajectories based on distance, angle, and environmental factors.
• Magnesium Alloy Chassis: Houses optics in an IP67-rated, 980 g magnesium body featuring a central top-turret focus wheel for single-handed adjustment.
• Dual-Battery Power System: Combines an internal rechargeable battery with a hot-swappable 18650 cell to provide 7 to 8 hours of continuous operation via a 5 V DC USB-C charging interface.
• Onboard Storage and Connectivity: Includes 64 GB of internal memory and 5 GHz Wi-Fi delivering transfer rates up to 20 MB/s.

Specifications

• Sensor Resolution: 1280 × 1024 px (12 μm pixel pitch, NETD ≤ 12 mK)
• Objective Lens: 60 mm, f/1.0
• Base Magnification: 2× optical (with Ocular Zoom 2.0 hybrid zoom)
• Field of View: 14.7° × 11.7° (25.6 m × 20.5 m at 100 m)
• Detection Range: Up to 3,100 m
• LRF Maximum Range: 1,200 m
• Display: 2560 × 2560 circular AMOLED
• Eye Relief & Exit Pupil: 60 mm eye relief; 10 mm exit pupil
• Recoil Resistance: Up to 7,000 Joules
• Body Construction & Tube Diameter: Magnesium alloy; standard 30 mm tube
• Weight: 980 g
• Waterproofing & Operating Temperature: IP67 rated; -20°C to +50°C

Who is the Nocpix Ace 2 S60r for?

• Long-range feral pest controllers — identifies and tracks feral pigs, foxes, and wild dogs across broad paddocks using the high-definition 1280 × 1024 px thermal sensor and 60 mm, f/1.0 objective lens for wide-area scanning and fine detail resolution.
• Professional cullers using heavy calibres — calculates real-time ballistic holdovers out to a 1,200 m LRF range on centerfire rifles generating up to 7,000 Joules of recoil, mounted in standard 30 mm rings.

Less suitable for: Continuous foot-stalking through dense scrub or tight brush shooting under 100 m, where a lighter, ultra-compact thermal scope with a smaller 35 mm objective lens provides faster handling than this 980 g optic.
