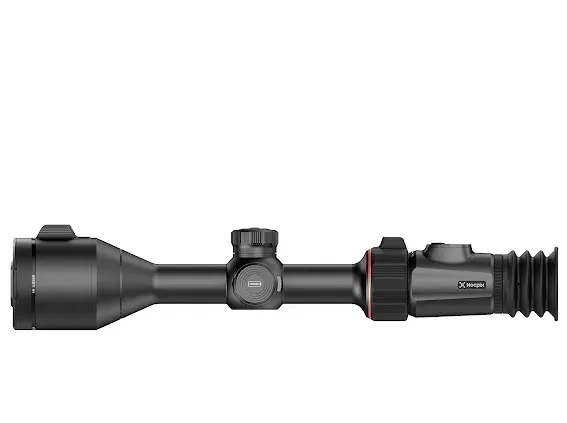

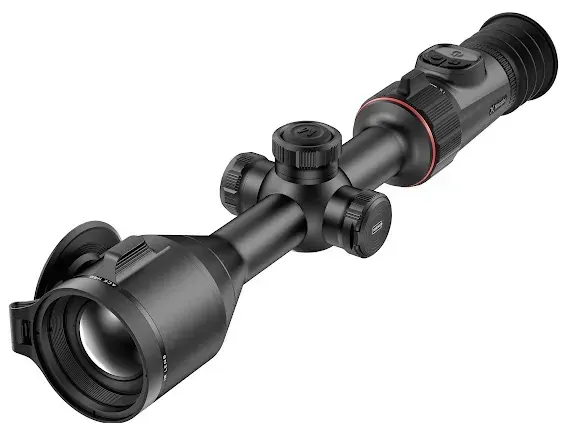

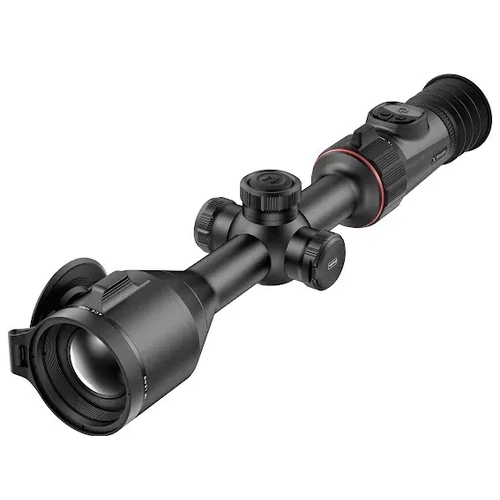

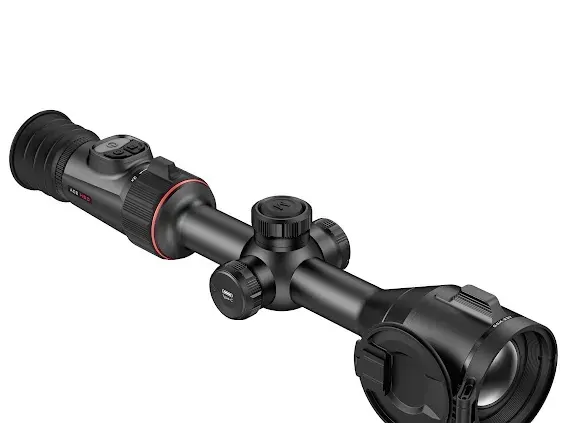

Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor, and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.





Superior Sensor Ensures Excellence

Equipped with a Gen-2 HD thermal sensor offering a resolution of 640 x 512 and a frame rate of up to 60Hz, the ACE H50 provides stable performance with an NETD≤15mK. This enables it to detect even the slightest temperature variations, delivering exceptionally detailed and smooth thermal imagery, even when tracking fast-moving prey.



Enhanced Clarity with Larger Lens

The ACE series feature 60mm/F1.0 on the S60R or 50mm/F0.9 lenses on the H50 and H50R. The larger objective lens allows higher energy transmission through to the sensor resulting in 20% finer Image to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.



Long-Distance Detection at Ease

The ACE series boasts an impressive detection range of up to 3100 meters on the Ace S60R and 2600 meters on the Ace H50 and H50R. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.



Reality+ Imaging Enhancement

Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity.

New Vision+ System with Ocular Zoom

The new Vision+ system features a 1.03-inch round 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.



Eliminate Battery Capacity Concerns

The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.



Designed for Hunting and Shooting

The ACE includes essential features for hunting scenarios such as ballistic calculations, auto screen shutdown, recoil-activated video recording, and a shutterless design, making perfect hunting achievable. (Ballistics in LRF Models)



KEY FEATURES





• Magnification: 3×
• Objective Lens Diameter: 50 mm
• Sensor Size: 640 px
• Pixel Pitch: 12 μm
• NETD (Noise Equivalent Temperature Difference): <15 mK
• Display Type: AMOLED
• Display Resolution: 2560 × 2560
• Battery Type: 18650
• Length: 365 mm
• Weight: 1090 g
