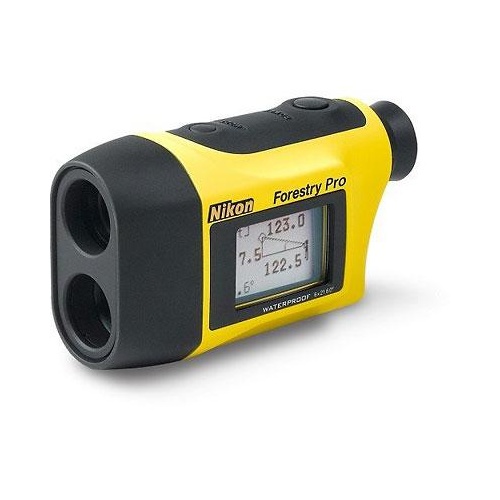

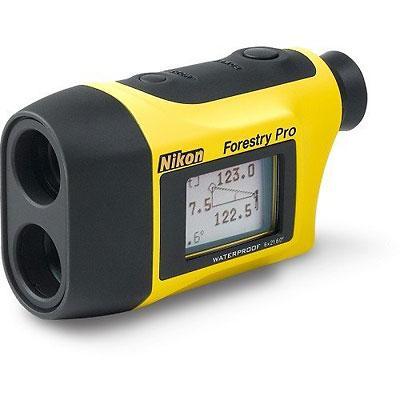

The Nikon Laser Forestry Pro II Laser Range Finder is an evolved model of the current Forestry Pro which has been highly acclaimed as a simple surveying instrument for forestry. Inheriting functions useful for simple measurement that the existing model employs such as actual distance, horizontal distance, height, angle and vertical separation (difference in height between two targets) measurement functions, and three-point measurement (height between two points), the Forestry Pro II extends the maximum measurement range with improved accuracy of measured results, as evolved points. Also, the measurement response time until results are displayed has been shortened. This new model achieves measurement of longer distances than the original Forestry Pro while providing more accurate and faster response.

The external display has a higher pixel count making it easier to view than the previous model. Backlighting is newly employed so that the display can be viewed easily even in dark situations, such as for forestry. There are three levels of backlight brightness that can be adjusted according to the light conditions.

In addition, a log function is employed for storing up to 250 measurement results. This log can be referred to on the external display, for more convenient use.

Key Features of the Nikon Laser Forestry Pro II Laser Range Finder

• Measurement range: 7.5-1,600m / 8-1,750 yd. / 25-5,250 ft.

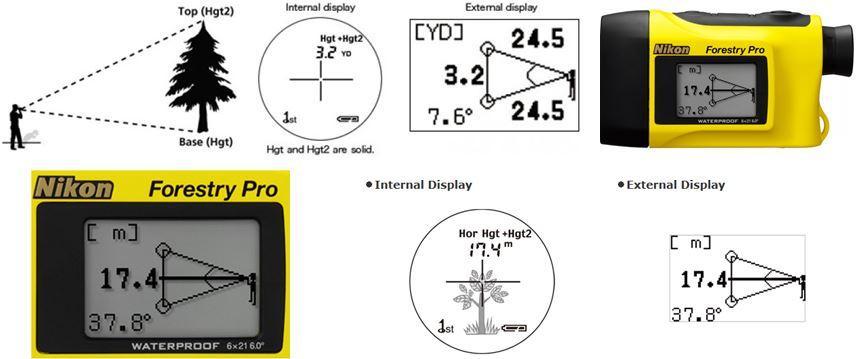

• In addition to actual distance, horizontal distance, height, angle and vertical separation (difference in height between two targets) measurement functions, three-point measurement (height between two points) is available
• The results are displayed on both internal and external LCD panels. The external panel displays all results simultaneously
• The external display employs backlighting for easy visibility even in dark situations, such as for forestry. Backlight brightness is adjustable to three levels

KEY FEATURES

Measurement range

Distance:10-500m/11-550 yd./33-999 ft.(*999 ft.: 304.5m/333 yd.)

Angle: ±89º

Distance display (Increment)

[Internal Display]

Act (Actual Distance):

every 0.5m/yd., 1 ft. (shorter than 100m/yd./ft.)

every 1m/yd./ft. (100m/yd./ft. and over)

Hor (Horizontal Distance) and Hgt (Height):

every 0.2m/yd., 0.5 ft. (shorter than 100m/yd./ft.)

every 1m/yd./ft. (100m/yd./ft. and over)

Ang (Angle):

every 0.1º (less than 10º)

every 1º (10º and over)

*Downward angle from the horizontal line: with display "-"

[External Display]

Act (Actual Distance):

every 0.5m/yd., 1 ft.

Hor (Horizontal Distance) and Hgt (Height):

every 0.2m/yd., 0.5 ft.

Ang (Angle):

every 0.1º

Accuracy* (actual distance)

±1m/yd. (shorter than 300m/yd./900 ft.)

±0.6% (300m/yd./900 ft. and over)

Finder

Magnification (x)

6

Effective objective diameter (mm)

21

Actual field of view (º)

6.0

Exit pupil (mm)

3.5

Eye relief (mm)

18.2

Dimensions (LxHxW) (mm)

130x69x45

Weight (g) (excluding battery)

210

Power source

CR2 lithium battery x 1 (DC3V)

Auto power shutoff function equipped (after 30 sec.)

Laser classification

IEC60825-1: Class 1M/Laser Product

Electromagnetic compatibility

FCC Part15 SubPartB class B, EU: EMC directive, AS/NZS, VCCI classB, CU TR 020

Environment

• RoHS, WEEE
