What reloading press thread size and calibre are required to use the RCBS Matchmaster .270 Win Die Set?

This die set is strictly compatible with standard reloading presses featuring 7/8"-14 threads and is designed specifically for the .270 Winchester cartridge. It features a micro-adjustment threshold of exactly 0.001 inches per graduation mark for precise bullet seating.

Does the RCBS Matchmaster .270 Winchester Full Length Die Set require any Australian electrical certifications like SAA or RCM?

No electrical certifications are required for this product. Because it is a completely mechanical, hand-operated reloading tool containing no electronic components, motors, or wiring, regulatory standards like 240V compatibility and RCM approvals do not apply.

How do I determine the correct neck bushing size for the RCBS Matchmaster sizing die?

The sizing die utilizes interchangeable, self-centering neck bushings which are sold separately. Manufacturer instructions recommend measuring the outside neck diameter of a loaded cartridge and subtracting 0.002" to 0.003" to achieve optimal neck tension while minimising brass fatigue.

270 Win Die Set - RCBS R13508 Matchmaster

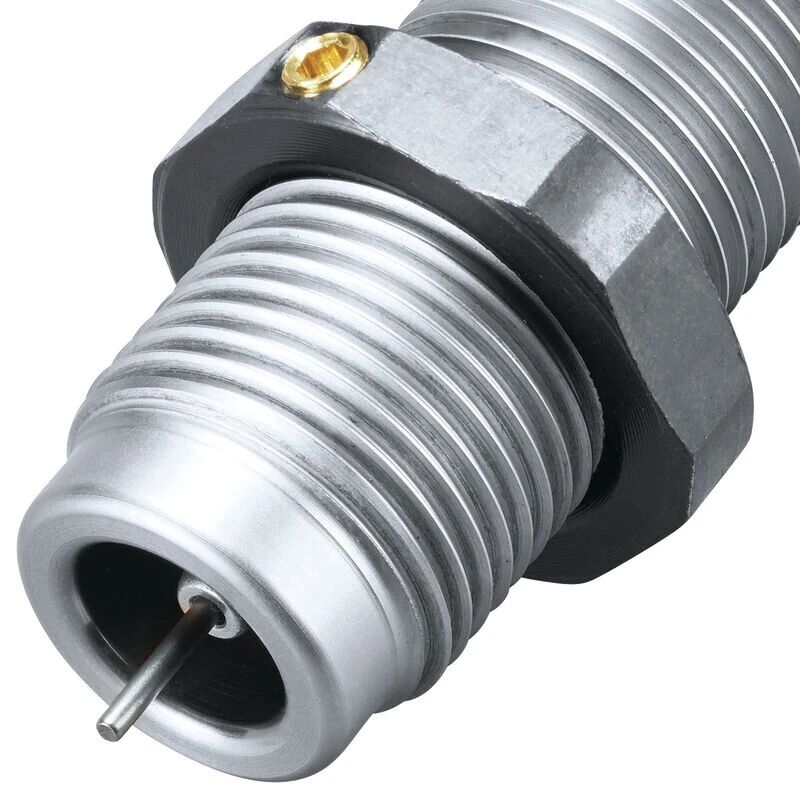

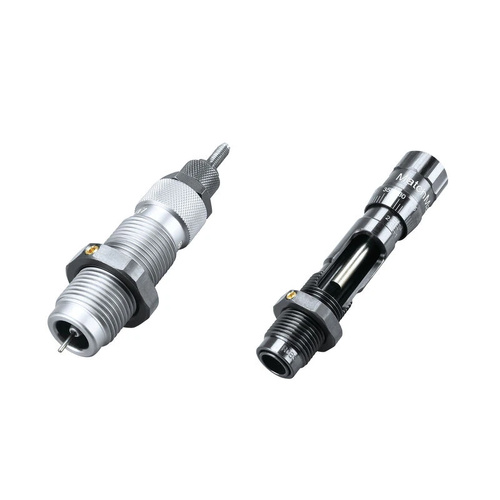

The RCBS 270 Win Matchmaster Competition Full Length Die Set is a high-grade mechanical reloading tool designed for precision handloaders, long-range competitive shooters, and benchrest competitors. This premium kit allows operators to resize cartridge cases and seat bullets with micrometer accuracy specifically for the .270 Winchester cartridge. The set consists of a Full-Length Bushing Sizing Die and a Micrometer-Adjustable Bullet Seating Die, both engineered to deliver extreme consistency. The sizing die is constructed with a case-hardened steel body and a finely polished, precision-reamed interior, while the bullet seating die features a deep blued finish.

Key Features

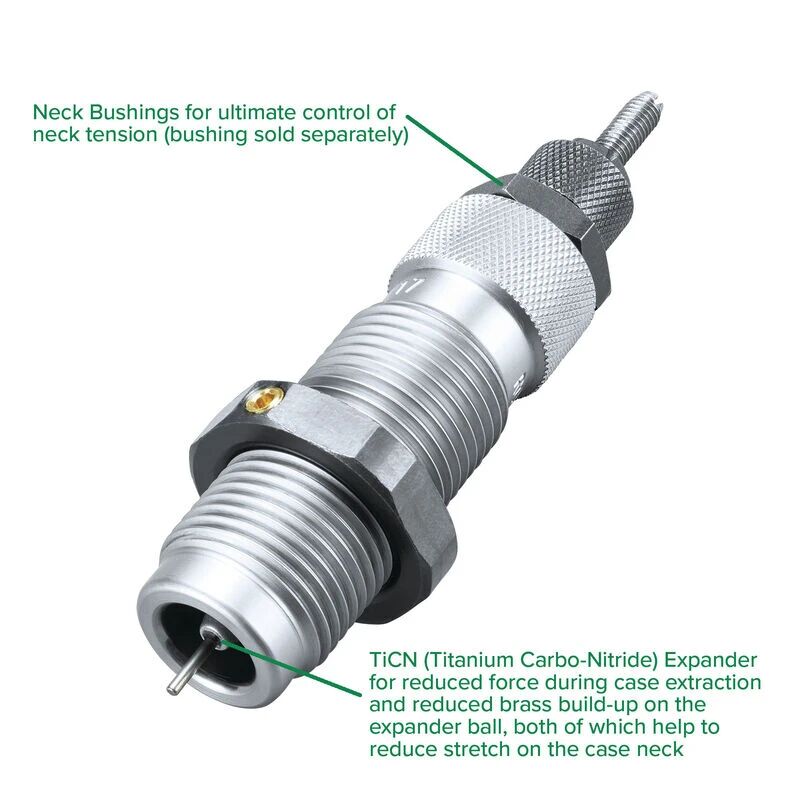

Bushing-Style Sizing Die: Utilizes self-centering, interchangeable neck bushings (sold separately) instead of a fixed expander ball, allowing handloaders to precisely adjust neck tension and minimize brass fatigue to extend case life.
TiCN Expander Rod: Features a Titanium Carbo-Nitride (TiCN) coated expander ball designed to minimize brass buildup, lower drag, and provide exceptionally smooth case extraction.

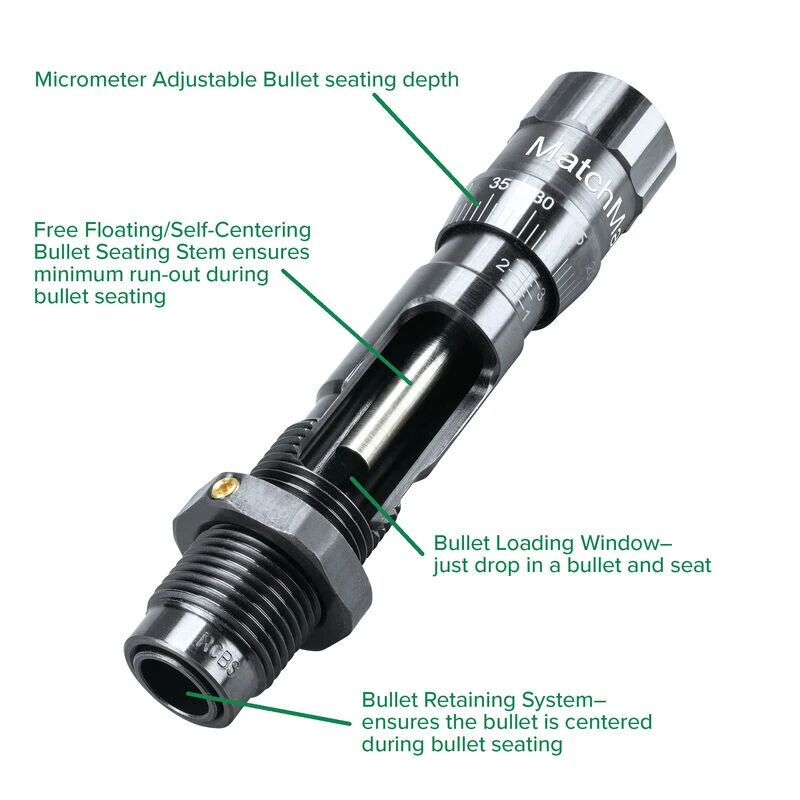

Micrometer Bullet Seating Die: Features an oversized micrometer adjustment knob with clear, distinct letters and hash marks for precise depth adjustment.

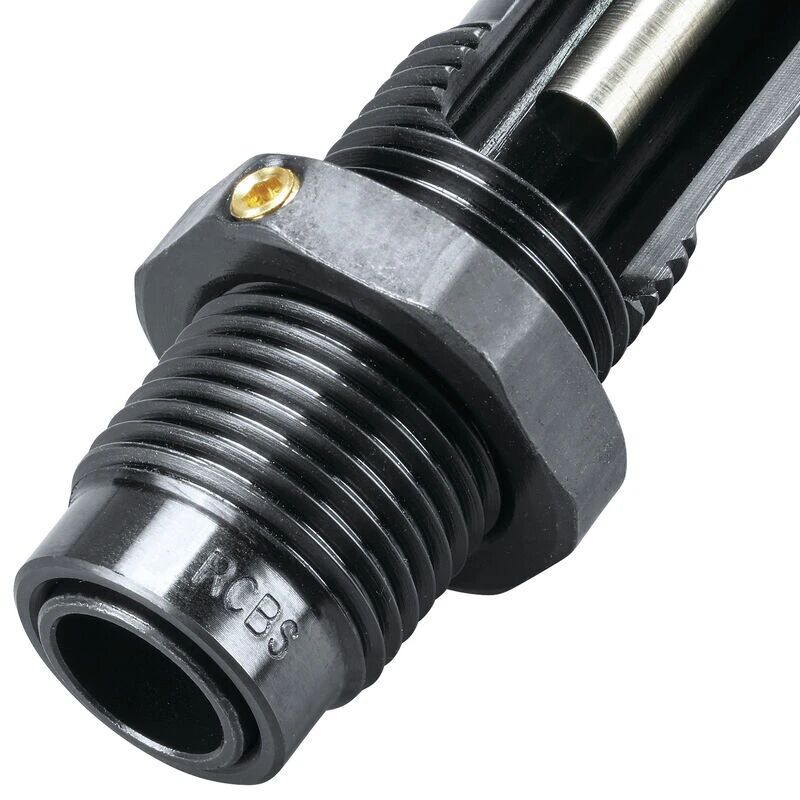

Bullet Seating Window: Incorporates a machined window on the side of the die body so reloaders can drop the bullet directly into the die. A free-floating internal sleeve catches and self-centers the bullet, ensuring perfect concentric alignment during seating.

Product Specifications

Brand: RCBS
Model/Part Number: R13508 (13508)
Calibre Compatibility: .270 Winchester (.270 Win)
Thread Interface: Standard 7/8"-14 thread pitch
Adjustment Increments: 0.001 inches per graduation mark
Material: Case-hardened steel with a polished, precision-reamed interior (sizing die) and a deep blued finish (seating die)
Power Requirements: None (manual mechanical reloading tool)

Who is the RCBS 270 Win Matchmaster Competition Full Length Die Set for?

Precision handloaders of .270 Winchester — requires a tool that enables ultra-precise seating adjustments, which this RCBS Matchmaster competition full length die set delivers through its micrometer adjustment knob operating at exact increments of 0.001 inches per graduation mark.
Long-range competitive shooters and benchrest competitors — seek absolute case uniformity and minimal brass runout by utilizing the self-centering bushing sizing system and standard 7/8"-14 thread pitch interface of this RCBS Matchmaster competition full length die set to fit standard reloading presses.

Less suitable for: Reloaders working with any cartridges other than the .270 Winchester, as this set is strictly compatible with the .270 Win case dimension, or high-volume utility reloaders who prefer standard, non-bushing full-length sizing dies that do not require purchasing separate interchangeable neck bushings to function.

SKU	RC39177LP
Model #	R13508
Brand	Rcbs
Shipping Weight	1.0000kg
