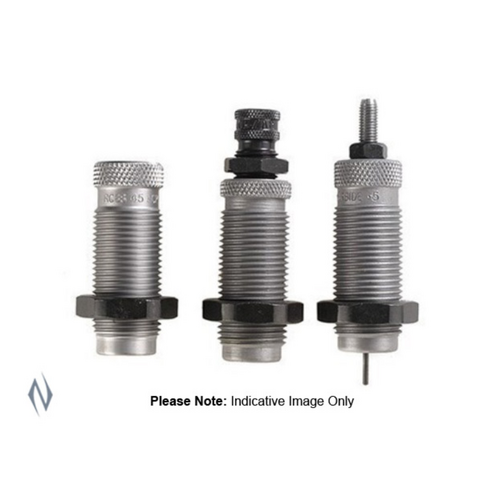

The RCBS 3-Die Carbide Taper Crimp Set for .380 Auto (Model R20415) is a premium pistol reloading die set designed for high-precision handloading of .380 ACP ammunition. Built from polished and heat-treated proprietary die steel, this three-die assembly provides the essential steps needed to resize, expand, seat, and crimp straight-walled handgun cartridges. With its industry-standard thread interface, the set integrates seamlessly with most single-stage, turret, and progressive reloading presses used by Australian handloaders.

Key Features

• Carbide Sizing Ring: The sizing die features a high-durability carbide insert that resizes brass cases without requiring case lubrication, eliminating greasy residue and streamlining the reloading workflow.
• Taper Crimp Seating Die: Because the .380 Auto cartridge headspaces on the case mouth, this set applies a precise taper crimp rather than a roll crimp, gently removing the flare and securing the bullet for reliable semi-automatic feeding.

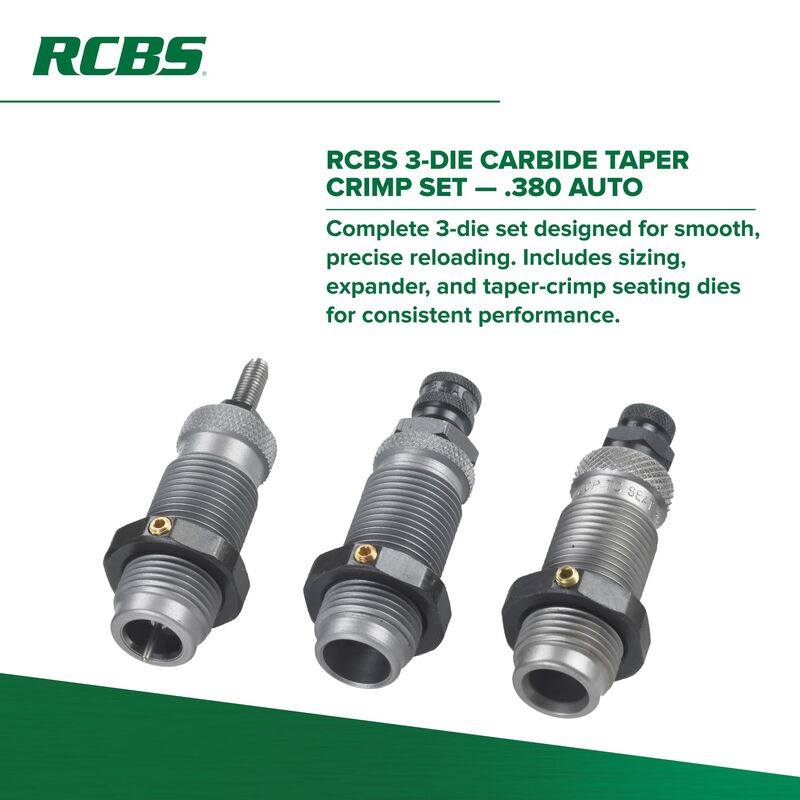

• Complete Three-Die Set: Includes a Carbide Sizing Die with an integrated decapping and depriming unit, an Expander Die to flare the case mouth, and a Bullet Seating Die with a built-in taper crimp function.
• Premium Construction: Crafted from hardened, polished steel to ensure longevity and minimize wear on both the dies and your cartridge brass.

Product Specifications

• Calibre Compatibility: .380 Auto (.380 ACP)
• Thread Interface: Standard 7/8"-14 thread
• Product Weight: 0.45 kg to 0.54 kg (1.0 to 1.2 lbs)
• Packaged Dimensions: Approximately 15.0 cm x 11.4 cm x 4.3 cm (5.91 in x 4.49 in x 1.69 in)
• Required Shellholder: RCBS Shellholder #10 (sold separately)
• Power Requirements: None (fully mechanical operation)

Who is the RCBS 380 Auto 3 Die Carbide Taper Crimp Set for?

• Handloaders preparing semi-automatic handgun ammunition — requires a dedicated taper crimp to ensure reliable feeding of the .380 Auto cartridge, utilizing this 0.45 kg to 0.54 kg pistol reloading die set which mounts securely via the industry-standard 7/8"-14 thread.
• High-efficiency reloaders seeking lubricant-free case sizing — can skip the case lubrication step entirely when loading .380 Auto brass by using the carbide sizing ring integrated into this 0.45 kg to 0.54 kg pistol reloading die set, which accelerates the reloading process on any press with a 7/8"-14 thread.
