What press thread size and shell holder are required to use the RCBS 416 Rem Mag Full Length Die Set?

This die set features a standard 7/8"-14 thread size, making it compatible with most single-stage and progressive reloading presses. To ensure precise and safe headspace tolerances when working with the .416 Remington Magnum cartridge, RCBS specifically recommends using the RCBS Shell Holder #4 (Item #RC09204) or Shell Plate #4 for progressive presses.

Can I use this die set for other large calibres like the .416 Rigby?

No, the R22701 die set is engineered strictly for the .416 Remington Magnum cartridge and must not be used to load different calibres like the larger .416 Rigby. Attempting to use these dies for mismatched cartridges can result in improper resizing, dangerous chamber pressures, and cartridge feeding failures.

Why is a full-length sizing die recommended over a neck-sizing die for dangerous game hunting?

While neck sizing can extend brass life for a single bolt-action rifle, dangerous game hunting requires absolute reliability in chamber feeding under high-stress conditions. The RCBS full-length sizer resizes spent bottleneck brass back to exact SAAMI minimum specifications and features built-in air vents to prevent hydraulic case denting, guaranteeing smooth and dependable chambering every time.

Does this reloading die set require any Australian electrical compliance certifications like SAA or RCM?

No electrical certifications are required for this product. Because the RCBS 416 Rem Mag Full Length Die Set is entirely mechanical and hand-operated with no electrical components, 240V compatibility, AU plugs, and SAA or RCM approvals do not apply.

How should I maintain the polished steel dies to prevent rust in humid Australian climates?

The die set is constructed from durable, heat-treated polished steel weighing approximately 1.3 lbs. To protect the metal from corrosion in humid coastal or outback environments, you should wipe the exterior and interior surfaces with a light coat of rust-preventative oil during long-term storage.

416 Rem Mag Dies - RCBS R22701

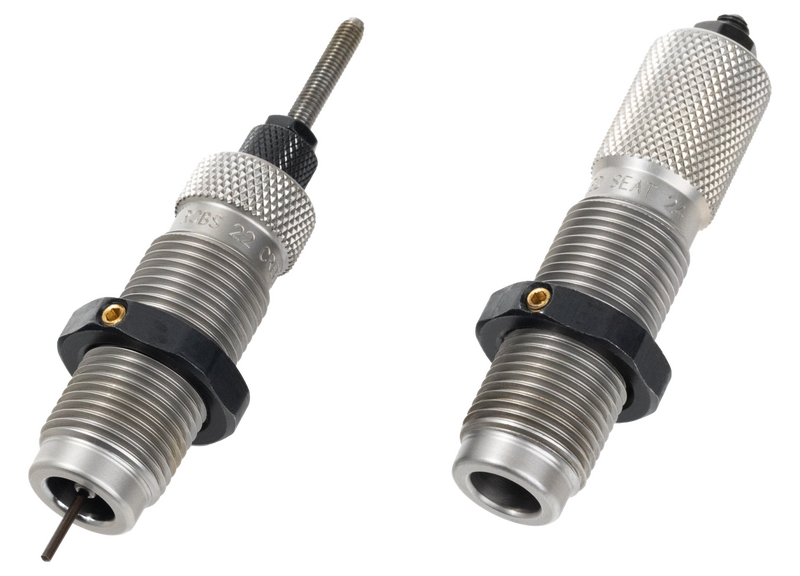

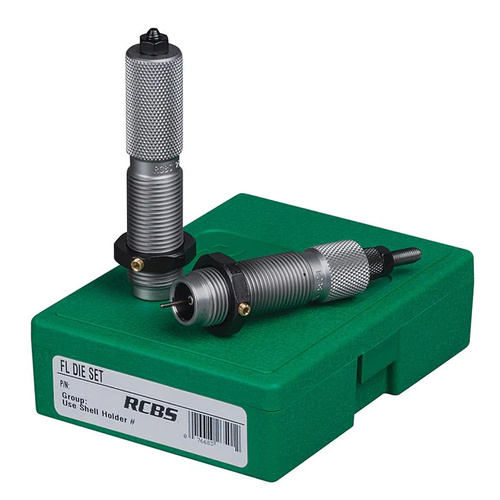

The RCBS 416 Rem Mag Full Length Die Set (Model: R22701) is a premium, mechanical two-die reloading set from the RCBS Group D category. It is specifically engineered to resize spent bottleneck brass cases to exact SAAMI minimum specifications and seat bullets for the .416 Remington Magnum cartridge. Constructed from polished, heat-treated steel, this completely hand-operated tool is designed to produce highly consistent ammunition suitable for heavy-recoiling dangerous game rifles. Because it operates purely mechanically without electrical components or wireless transmitters, it requires no SAA or RCM electrical certifications for Australian handloaders.

Key Features

Full-Length Sizing: The resizing die resizes the entire case body from shoulder to base, de-primes the spent primer using the integrated expander-decapping unit, and expands the neck to perfectly accept a new .416-calibre bullet.
Anti-Denting Design: Features built-in air vents to release trapped air, preventing hydraulic case denting from excess case lube during the resizing operation.
Bullet Seating and Crimping: The bullet seater die features an adjustable seater plug to seat the projectile to a specified depth, alongside an integrated roll crimper to secure the bullet in one motion.
Durable Construction: Made of polished, heat-treated steel to ensure longevity. A thin coat of rust-preventative oil is recommended for long-term storage in humid Australian climates.

Product Specifications

Model Number: R22701 (commonly cataloged as 22701)
Calibre Compatibility: .416 Remington Magnum only
Thread Size: Standard 7/8"-14 thread, compatible with most single-stage and progressive reloading presses
Net Weight: 1.3 lbs (approx. 0.59 kg)
Shipping Weight: 1.45 lbs
Box Dimensions: 5.9" L x 4.3" W x 1.6" H (approx. 15.0 cm x 10.9 cm x 4.1 cm)
Required Accessories (Sold Separately): RCBS Shell Holder #4 (Item #RC09204) or Shell Plate #4 (Item #RC88804) for progressive presses

Who is the RCBS 416 Rem Mag Full Length Die Set for?

Dangerous game hunters — require guaranteed chambering and absolute feeding reliability when reloading ammunition for dangerous game, which this 1.3 lbs RCBS full-length die set delivers by sizing bottleneck brass back to exact SAAMI minimum specifications.
Precision handloaders — utilize the standard 7/8"-14 thread size of this RCBS 416 Rem Mag Full Length Die Set to achieve highly consistent case sizing and bullet seating on their standard single-stage or progressive reloading presses.

Less suitable for: Handloaders seeking to load other large calibres such as the larger .416 Rigby, or shooters reloading exclusively for a single, specific bolt-action rifle who want to extend brass life; for those shooters, a dedicated neck sizing die is a more suitable option than a full-length sizing set.

SKU	RC39204LP
Model #	R22701
Brand	Rcbs
Shipping Weight	1.0000kg
