Can I use the RCBS Neck Expander Plug .338 as a standalone item in my reloading press?

No, this plug cannot be used on its own. It requires a dedicated RCBS Neck Expander Die body and a matching Plug Rod to function correctly in your reloading press. It is specifically precision-machined to thread onto standard RCBS expander rods.

What specific .338 calibre cartridges is this expander plug designed to handle?

The R39877 plug is engineered specifically for .338 calibre rifle cartridges, including popular rounds among Australian hunters and target shooters such as the .338 Lapua Magnum, .338 Winchester Magnum, and .338 Federal. It expands the inner case neck and flares the mouth to ensure proper bullet tension.

Why is this plug recommended when reloading cast lead bullets for my .338 rifle?

When loading cast lead bullets, this plug performs a vital two-in-one operation by expanding the inner neck diameter and slightly belling the case mouth. This slight flare prevents the sharp brass case edges from shaving off lead, wax, or copper plating as you seat the bullet, preserving both bullet weight and overall accuracy.

Are there any electrical or regulatory compliance requirements for this reloading component in Australia?

No, electrical and safety certifications such as SAA or RCM and Australian 240V plug requirements do not apply to this product. The RCBS Neck Expander Plug is an entirely mechanical, non-powered steel handloading component designed for benchtop use.

.338 Reloading Plug - RCBS R39877

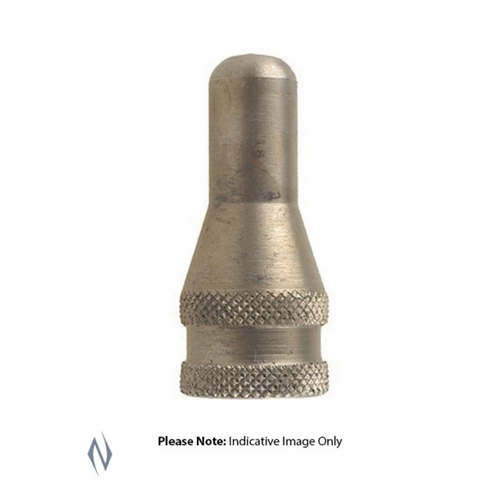

The RCBS Neck Expander Plug .338 (part number R39877) is a precision-engineered reloading component designed to prepare cartridge case necks for seating .338 calibre bullets. Operating entirely mechanically without electrical power, this component threads onto a compatible expander plug rod inside an RCBS Neck Expander Die body. In a single press stroke, it performs a dual-action operation: it expands the case neck's inner diameter to the exact size required for consistent bullet tension, while simultaneously adding a slight flare to the case mouth to ensure smooth bullet entry.

Key Features

Two-in-One Operation: Expands the internal neck diameter and flares the case mouth in a single stroke, streamlining the reloading process.
Cast Bullet Protection: The slight mouth flare prevents the sharp edges of the brass case from shaving away lead, wax, or copper plating from cast rifle bullets during seating.
Concentricity and Alignment: Ensures bullets sit straight when entering the seating die, which improves overall cartridge concentricity and accuracy.
Durable Construction: Made from hardened steel for a long service life during indoor bench reloading.

Product Specifications

Brand: RCBS
Model/Part Number: R39877 (39877)
Calibre: .338 inches
Weight: 0.0188 lbs (approximately 8.5 grams)
Dimensions: 3.55" L x 2.50" W x 0.70" H (9.0 cm x 6.4 cm x 1.8 cm)
Thread Compatibility: Designed to fit standard RCBS expander plug rods used in common 7/8"-14 reloading presses.

Who is the Rcbs Neck Expander Plug .338 for?

Handloaders using cast lead rifle bullets — prevents the shaving of lead, wax, or copper plating during seating by utilizing this specialized reloading neck expander plug to expand and flare case mouths to accommodate projectiles measuring .338 inches in diameter.
Precision rifle reloaders loading magnum cartridges — improves cartridge concentricity and bullet alignment for high-power cartridges like the .338 Lapua Magnum with an ultra-lightweight reloading neck expander plug weighing just 0.0188 lbs to establish uniform neck tension.

Less suitable for: reloaders working with cartridge calibres other than the .338-inch standard, or those who do not own the required RCBS Neck Expander Die body and matching Plug Rod; these users require a different calibre-specific neck expander plug or a complete standalone expander die set matching their specific calibre dimensions.

SKU	RC39241LP
Model #	R39877
Brand	Rcbs
Shipping Weight	1.0000kg
