What additional handles and accessories do I need to get started with the RCBS 09-124-CN bullet mould?

This 2-cavity mould requires a set of RCBS 2-Cavity Mould Handles (Item #80025) and an RCBS Top Punch #402 for sizing and lubrication operations, all sold separately. For melting your lead alloy, you will also need a separate casting furnace or burner.

Does this bullet mould require any special Australian electrical certifications like SAA or RCM?

No, regulatory compliance standards such as SAA approval or RCM certification do not apply to this product. Because it is a completely passive, hand-operated cast-iron mechanical block, it contains no electrical components, wiring, or wall plugs.

What is the exact bullet weight and diameter cast by model R82027?

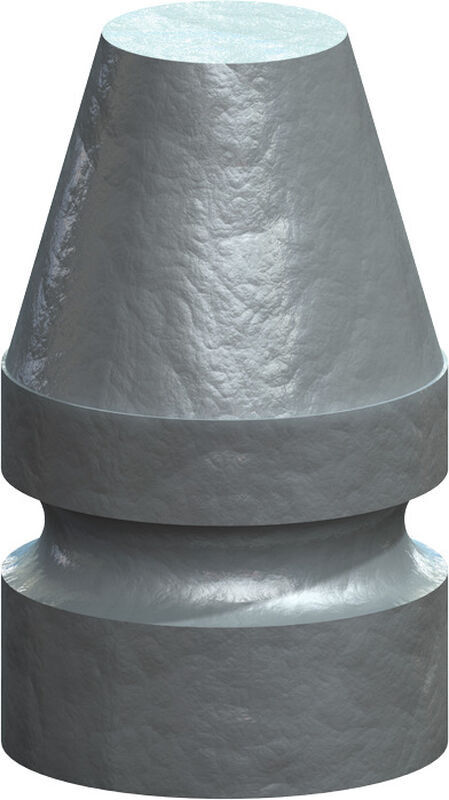

This mould casts a 9mm bullet with a nominal diameter of .356 inches and a weight of 124 grains with a Conical Nose profile. Keep in mind that the final cast weight will vary slightly depending on the specific lead alloy composition you use, as harder alloys with tin and antimony cast slightly lighter.

Can I use this mould for .38 Special or .357 Magnum cartridges?

No, this mould is strictly engineered within a working envelope to cast .356-inch diameter bullets specifically for 9mm Luger ammunition. Firearms chambered in .38 Special or .357 Magnum typically require larger diameters between .357 and .358 inches, meaning a different caliber mould must be selected.

9mm Bullet Mould - RCBS R82027

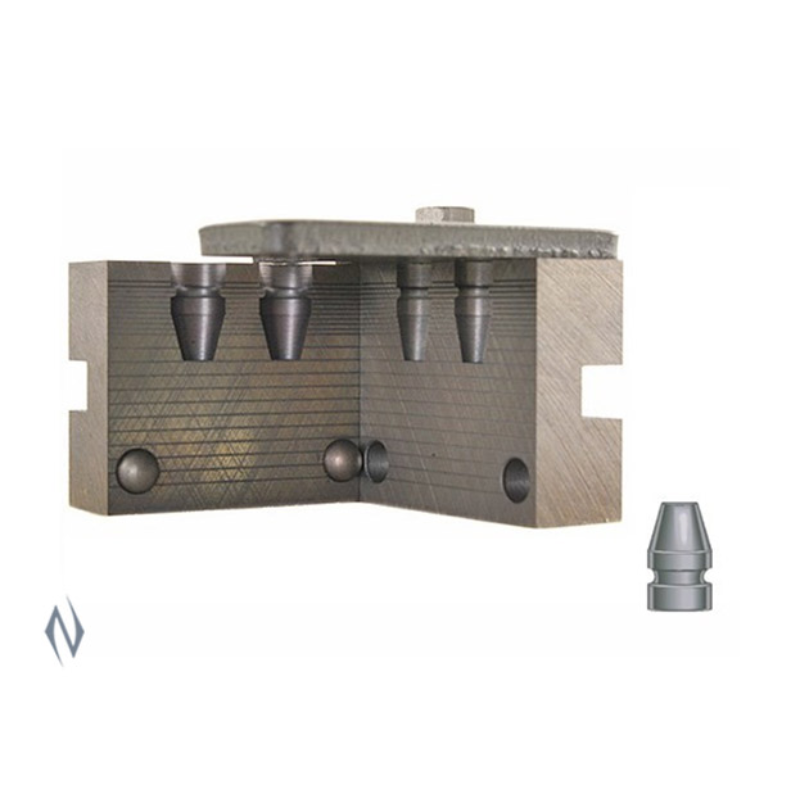

The RCBS Pistol Conical Nose 2-Cavity Bullet Mould 9mm (.356") 124 Grain (Model R82027) is a premium, hand-operated casting block engineered for reloading enthusiasts. Milled from pearlitic, malleable cast iron blocks and paired with high-grade tool steel construction, this tool is built for structural stability, thermal consistency, and long-term durability. It features a 3/16-inch-thick solid steel sprue plate to ensure clean, flat-cut bullet bases. As a completely passive mechanical device, this mould does not feature any electrical components, meaning regulatory compliance standards like 240V compatibility, SAA approval, or RCM certification do not apply to this product. To cast bullets in the Australian market, users must melt their lead alloy using a separate heat source, such as a 240V casting furnace or gas burner.

Key Features

Precision Ground Mating: Cast iron mould blocks are ground perfectly square prior to CNC machining to ensure flat mating surfaces and prevent casting lines.
Hardened Steel Alignment Pins: Features heavy-duty alignment pins to keep block halves perfectly aligned, ensuring consistent projectile roundness cast after cast.
Corrosion Resistant Finish: The blocks undergo a specialised heat-bluing process after machining to help prevent rust and corrosion in humid storage environments.
Clean Base Cuts: Equipped with a 3/16-inch-thick steel sprue plate secured by tempered spring washers and screws for flat, uniform bullet bases.
Non-Gas Check Profile: Casts a 9mm (.356" diameter) conical nose (CN) bullet that does not require the added step or expense of fitting a gas check.

Specifications

Brand: RCBS
Model Number: 82027 (R82027)
Manufacturer Code: 09-124-CN
Capacity: 2-Cavity
Bullet Caliber/Diameter: 9mm (.356" diameter)
Nominal Bullet Weight: 124 Grains (final weight is dependent on the lead alloy composition)
Nose Profile: Conical Nose (CN)
Shipping Weight: Approximately 0.98 lbs (0.44 kg)
Required Accessories (Sold Separately): Requires RCBS 2-Cavity Mould Handles (#80025) and RCBS Top Punch #402 for bullet sizing and lubrication operations.

Who is the Rcbs Bullet Mould 09-124-Cn for?

Handloaders casting for 9mm target shooting — seeking to cast their own highly consistent 9mm (.356" diameter) projectiles, this 2-cavity lead bullet mould delivers precise 124-grain conical nose bullets for accurate paper-punching and cost-effective plinking.
Handgun competitors requiring economical practice ammunition — seeking to lower the cost of high-volume training, this RCBS bullet mould produces 124-grain, 9mm (.356" diameter) non-gas check projectiles, allowing shooters to recycle lead alloy into competitive-grade handgun ammunition.

Less suitable for: Handloaders shooting calibers that require larger diameters, such as .38 Special or .357 Magnum which require .357" to .358" molds, or for commercial-scale manufacturing where high-output 4-cavity or 6-cavity gang moulds are necessary to meet production demands.

SKU	RC39248LP
Model #	R82027
Brand	Rcbs
Shipping Weight	1.0000kg
