What is the nominal as-cast diameter and bullet weight for the RCBS 9mm-124-RN mould?

This 2-cavity pearlitic malleable cast iron mould is engineered to drop round nose projectiles with a nominal diameter of .356 inches and a weight of 124 grains. The actual dimensions can vary slightly depending on the specific lead alloy mixture you use during your casting sessions.

Are standard mould handles and top punches included with model 82062?

No, standard mould handles and the RCBS #401 Top Punch are not included and must be purchased separately. You will also need to pair this mechanical tool with a compatible lead melting furnace, such as a 240V-compatible melting pot suitable for Australian workshops.

Does this mechanical casting mould require any electrical certifications or SAA approval for use in Australia?

Because the RCBS Model 82062 is a purely mechanical casting tool made from solid cast iron and steel, it contains no electrical components. Therefore, electrical certifications such as SAA approval or the Regulatory Compliance Mark (RCM) are not applicable.

Is this 2-cavity mould suitable for high-volume reloaders casting thousands of rounds?

While it is exceptionally well-suited for target shooting and action pistol disciplines like IPSC, a 2-cavity mould can lead to time constraints and physical fatigue if you need to produce thousands of rounds in a single sitting. High-volume reloaders may want to consider a 4- or 6-cavity alternative for larger batches.

9mm Bullet Mould - RCBS R82062

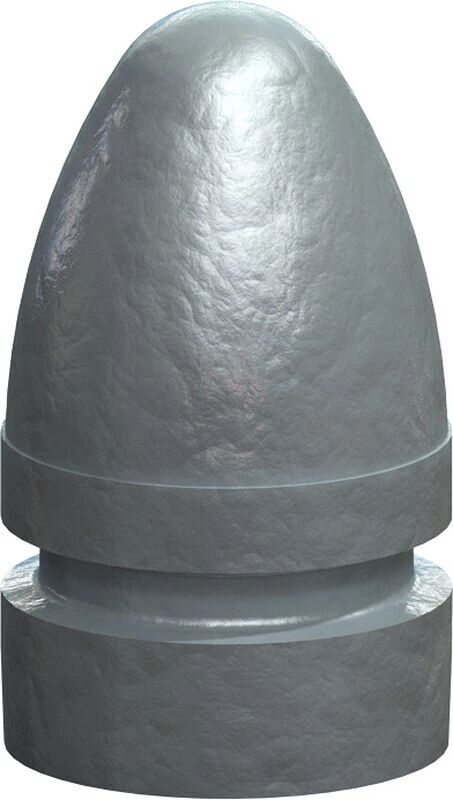

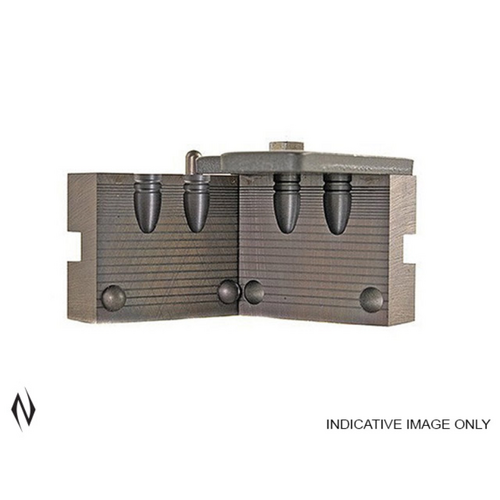

The RCBS Bullet Mould 9mm-124-RN (Model 82062) is a heavy-duty, double-cavity bullet casting mould designed for precision handloaders. Machined from solid, pearlitic malleable cast iron blocks, this mould offers superior heat retention to ensure a stable casting temperature and highly repeatable, clean castings. It is designed to cast 9mm (.35-caliber) projectiles with a nominal diameter of .356 inches (9.04 mm) and a finished weight of 124 grains (8.04 grams). Because this is a mechanical casting tool, it does not require electrical power, SAA/RCM certifications, or an Australian power plug; users will pair it with a separate lead melting furnace to liquefy their casting alloy.

Key Features

Cast Iron Construction: Pearlitic malleable cast iron blocks absorb and retain heat evenly, preventing cold-shunts and ensuring consistent bullet fill.
Steel Sprue Plate: Features a 3/16-inch (approx. 4.76 mm) thick solid steel sprue plate held by tempered steel spring washers and screws to resist warping under high-heat casting environments.
Precise Alignment: Hardened steel alignment pins keep the blocks perfectly mated over extended use to prevent bullet parting-line flashing.
Gas Check Design: Built specifically to accommodate gas check application for shooters looking to drive lead bullets at higher velocities.
Reliable Feeding: The round nose (RN) profile provides smooth feeding and reliable cycling through semi-automatic handguns.

Product Specifications

Manufacturer Model: 82062
Capacity: 2-Cavity
Calibre/Diameter: 9mm (.356 inches / 9.04 mm nominal)
Weight: 124 grains (8.04 grams nominal)
Profile: Round Nose (RN)
Shipping Weight: 0.98 lbs (0.44 kg)
Required Accessories: Mould handles and RCBS #401 Top Punch are required for operation (sold separately).

Who is the Rcbs Bullet Mould 9mm-124-Rn for?

Action pistol and IPSC competitors — who require a reliable casting tool to produce highly consistent, smooth-feeding projectiles with a precise nominal diameter of .356 inches to maintain cycling reliability in semi-automatic handguns.
Target and plinking handloaders — who require a double-cavity bullet mould to cast their own 124-grain projectiles in custom alloys to reduce ammunition costs during high-frequency range practice.

Less suitable for: High-volume reloaders needing to cast thousands of rounds in a single sitting, who would be better served by a high-capacity four-cavity or six-cavity bullet mould to reduce physical fatigue; or shooters requiring a bullet diameter larger than .357 or .358 inches, who will need a different mould model or a dedicated sizing die.

SKU	RC39254LP
Model #	R82062
Brand	Rcbs
Shipping Weight	1.0000kg
