Is the RCBS Flash Hole Deburring Tool 6mm Model R88103 compatible with Australian electrical standards and require an SAA or RCM certification?

No electrical certification is required for the RCBS R88103. Because it is a fully manual hand tool with no electrical components, it does not use a 240V plug and is exempt from Australian SAA or RCM electrical safety compliance laws.

Can this specific tool be used for calibres other than 6mm, such as .308 or .223?

Model R88103 is strictly tailored for 6mm calibre brass cartridges (.243/6mm variants) and features a 6mm specific case pilot stop collar. To work on other calibres, users would need to acquire alternative pilot stops or dedicated tools designed for those specific dimensions.

How do I ensure that I do not accidentally cut too deeply into the web of the brass case during operation?

The tool includes an adjustable stop collar that provides precision depth control. By locking down the collar correctly, you limit the hardened steel cutter to shaving only the internal metal burrs from the flash hole, preventing hazardous thinning of the cartridge head.

How frequently will I need to perform this deburring process over the lifespan of my 6mm brass?

This brass preparation procedure only needs to be completed once over the entire reloading lifespan of a specific piece of brass. Once the internal metal burrs are shaved and the flash hole geometry is standardized, no further deburring is required for that casing.

6mm Flash Hole Deburring Tool - RCBS R88103

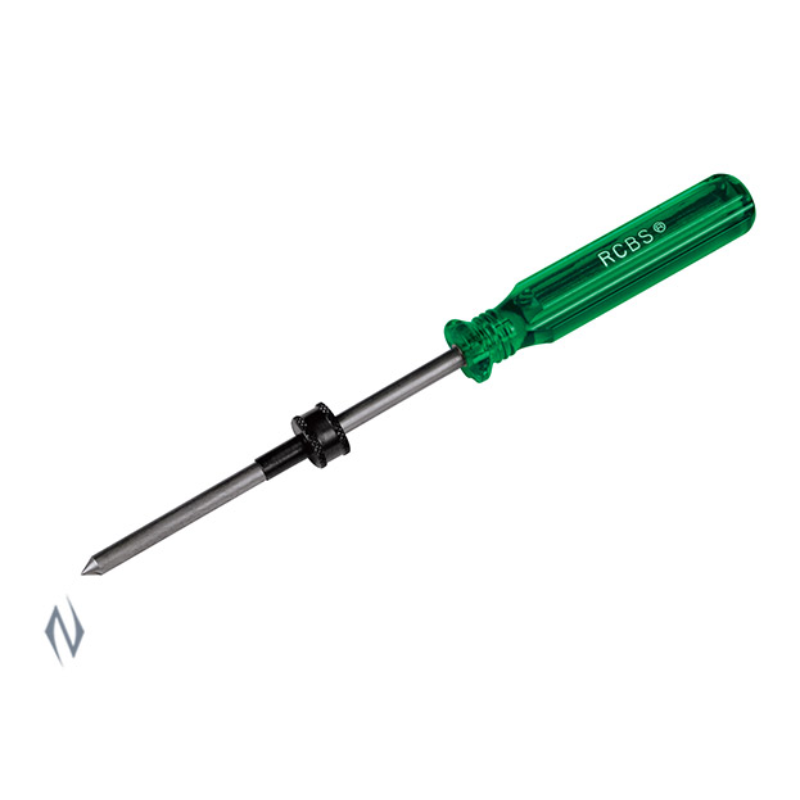

The RCBS Flash Hole Deburring Tool 6mm (Model R88103) is a precision manual hand tool engineered to standardise the flash hole geometry of cartridge cases. During brass manufacturing, the mechanical punching of flash holes often leaves jagged internal metal burrs inside the case web. This tool cleanly shaves off these internal burrs to ensure uniform, consistent primer ignition and minimise velocity variation. Because this manual tool operates entirely without electrical components, it requires no external power source, battery charging, or 240V compatibility certifications, making it a reliable addition to any Australian precision reloading bench.

Key Features

Self-Centering Pilot Stop Collar: Features an integrated 6mm pilot collar that slips into the case mouth, centering the cutting rod perfectly down the cartridge centerline.
Adjustable Depth Control: Allows the user to lock down the cutter so it trims only the internal burr without cutting deeply into the web of the brass, preventing hazardous thinning of the cartridge head.
Hardened Steel Cutter: Equipped with durable, precision-ground steel cutting edges designed to maintain sharpness over extended manual use.
One-Time Processing: This flash hole prep procedure only needs to be completed once over the entire reloading lifespan of a specific piece of brass.

Product Specifications

Model/Part Number: R88103 (also referred to as 88103)
Calibre Compatibility: Strictly tailored for 6mm calibre brass cartridges (.243/6mm variants)
Product Weight: 0.080 lbs to 0.10 lbs (approximately 36 to 45 grams)
Shipping Dimensions: Approximately 6.4 inches (162 mm) in length, 2.5 inches (64 mm) in width, and 1.2 inches (30 mm) in height/thickness
Power Requirement: Fully manual hand tool; no electricity or batteries required

Who is the Rcbs Flash Hole Deburring Tool 6mm for?

Precision handloaders processing 6mm cartridge brass — utilizes the integrated 6mm case pilot stop on this 6mm flash hole deburring tool to guide the cutting rod precisely down the centerline of 6mm calibre brass cartridges to standardise flash hole geometry.
Long-range rifle shooters seeking to minimise velocity variation — requires the lightweight 0.080 lbs to 0.10 lbs manual 6mm flash hole deburring tool to hand-shave internal manufacturing burrs from 6mm calibre brass cartridges, helping to secure consistent ignition and tighter long-range groups.

Less suitable for: processing calibres other than 6mm (which require alternative pilot stops) or high-volume processing where hand fatigue is a concern, where a motorized electric case preparation center is better suited.

SKU	RC39264LP
Model #	R88103
Brand	Rcbs
Shipping Weight	1.0000kg
