Which case trimmers are compatible with the RCBS 90277 3-way cutter assembly?

The assembly is designed to fit directly onto the cutter shafts of the RCBS Trim Pro Manual, Trim Pro Power, RCBS Rotary Case Trimmers, and the RCBS Universal Case Prep Center. If you are using a powered chassis like the Trim Pro-2 Power Case Trimmer in Australia, ensure the unit is configured for standard 240V mains power.

Can I use this .20 caliber cutter assembly on smaller .17 caliber or larger .22 caliber cases?

No, this model features a hard calibration threshold strictly built for .20 caliber cartridge cases and will not function properly on smaller .17 caliber necks or larger diameters such as .22, 6mm, or .30 caliber. For other calibers, you must swap to the corresponding caliber-specific 3-way cutter assembly, such as Model 90276 for .17 Cal or Model 90278 for .22 Cal.

.20 Cal Cutter - RCBS R90277 Trim Pro

Q: What operations does the RCBS Trim Pro 3-Way Cutter Complete Assembly .20 Cal perform in a single pass?

This specialized cutting head trims your brass case length while simultaneously chamfering the inner neck and deburring the outer neck edge. By combining these three steps into one smooth operation, it significantly streamlines high-volume brass case preparation workflows for .20 caliber ammunition like the .204 Ruger.

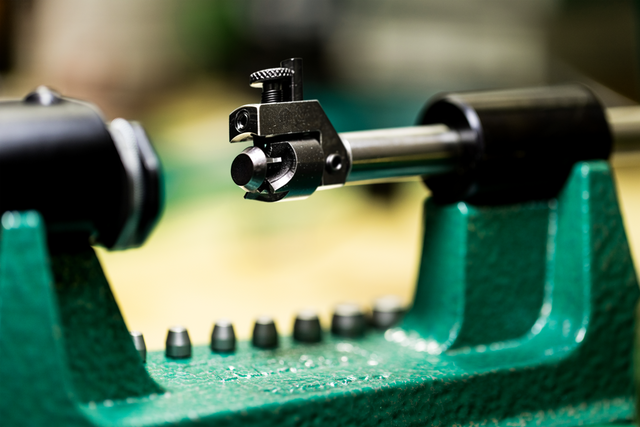

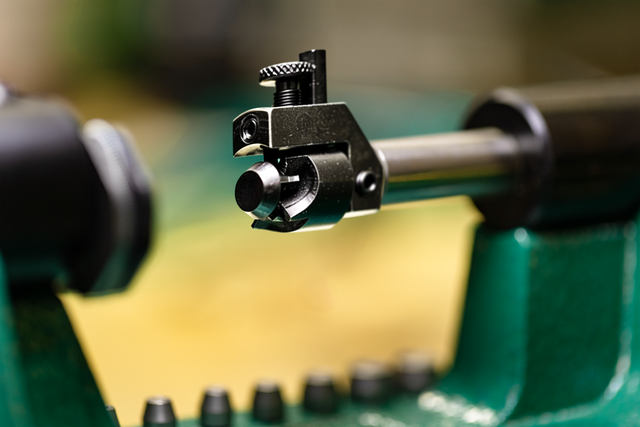

The RCBS Trim Pro 3-Way Cutter Complete Assembly .20 Cal (Model 90277) is a specialized mechanical case preparation accessory designed to streamline the reloading workflow. Engineered to attach directly to the cutter shafts of the RCBS Trim Pro Manual, Trim Pro Power, RCBS Rotary Case Trimmers, and the RCBS Universal Case Prep Center, this tool consolidates three individual steps into a single operation. It trims brass cases to length, chamfers the inner case neck, and deburrs the outer neck edge simultaneously, eliminating the need for separate hand-tool steps.

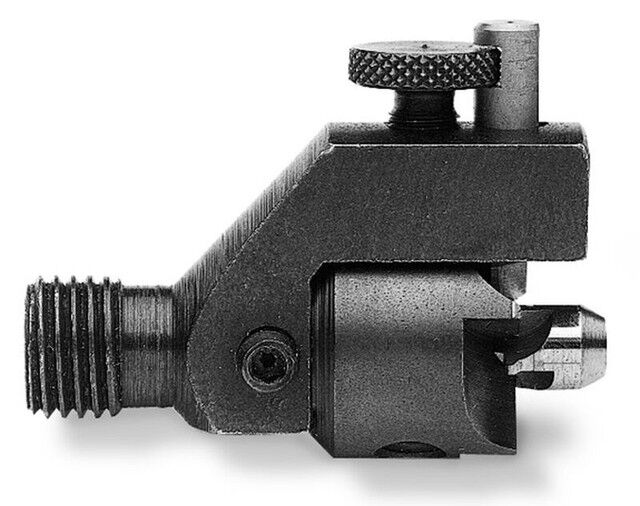

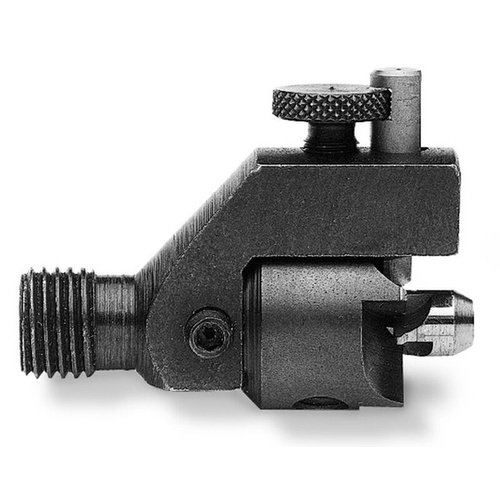

Constructed from hardened steel with a durable black finish, this non-powered cutter head assembly features a unique three-blade layout. The interior blades bevel the case mouth for smooth bullet seating, while the exterior blade cleanly removes outer burrs. As a purely mechanical accessory, it operates without electrical power, meaning it does not require Australian SAA approval or Regulatory Compliance Mark (RCM) certification. If adapted to a powered trimmer chassis in Australia, users must ensure the power unit itself is compatible with Australian 240V grids.

Key Features

Simultaneous Three-in-One Operation: Trims, chamfers, and deburrs brass cartridge cases in a single pass to save processing time.
Caliber-Specific Design: Includes the dedicated guide pilot required specifically for .20 caliber case necks.
Independent Adjustment: Inside bevel cutting depth can be set independently of the trimmer’s overall case length stop.
Robust Construction: Made of hardened steel with a black finish for long-lasting wear resistance.
Compact and Lightweight: Weighs just 0.06 lbs (approximately 27 grams), minimizing mass on the cutter shaft.

Specifications

Model/SKU: 90277
Caliber Compatibility: .20 caliber (e.g., .204 Ruger)
Weight: 0.06 lbs (approx. 27 grams)
Dimensions: Approx. 3.6 x 2.3 x 2.15 inches (approx. 9.1 x 5.8 x 5.5 cm)
Material: Hardened steel with a black finish
Power Requirements: None (fully mechanical)
Compatibility: Fits RCBS Trim Pro Manual, Trim Pro Power, Rotary Case Trimmers, and Universal Case Prep Center

Who is the Rcbs Trim Pro 3 Way Cutter Complete Assy .20 Cal for?

Reloaders processing .20 caliber rifle ammunition — requires a dedicated .20 caliber pilot to guide the blades, making this reloading case trimmer cutter essential for processing .20 caliber brass cases like the .204 Ruger while adding only 0.06 lbs of weight to the trimmer shaft.
High-volume reloaders seeking to streamline brass case preparation workflows — optimizes workflow speed by using a three-blade reloading case trimmer cutter to complete trimming, chamfering, and deburring in one motion on .20 caliber cases, eliminating two manual steps.

Less suitable for: cartridge cases outside of the strict .20 caliber threshold, such as smaller .17 caliber necks or larger diameters like .22, 6mm, or .30 caliber. For these applications, a different caliber-specific 3-way cutter assembly or a standard trimmer head with matching pilots must be used instead, as the standard replacement cutter head (Model 90251) does not support the .17 or .20 caliber pilots.

SKU	RC39281LP
Model #	R90277
Brand	Rcbs
Shipping Weight	1.0000kg
