What specific cartridges are compatible with the RCBS Expander Decapping Unit 7mm (Model 09809)?

This unit is precision-machined for standard 7mm (.284 inch) bottleneck rifle cartridges using Boxer-primed brass. It is fully compatible with popular Australian hunting and target calibres such as 7mm-08 Remington, 7mm Remington Magnum, .280 Remington, and 7x57mm Mauser when used in standard RCBS full-length or neck sizing dies.

Can I use this 7mm decapping unit with RCBS MatchMaster or competition bushing dies?

No, model 09809 is incompatible with proprietary RCBS MatchMaster series dies, which require specific MatchMaster TiCN assemblies. It is also unsuitable for competition bushing-style dies that rely on separate neck bushings without standard expander balls.

Does the RCBS 09809 expander-decapping unit require any Australian electrical or regulatory compliance?

No, electrical compliance is not applicable to this product. The RCBS Expander Decapping Unit is a 100% mechanical, non-powered reloading component, meaning certifications such as SAA or RCM and 240V mains compatibility are not required for use in your Australian reloading workshop.

Will the decapping pin work on Berdan-primed brass commonly found in surplus ammunition?

No, this unit is designed exclusively for standard Boxer-primed brass featuring a single central flash hole. Attempting to use the standard headed decapping pin on Berdan-primed cases, which feature dual off-centre flash holes, will result in a bent or sheared pin.

7mm Decapping Unit - RCBS R9809

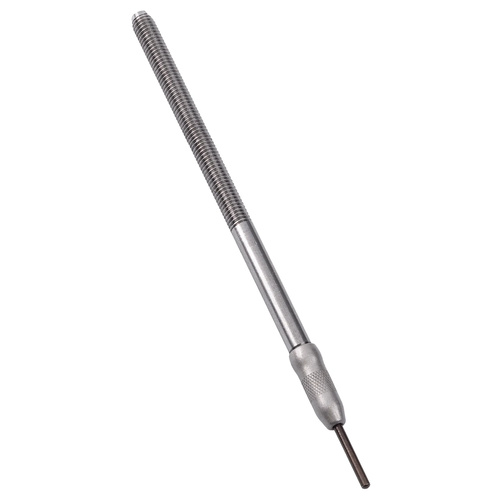

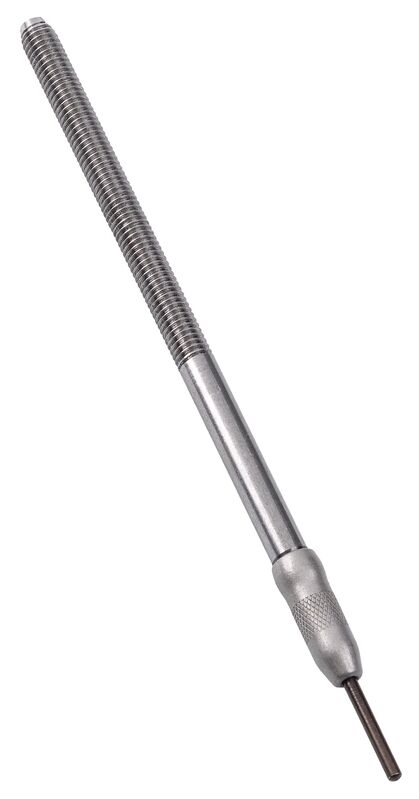

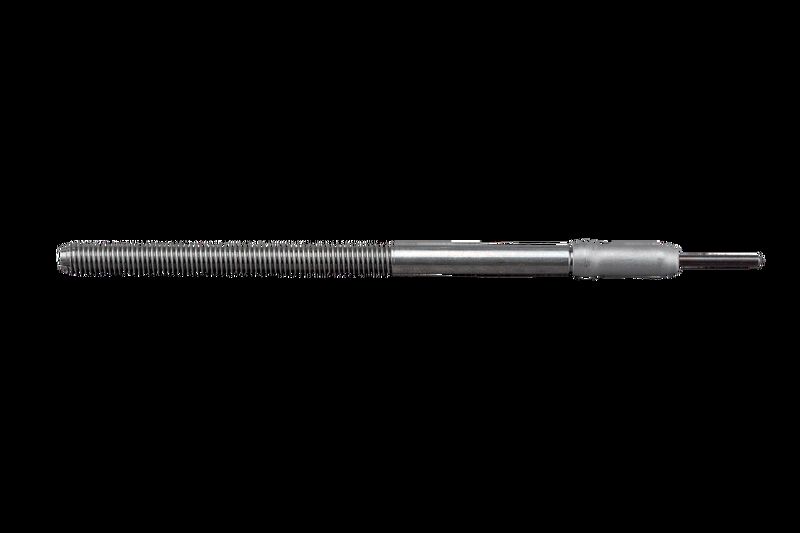

The RCBS Expander Decapping Unit 7mm (Model: 09809 / R9809) is an OEM replacement internal assembly engineered for standard RCBS bottleneck rifle full-length and neck sizing dies. Constructed from precision-machined hardened steel, this purely mechanical reloading tool performs two essential case preparation tasks in a single press stroke: expelling spent Boxer primers with the decapping pin and expanding the case neck to uniform 7mm (.284") internal dimensions using the integrated expander ball. It serves as a direct drop-in replacement for bent, worn, or broken decapping assemblies, maintaining cartridge concentricity and minimising neck runout during handloading.

Key Features

Dual-Action Case Prep: Simultaneously ejects spent Boxer primers and uniforms internal case neck diameter to 7mm (.284") specifications during the press cycle.
Hardened Steel Construction: Machined from durable, hardened steel to withstand standard benchtop press sizing forces without flexing.
OEM Fit & Alignment: Direct drop-in compatibility for standard RCBS 7mm bottleneck rifle sizing dies to ensure concentric neck expansion.
Complete Internal Unit: Comes fully assembled with the threaded expander rod, 7mm expander ball, and standard headed decapping pin.
Non-Powered Operation: Entirely mechanical component with zero electrical power requirements, operating in normal indoor workshop and reloading bench environments.

Product Specifications

Calibre Compatibility: 7mm (.284 inch) bottleneck rifle cartridges (including 7mm-08 Remington, 7mm Remington Magnum, .280 Remington, 7x57mm Mauser, 7mm WSM, 7x64 Brenneke, and .284 Winchester)
Manufacturer Part Number (MPN): 09809 (R9809 / RC09809)
Included Components: Threaded decapping/expander rod, 7mm (.284") expander ball, headed decapping pin
Material: Hardened steel
Packaging Dimensions: Approximately 15.2 × 5.1 × 2.5 cm (6 × 2 × 1 in)
Total Weight: Approximately 45–60 g
Primer Pocket Compatibility: Standard Boxer-primed cases only
Cycle Capacity: Single-case operation per press stroke

Who is the RCBS Expander Decapping Unit 7mm for?

7mm Remington Magnum handloaders — requires a dedicated 7mm (.284") expander ball and decapping pin assembly to punch spent primers and size large magnum case necks in standard RCBS full-length sizing dies.
7mm-08 Remington reloaders — relies on a hardened steel reloading die decapping assembly precisely dimensioned to 7mm (.284 inch) to uniform internal neck dimensions and maintain concentricity across high-volume brass processing.
7x57mm Mauser handloading enthusiasts — needs a direct-fit OEM replacement decapping unit with a 7mm (.284") expander to restore damaged rods and prevent bench downtime during classic rifle cartridge reloading.

Less suitable for: Non-7mm bottleneck calibres smaller or larger than 7mm (.284 inch) (such as .270 or .30 calibre brass), Berdan-primed cartridge cases with dual off-centre flash holes, or RCBS MatchMaster and competition bushing dies; these applications require calibre-matched decapping rods, hydraulic decappers, or dedicated bushing-style decapping assemblies.

SKU	RC39527LP
Model #	R9809
Brand	Rcbs
Shipping Weight	1.0000kg
