Will the Redding #13 Shellholder fit my single-stage reloading press from RCBS or Lee?

Yes, the Redding #13 Shellholder is engineered with an industry-standard universal snap-in ram interface. It is fully compatible with standard single-stage and turret presses from major manufacturers including Redding, RCBS, Lyman, Hornady, and Lee.

Which specific handgun and surplus calibres are compatible with the Redding #13 Shellholder?

This shellholder is strictly constrained to cartridge rims matching the approximately 0.392-inch / 9.96 mm rim envelope of the 9mm Luger family. It officially fits 9mm Luger, 9mm Makarov, .38 Super Auto, 7.62x25mm Tokarev, .30 Luger, and .41 Action Express.

Is a firearm licence or special regulatory permit required to purchase this shellholder in Australia?

No, the Redding #13 Shellholder is an unregulated mechanical reloading tool accessory across all Australian states and territories. You do not require a firearm licence endorsement or permit to purchase or possess it.

How do I install and remove the shellholder quickly during high-volume reloading sessions?

The Redding #13 features exterior knurling around the rim for positive grip, allowing you to easily install and remove it from your press ram by hand without tools, even when your fingers are oily from case lube such as Redding Imperial Sizing Die Wax.

9mm Reloading Shellholder - Redding 11013

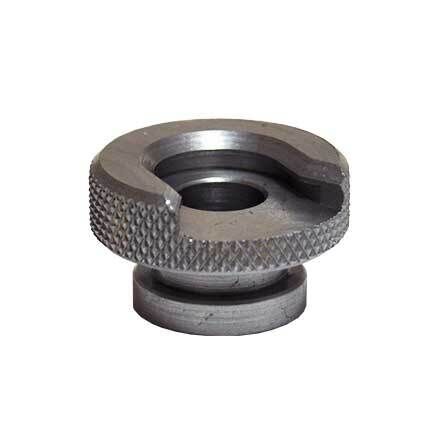

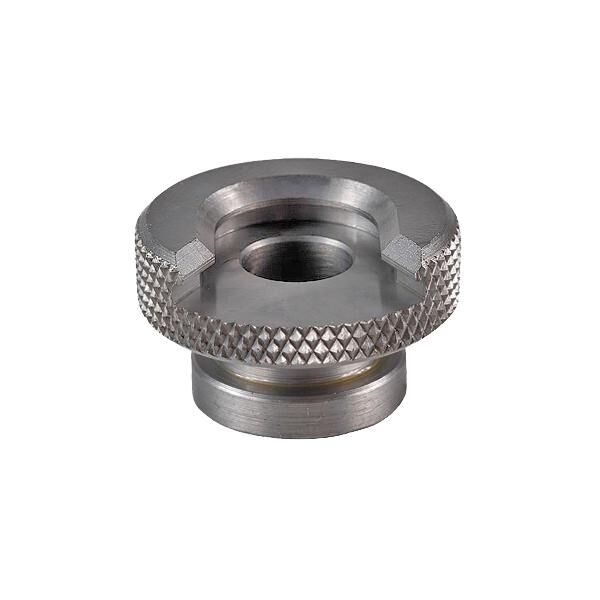

The Redding #13 Shellholder (Model 11013) is a precision-machined reloading accessory designed to secure metallic cartridge cases during single-stage and turret press operations. Constructed from heat-treated, hardened carbon steel, it maintains exact alignment between the cartridge case and the reloading die throughout resizing, decapping, expanding, priming, bullet seating, and crimping steps. It features a universal snap-in base that fits standard press rams across major reloading press manufacturers, holding brass with a standard industry nominal deck height of 0.125 inches (3.175 mm).

Key Features

E-Z Feed Tapered Entry: Designed with a precision-tapered slot profile to facilitate fast, smooth case insertion and extraction, preventing case rim snagging during reloading cycles.
Knurled Outer Rim: Features aggressive exterior knurling for positive hand grip, allowing fast, tool-free installation and removal from the press ram even with oily or lubricated fingers.
Hardened Steel Construction: Machined from solid carbon steel and heat-treated to withstand high sizing pressures without rim deformation or dimensional deflection.
Universal Compatibility: Fits standard snap-in single-stage and turret press rams for single-case retention at 1 case per stroke.

Specifications

Part Number: 11013
Material: Heat-treated, hardened carbon steel
Deck Depth (Deck Height): Standard nominal 0.125 inches (3.175 mm)
Packaged Weight: Approximately 30 to 50 g
Capacity: Single-case retention (1 case per press stroke)
Power Requirements: None (manual reloading tool)
Calibre Compatibility: 9mm Luger (9x19mm Parabellum), .38 Super Auto, 9mm Makarov (9x18mm), 9mm Steyr, 7.62x25mm Tokarev, .30 Mauser, .30 Luger (7.65x21mm Parabellum), 7x33mm SAKO, and .41 Action Express (.41 AE)

Who is the Redding #13 Shellholder - 9mm for?

High-volume 9mm Luger handgun reloaders — Requires a hardened steel reloading press shellholder with an exact 0.125-inch (3.175 mm) nominal deck depth to maintain uniform sizing dimensions and square alignment with standard 9x19mm handgun dies.
Reloaders processing .38 Super Auto cartridges — Utilises the standard 0.125-inch (3.175 mm) deck height to reliably support the semi-rimmed case profile without rim slippage during high-pressure sizing strokes.
Shooters reloading surplus calibres like 7.62x25mm Tokarev — Relies on a standard single-stage shellholder built to the 0.125-inch (3.175 mm) deck specification to correctly align bottlenecked handgun brass with the decapping and resizing dies.

Less suitable for: Progressive press operations requiring multi-station rotary shellplates, or cartridges with base dimensions outside the ~0.392-inch (9.96 mm) rim envelope, which require dedicated rotary progressive shellplates or alternative calibre-specific shellholder sizes.

SKU	RD41449LP
Model #	11013
Brand	Redding
Shipping Weight	1.0000kg
