What cutter interface and shank size does the Redding 15168 pilot require?

The Redding 17 Cal. Case Trimmer Pilot features a 5/32-inch shank diameter, which is specifically required for small-bore calibres like .17. Because standard Redding pilots for .22 calibre and larger use a larger 3/16-inch shank, this pilot must be paired with a 5/32-compatible trimmer cutter head such as the Redding 14040 TiN cutter.

What specific .17-calibre cartridges is this pilot designed to fit?

This pilot is strictly engineered for small-bore .17-calibre centrefire rifle cartridges, such as the .17 Hornet, .17 Remington, and .17 Fireball. With a pilot diameter of approximately .168 to .169 inches, it is sized slightly under standard bullet diameter to slide smoothly into the case mouth without binding.

Are there any Australian electrical safety certifications or power requirements for this tool?

No, there are no electrical requirements, power cords, or SAA/RCM safety certifications needed for this product. The Redding case trimmer pilot is a purely mechanical, non-powered lathe accessory designed for manual or hand-cranked case trimming benches.

17 Cal Case Trimmer Pilot - Redding 15168

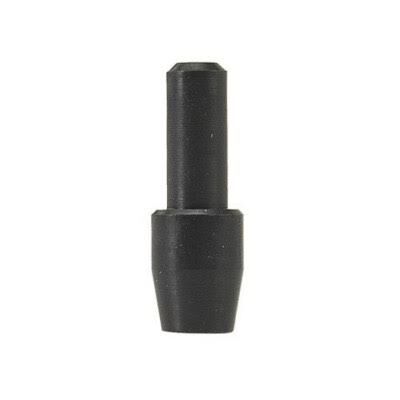

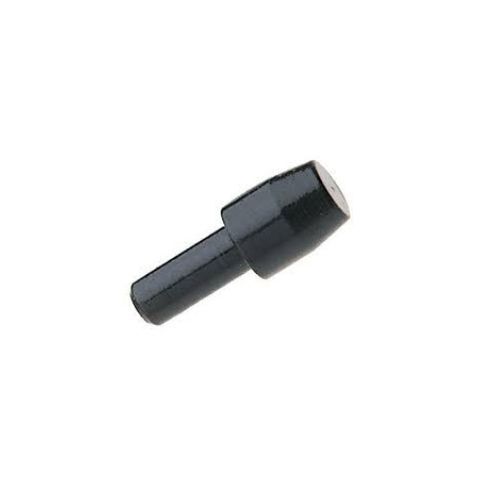

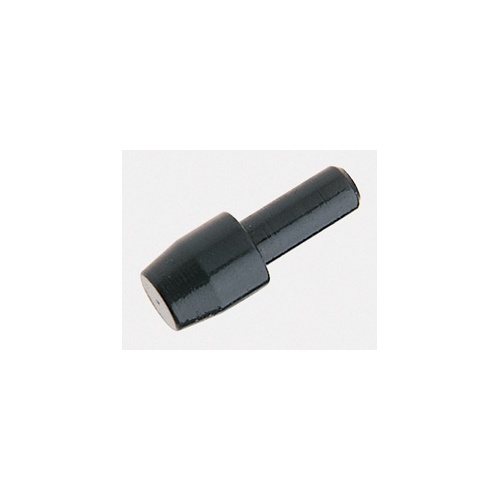

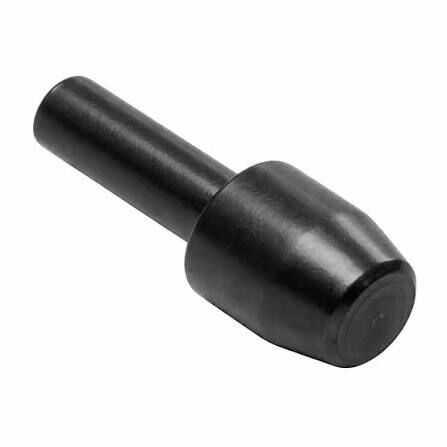

The Redding 17 Cal. Case Trimmer Pilot (5/32 Shank) is a precision-ground, hardened steel lathe accessory designed to guide small-bore cartridge case mouths during manual or powered case trimming. Engineered specifically for .17-calibre rifle cases, this pilot features a diameter of approximately .168" to .169" to ensure smooth entry into sized necks without binding or scratching the brass. By maintaining concentric alignment between the case neck and the cutting tool, it delivers uniform, square case mouths and consistent overall length across precision handloads.

Key Features

Precision Neck Alignment: Keeps .17-calibre cartridge necks concentric and square relative to the cutting blade during case trimming operations.
Lead-In Entry Taper: Features a slight taper at the tip for smooth insertion into sized case mouths without marring brass.
Hardened Steel Construction: Built from precision-ground, heat-treated steel for wear resistance across bench reloading sessions.
Dedicated Shank Sizing: Machined with a 5/32" (approx. 3.97 mm) shank diameter to match small-bore trimmer cutter heads.

Product Specifications

Calibre Application: .17 Calibre (e.g., .17 Hornet, .17 Remington, .17 Fireball)
Pilot Diameter: Approximately .168" to .169" (~.004" under standard bullet diameter)
Shank Diameter: 5/32" (approx. 3.97 mm)
Material: Heat-treated, precision-ground hardened steel
Tool Compatibility: Redding Model 1400 and Model 2400 Match Precision Case Trimmers fitted with a 5/32" cutter bore (such as part #14040), as well as compatible trimmers using a standard 5/32" pilot shank

Who is the Redding 17 Cal. Case Trimmer Pilot (5/32 Shank) for?

Varmint Hunters — requires a dedicated .168" to .169" pilot diameter to maintain square case mouths and precise overall length when preparing small-bore centrefire ammunition for fox and pest control.
Target Shooters — relies on the 5/32" shank diameter and lead-in taper of this case trimmer pilot to ensure concentric neck alignment without brass distortion when handloading .17 Hornet, .17 Remington, or .17 Fireball cartridges.

Less suitable for: Cartridge cases larger than .17 calibre (such as .204 Ruger or .22 calibre), which require calibre-specific pilots sized for standard 3/16" cutter shanks, or high-volume processing beyond bench lathe capacity, which is better served by automated on-press electric trimming dies.

SKU	RD41462LP
Model #	15168
Brand	Redding
Shipping Weight	1.0000kg
