What specific dies and calibres is the Redding Type S Decapping Assembly Model 21308 compatible with?

This assembly is designed specifically for Redding Type S Bushing Full Length Resizing Dies and Type S Bushing Neck Sizing Dies chambered in .308 Winchester, .30-30 Winchester, and .300 Remington SAUM. It is strictly limited to these short-action .30-cal cartridges and will not fit longer cases like the .30-06 Springfield or .300 Win Mag, nor will it fit standard non-bushing Redding dies.

Can I use this decapping assembly with brass that features small flash holes, such as Lapua .059 inch brass?

The assembly comes equipped with a standard Redding decapping pin measuring approximately .062 inches in diameter. When reloading brass with small flash holes like Lapua 1.50 mm cases, the standard pin may bind, so you will need to substitute it with a Redding undersize decapping pin.

Does this mechanical reloading component require any Australian electrical certifications or 240V power?

No, the Redding Type S Decapping Assembly is a 100% mechanical reloading tool requiring no power supply. Therefore, 240V compatibility and SAA or RCM regulatory certifications are entirely not applicable to this product.

What products pair well with this decapping assembly when setting up a .308 Winchester reloading bench?

To get the most out of your reloading setup, pair this assembly with the Redding 80155 308 Winchester Full Length Reloading Die Set and Redding Imperial Sizing Die Wax Case Lube to ensure smooth case sizing and protected brass necks during outback reloading sessions.

Decapping Rod Assembly - Redding 21308

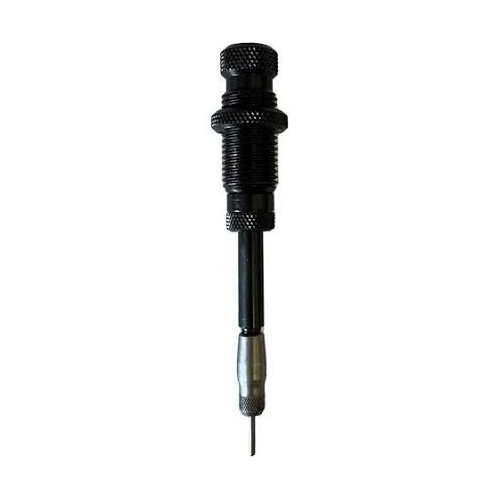

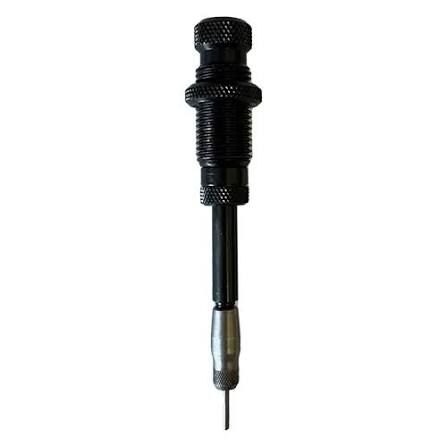

The Redding Type S Decapping Rod Assembly (Part #21308) is a factory-original replacement and calibre-conversion component engineered specifically for Redding Type S Bushing Full Length and Neck Resizing Dies. Designed for short-action .30-calibre cartridges, this assembly retains interchangeable sizing bushings while providing an adjustable spindle mechanism for spent primer removal. It allows handloaders to run standard internal neck expansion using the included .30-calibre steel expander button or remove the button entirely to size neck tension solely via external bushings.

Key Features

Modular Bushing Retention: Secures and properly floats Redding interchangeable sizing bushings inside Type S dies while maintaining independent decapping depth adjustment.
Configurable Expanding: Ships with a standard .30-calibre steel size button that can be retained for conventional inside neck expanding or removed for minimal brass working.
Direct OEM Replacement: Fully replaces bent spindles, stripped lock collars, or damaged pins to restore factory tolerances in compatible short-action sizing dies.
100% Mechanical Operation: Requires no electrical power or external connections, functioning directly within standard manual reloading press setups.

Product Specifications

Manufacturer Part Number: 21308 (RED21308)
Cartridge Compatibility: .308 Winchester, .30-30 Winchester, and .300 Remington SAUM (Short Action Ultra Magnum)
Die Compatibility: Redding Type S Bushing Full Length Resizing Dies and Type S Bushing Neck Sizing Dies
Included Expander Button: Standard steel size button for .30 calibre (Part #40307)
Included Decapping Pin: Standard steel decap pin with nominal .062 inch (1.57 mm) diameter (Part #01060)
Included Hardware: Threaded steel decap rod spindle, decap rod holder, and knurled steel lock nut

Who is the Redding Type S Decapping Assembly 308 Win, 30-30 Win, 300 Rem Saum for?

Precision rifle handloaders maintaining .308 Winchester reloading equipment — requires a dedicated replacement reloading die assembly equipped with a nominal .062 inch (1.57 mm) decapping pin to replace damaged spindles in Type S bushing dies without altering calibrated bushing float.
Handloaders servicing .30-30 Winchester and .300 Rem SAUM Type S bushing dies — relies on a .30 calibre (Part #40307) steel size button and short-action rod length to maintain correct internal case neck dimensions during cartridge resizing.

Less suitable for: Handloaders processing longer .30-calibre cases such as .30-06 Springfield, .300 Win Mag, or .30-378 Wby Mag (which require longer-reach decap rod assemblies), reloaders using standard non-bushing or Competition Neck dies, or shooters resizing brass with .059 inch (1.50 mm) small flash holes where standard .062 inch pins bind, requiring dedicated undersize decapping pins instead.

SKU	RD41479LP
Model #	21308
Brand	Redding
Shipping Weight	1.0000kg
