What specific neck tension does the Redding 21523 mandrel provide for 6.5mm bullets?

The Redding 0.2625 expanding mandrel is precision-ground to a diameter of 0.2625 inches. This provides approximately 0.0015 inches of neck tension below the nominal 0.264 inch bullet diameter, ensuring consistent bullet release for precision 6.5mm reloading.

What equipment is required to use the Redding 0.2625 Expanding Mandrel in my reloading setup?

This mandrel is engineered with a proprietary fit for use inside the Redding Precision Expanding Die Body, which is sold separately. For optimal operation and smooth case neck expansion, it pairs exceptionally well with Redding Imperial Sizing Die Wax Case Lube.

Do I need any special firearm licenses or electrical compliance certifications to purchase this mandrel in Australia?

No special firearms licenses are required to purchase reloading tool accessories like this mandrel in Australia. Furthermore, because it is a non-powered, solid steel mechanical tool, electrical compliance ratings such as 240V compatibility and SAA or RCM certifications do not apply.

What are the pre-condition requirements for brass before using the Redding 21523 mandrel?

Before running your brass over this mandrel, the internal neck diameter must be smaller than 0.2625 inches. Fired brass should be properly resized using a sizing die without an expander ball or with an undersized bushing to ensure the mandrel can effectively expand the neck from the inside out.

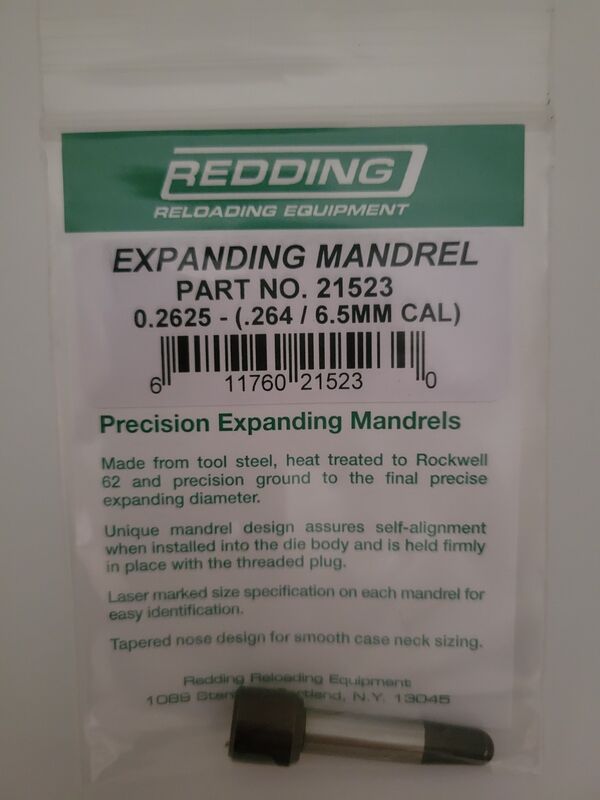

6.5mm Expanding Mandrel - Redding 21523

The Redding 0.2625 Expanding Mandrel (MPN: 21523) is a precision reloading tool accessory engineered to set consistent internal case neck diameter from the inside out. CNC-machined from hardened tool steel and ground to final dimension, it expands case necks to an exact 0.2625 in (6.6675 mm) diameter. Designed for use in the Redding Precision Expanding Die Body, this mandrel establishes approximately 0.0015 in of neck tension on standard .264 Caliber / 6.5mm projectiles, improving bullet release consistency and reducing muzzle velocity standard deviations.

Key Features

Targeted Neck Tension: Sizes internal neck diameter to exactly 0.2625 in, creating 0.0015 in of neck tension under nominal 0.264 in bullet diameter for consistent seating and release forces.
Concentric Alignment: Designed with angled alignment surfaces that interface with the Redding Expanding Die body to self-centre and eliminate runout during the expansion stroke.
Tool Steel Construction: Precision-machined from high-grade, heat-treated tool steel with size markings permanently stamped on the head for quick identification.
Inside-Out Expansion: Pushes brass imperfections to the exterior of the case neck, yielding a uniform internal surface finish and consistent bullet grip.

Specifications

Product Type: Reloading neck expander mandrel
Manufacturer Part Number (MPN): 21523
Mandrel Diameter: 0.2625 in (6.6675 mm)
Calibre Compatibility: .264 Caliber / 6.5mm (including 6.5 Creedmoor, 6.5 PRC, 6.5x55 Swedish, and .260 Remington)
Neck Tension Produced: Approximately 0.0015 in below nominal 0.264 in bullet diameter
Material: Heat-treated, precision-ground tool steel
Die Interface: Redding Precision Expanding Die Body
Operation: Non-powered, mechanical reloading accessory

Who is the Redding 0.2625 Expanding Mandrel for?

Precision rifle competitors — Sizes 6.5mm cartridge necks to an internal diameter of 0.2625 in to maintain uniform 0.0015 in neck tension across match-grade handloads.
Benchrest shooters — Employs a precision-ground 0.2625 in expander mandrel to minimise runout and reduce standard deviations in muzzle velocity across .264 caliber cases.
Handloaders prepping new brass — Expands dented or undersized case necks on fresh .264 caliber / 6.5mm brass to a uniform 0.2625 in internal profile prior to initial bullet seating.

Less suitable for: Handloaders working with calibres other than .264 / 6.5mm, or cases where the internal neck diameter is already 0.2625 in or larger; handloaders loading alternative diameters or requiring different tension profiles require calibre-specific mandrels sized to their target tension specifications.

SKU	RD41484LP
Model #	21523
Brand	Redding
Shipping Weight	1.0000kg
