What level of bullet neck tension does the Redding 21545 mandrel provide for standard .30-caliber loads?

The Redding 21545 features a precision-ground diameter of 0.3060 inches, which is engineered specifically to deliver a consistent 0.0020-inch neck tension or interference fit when loading standard 0.308-inch diameter projectiles like the .308 Winchester and .300 Win Mag. Accounting for typical brass spring-back, this uniform inside neck sizing helps lower velocity standard deviations and improve long-range group sizes.

What equipment is required to set up and operate this expanding mandrel on my reloading bench?

This mandrel must be installed inside a Redding Precision Expanding Die Body, which mounts into any standard 7/8"-14 threaded reloading press commonly used across Australian workshops. Prior to running cases over the 0.3060" mandrel, ensure your case neck inside diameter has been pre-sized smaller than this dimension. Additionally, applying a quality case neck lube such as Redding Imperial Sizing Die Wax ensures smooth operation and prevents brass pickup.

Are there any Australian electrical or regulatory compliance standards that apply to this reloading component?

No, the Redding 21545 expanding mandrel is an entirely mechanical tool steel accessory requiring zero electricity. Therefore, it is exempt from Australian 240V electrical requirements, SAA approvals, and RCM regulatory compliance markings.

How should I maintain the hardened tool steel mandrel for long-term use in outback environments?

Constructed from CNC-machined and precision-ground tool steel, the mandrel is designed for durability on indoor reloading benches. To protect it from humidity and environmental moisture common in coastal or outback Australian regions, wipe the part down with a light coat of rust-preventative gun oil or preservative after use and store it in a dry location.

Redding 21545 Mandrel - Redding 21545

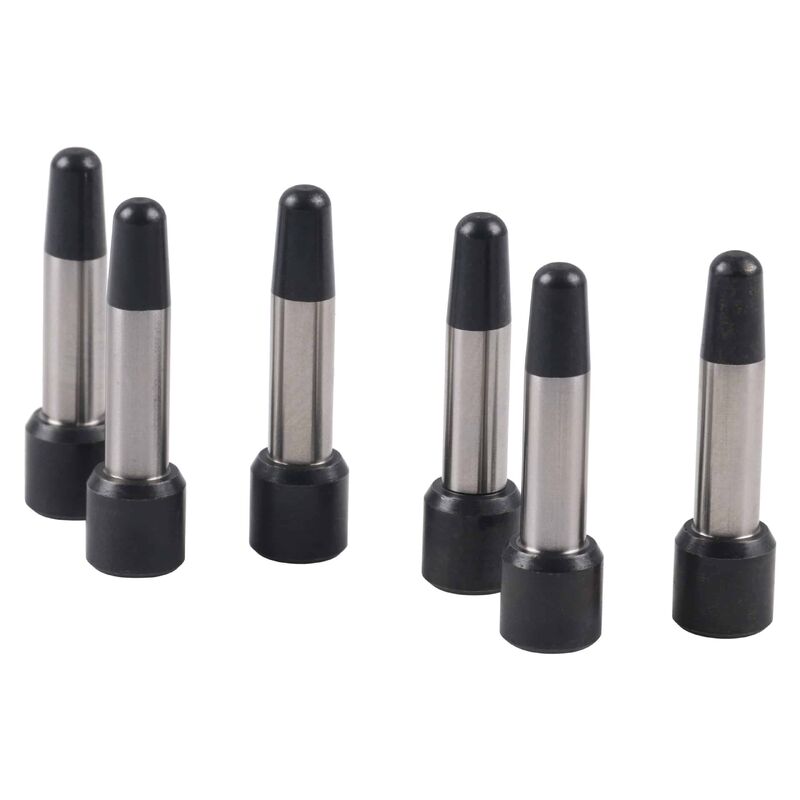

The Redding Precision Expanding Mandrel 0.3060 (MPN 21545) is a hardened, CNC-machined, and precision-ground tool steel reloading component designed to expand cartridge case necks from the inside. Built for standard .30-caliber cartridges firing nominal 0.308-inch diameter projectiles—such as the .308 Winchester, .30-06 Springfield, .300 Win Mag, .300 PRC, and .300 AAC Blackout—this mandrel eliminates internal neck wall thickness variations and smooths imperfections following resizing. It utilizes proprietary angled alignment surfaces on its base to seat squarely within a Redding Precision Expanding Die Body, preventing mandrel tilt and reducing total cartridge runout.

Key Features

Precision Inside Neck Sizing: Expands brass from the interior outward to establish consistent interference fit across case lots.
Axial Alignment Surfaces: Machined with proprietary angled base geometry to eliminate runout when installed in a Redding Precision Expanding Die Body.
Hardened Tool Steel Construction: Precision-ground for smooth operation, durability, and resistance to wear during high-volume reloading.
Laser-Marked Identification: Features the .3060 diameter clearly marked on the top face for fast visual confirmation on the reloading bench.

Product Specifications

Manufacturer: Redding Reloading Equipment
Part Number (MPN): 21545
Material: Hardened, CNC-machined, precision-ground tool steel
Mandrel Diameter: 0.3060 inches
Calibre Family: .30 Caliber (0.308-inch projectile diameter)
Die Interface: Sized for Redding Precision Expanding Die bodies (requires standard 7/8"-14 press threading)
Power Requirements: None (manual mechanical operation)

Who is the Redding 0.3060 Expanding Mandrel for?

Precision long-range handloaders loading .30-caliber cartridges — relies on the exact 0.3060-inch mandrel diameter to expand .30-calibre brass and correct internal neck wall thickness inconsistencies after bushing or full-length sizing.
Handloaders aiming to lower velocity standard deviations through precise neck tension control — utilizes this expanding mandrel to establish a uniform 0.0020-inch neck tension interference fit on standard 0.308-inch projectiles, providing consistent bullet release pressures.

Less suitable for: Applications where the case neck inside diameter is already expanded to 0.3060 inches or larger prior to sizing, or for handloaders requiring heavy neck tension (0.0025 to 0.0030 inches) or light neck tension (0.0010 to 0.0015 inches), which require alternative stepped mandrels sized at 0.3055/0.3050 inches or 0.3065/0.3070 inches respectively.

SKU	RD41488LP
Model #	21545
Brand	Redding
Shipping Weight	1.0000kg
