Will the Redding Instant Indicator 27132 fit on my standard reloading press used in my Australian workshop?

Yes, the Redding Instant Indicator features a standard 7/8"-14 thread interface, making it fully compatible with all common single-stage reloading presses widely used in Australia, such as the RCBS Rock Chucker, Redding Boss or T-7, and Hornady Lock-N-Load presses.

How precise is the dial indicator for measuring shoulder bump on 6.5x55 SE brass?

The mechanical dial indicator provides precise readings down to 0.001" (one-thousandth of an inch) graduations. This high level of resolution allows handloaders to accurately measure shoulder setback and cartridge base-to-ogive consistency to tune their 6.5x55 Swedish Mauser ammunition.

Does this tool require any electrical certification or batteries for use in Australia?

No, the Redding Instant Indicator is an entirely mechanical precision metrology tool requiring no electrical power, batteries, or 240V mains wiring. Consequently, it is exempt from Australian SAA or RCM electrical regulatory certifications.

Can I use this specific model to check headspace on my .308 Win or 6.5 Creedmoor brass as well?

No, model 27132 is built strictly for the 6.5x55mm Swedish Mauser cartridge family and its corresponding bullet diameter. You cannot measure different cartridge families like .308 Winchester or 6.5 Creedmoor without using separate, calibre-specific Instant Indicator dies.

6.5x55mm Instant Indicator - Redding 27132

The Redding 6.5x55 Se Instant Indicator W/Dial Indicator (MPN: 27132) is a precision steel workshop tool designed to measure shoulder bump, headspace uniformity, and bullet seating depth directly in a reloading press. Operating as a comparative metrology system, it threads into standard press setups to provide fast, direct readouts on 6.5x55mm Swedish (6.5x55 SE) cases without requiring handheld calipers or separate modular collars.

Key Features

Direct In-Press Measurement: Mounts into any single-stage press via standard 7/8"-14 threading, allowing handloaders to check cases and completed rounds by raising the press ram.
Shoulder Bump & Headspace Verification: Compares the cartridge base-to-shoulder datum line against a fired case or zero gauge to accurately dial in sizing dies for consistent .001" to .002" shoulder setback.
Cartridge Base-to-Ogive (CBTO) Checking: Uses a 6.5mm (.264") bore diameter contact bushing to verify bullet seating depth consistency across finished batches.
Mechanical Operation: Fully mechanical design requires no batteries, mains power, or electrical certifications.

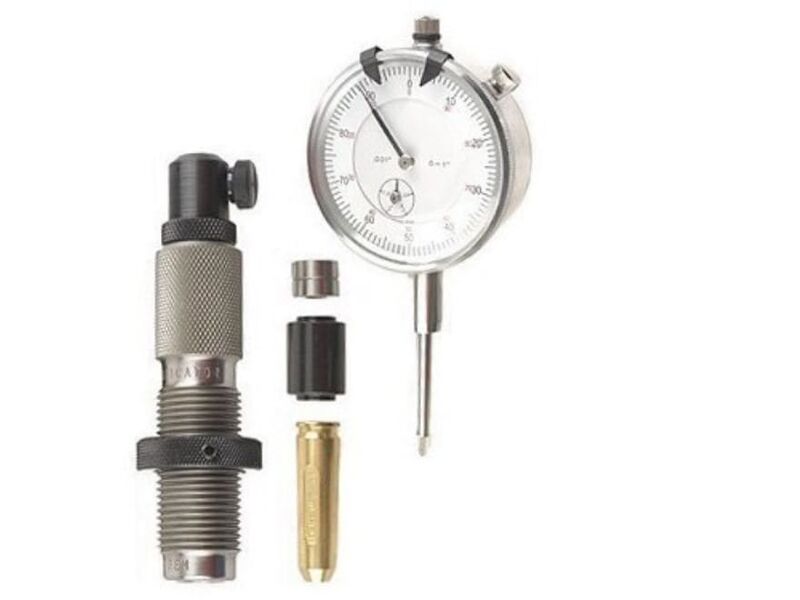

Complete Setup: Includes a calibre-specific steel die body, a dial indicator with 0.001" graduations, bore diameter contacts, a case head spacer/zeroing gauge, and instructions.

Specifications

Manufacturer Part Number (MPN): 27132
Calibre Compatibility: 6.5x55mm Swedish / 6.5x55 SE
Die Body Material: Precision machined steel
Thread Interface: Standard 7/8"-14 reloading press threads
Dial Resolution: 0.001" graduations
Mechanism: Pure mechanical dial indicator

Who is the Redding 6.5x55 SE Instant Indicator with Dial Indicator for?

Precision handloaders tuning ammunition for 6.5x55 Swedish Mauser rifles — Sets full-length sizing dies accurately by measuring relative shoulder setback on 6.5x55mm Swedish brass down to 0.001" dial graduations using a standard 7/8"-14 thread interface.
Competitive shooters sorting 6.5x55 brass by headspace and CBTO consistency — Allows high-speed comparative batch sorting of 6.5x55mm Swedish cartridges in standard 7/8"-14 presses with 0.001" resolution to verify base-to-ogive uniformity across finished rounds.

Less suitable for: Handloaders seeking to measure different cartridge families such as 6.5 Creedmoor, 6.5 PRC, or .308 Winchester, which exceed this tool's dedicated 6.5x55mm chamber geometry and require separate calibre-specific comparative dies or universal handheld caliper comparator bodies.

SKU	RD41493LP
Model #	27132
Brand	Redding
Shipping Weight	1.0000kg
