Will the Redding 243 Win Master Hunter Die Set fit my existing reloading press in Australia?

Yes, this 2-die set features the industry-standard 7/8"-14 TPI thread pattern, making it fully compatible with almost all standard single-stage and turret reloading presses commonly used in Australia, including models from Redding, RCBS, Hornady, Lee, and Lyman. As a mechanical tool, it does not require electrical power or Australian SAA and RCM compliance certifications.

Does the full-length sizing die require case lube, and what makes the sizing process smoother?

Yes, standard case lubrication is required to prevent brass from sticking in the die, and we recommend pairing this set with Redding Imperial Sizing Die Wax for optimal results. The full-length sizer features a free-floating carbide expander button that drastically reduces neck friction as the case is withdrawn, preventing brass stretch and eliminating the need for inside-neck lubrication.

Can I use the Master Hunter seating die to apply a crimp to my 243 Winchester hunting rounds?

No, the competition bullet seating die included in this set seats the bullet only and does not apply a roll or taper crimp. If you require a heavy crimp for heavy-recoiling hunting rifles or semi-autos, you will need to use a dedicated crimping tool such as a Redding Profile Crimp Die or Lee Factory Crimp Die as a separate step.

Is this die set suitable if I only want to neck-size brass for a custom bolt-action rifle?

No, this is specifically a full-length sizing die set designed to return 243 Winchester brass fully back to SAAMI specifications for reliable chambering in both bolt-action and semi-automatic rifles. If your primary goal is maximizing brass life through neck-sizing only for a custom chamber, a Redding Type S Bushing Neck Die Set or compatible neck-sizing components would be better suited.

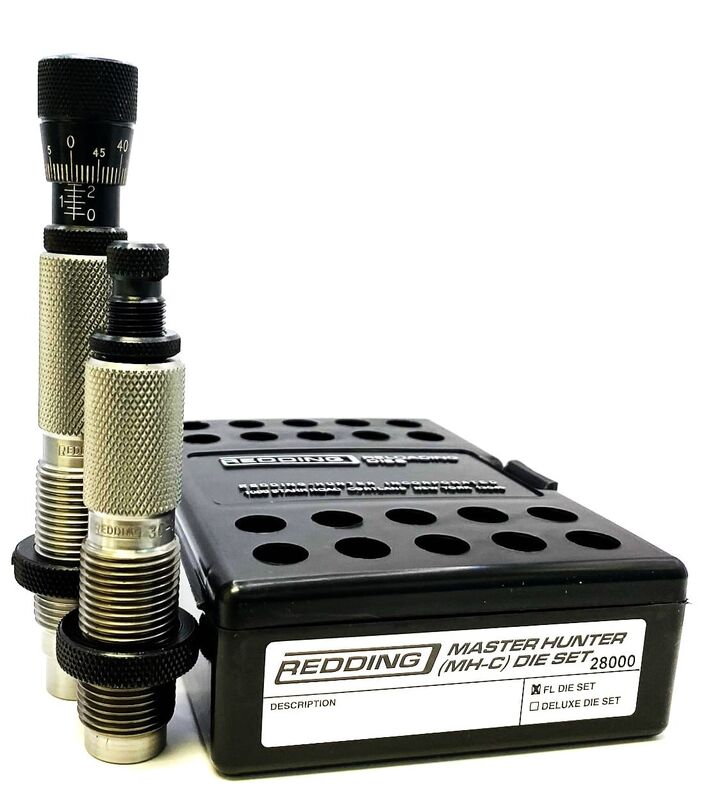

.243 Reloading Dies - Redding 28114

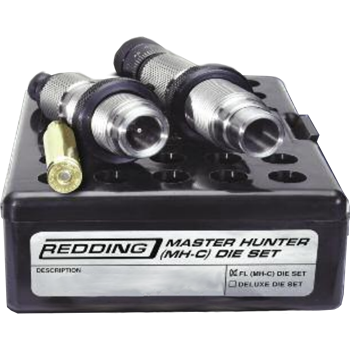

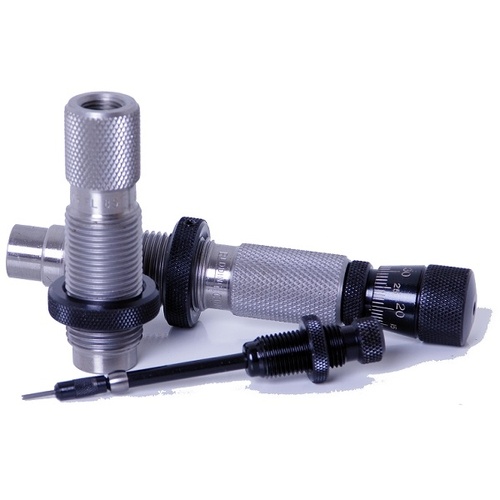

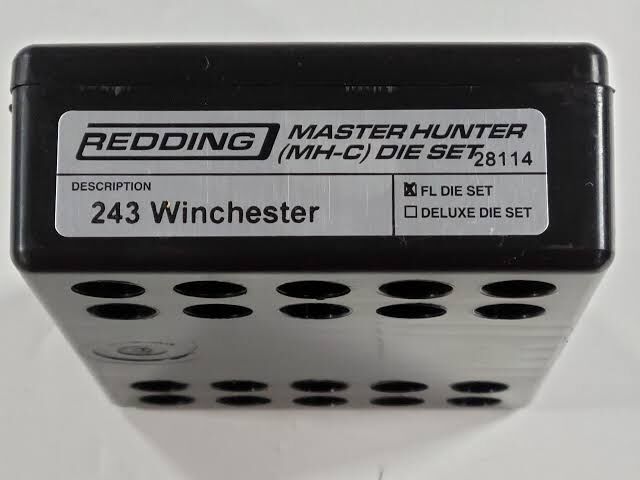

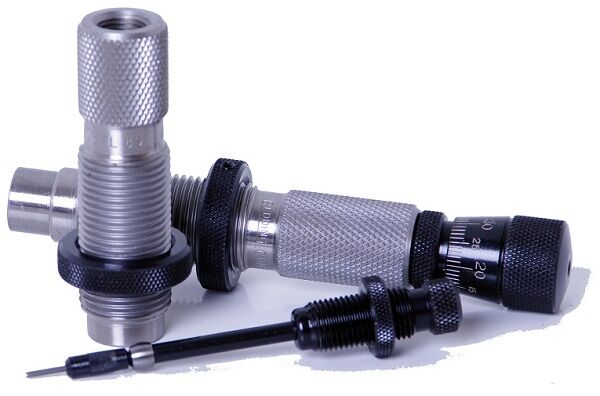

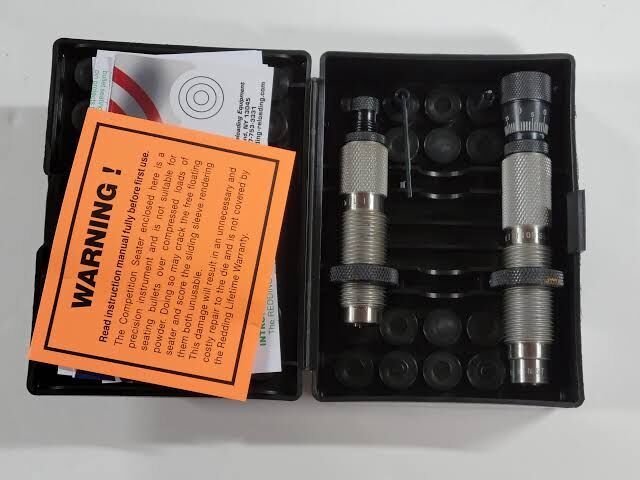

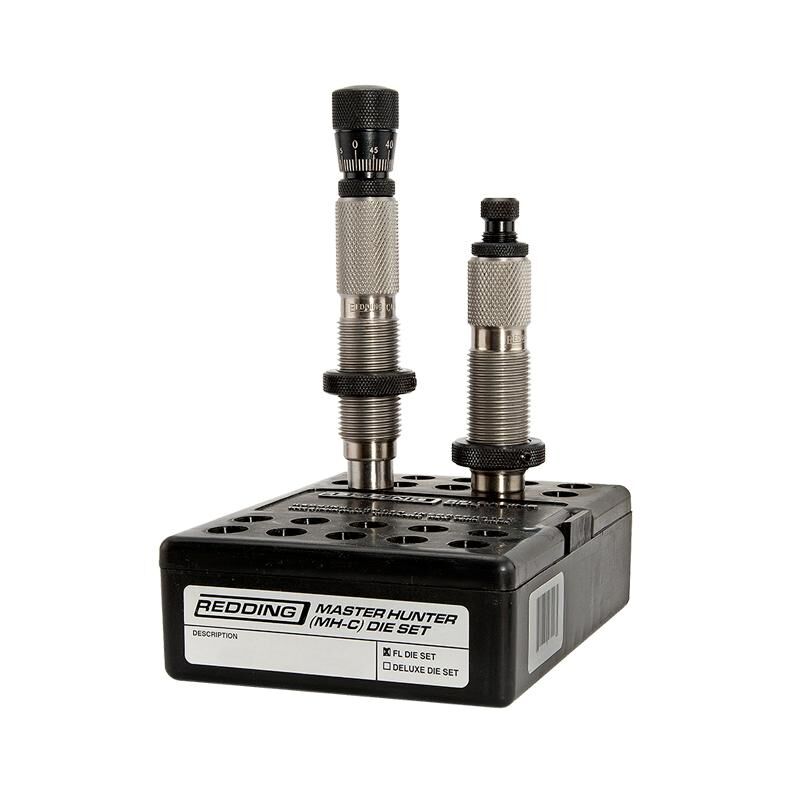

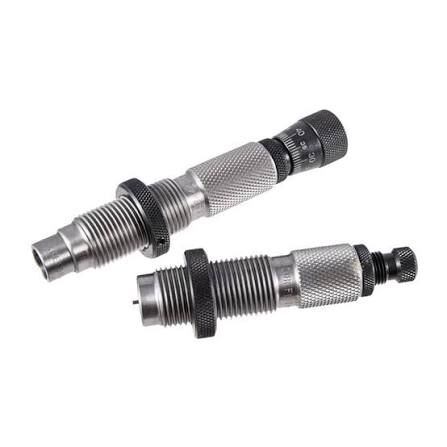

The Redding .243 Win Master Hunter Die Set (MPN: 28114) is a premium 2-die reloading system designed to produce accurate, field-ready ammunition for rifles chambered in .243 Winchester. Manufactured from heat-treated alloy steel, the set pairs a full-length sizing die with a competition bullet seating die to return fired brass to SAAMI specifications while ensuring concentric bullet alignment. Built with standard 7/8"-14 TPI threading, these dies mount directly into standard single-stage and progressive reloading presses.

Key Features

Carbide Expander Button: The full-length sizing die integrates a free-floating carbide size button that reduces friction inside the case neck, minimising brass stretching without requiring inside-neck lubrication.
Micrometer Seating Stem: Features a top-mounted micrometer head calibrated in 0.001" increments, allowing precise bullet seating depth adjustments for fine-tuned cartridge overall length (COAL).

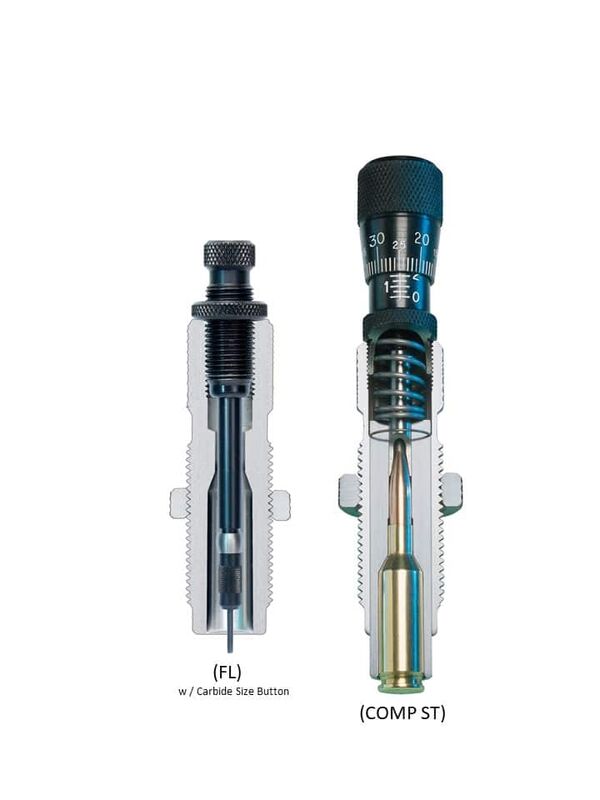

Sliding Alignment Sleeve: The Competition Seating Die uses an internal floating sleeve that aligns and supports both the projectile and the cartridge case before bullet seating begins, minimising bullet runout.
Full-Length Resizing: Restores case dimensions completely to factory specifications to ensure smooth extraction and dependable chambering in hunting environments.

Specifications

Calibre Compatibility: .243 Winchester
Die Set Type: 2-Die Set (Full-Length Sizing Die and Competition Bullet Seating Die)
Thread Interface: 7/8"-14 TPI
Seating Adjustment: Micrometer stem with 0.001" increment markings
Internal Components: Free-floating carbide expander button and sliding alignment sleeve
Packaged Weight: Approximately 0.7–0.8 kg
Operation: Manual / Mechanical (Non-powered)

Who is the Redding 243 Win Master Hunter Die Set for?

Precision varmint shooters — who require minimal bullet runout and exact seating depth adjustments, utilising the 0.001" increment micrometer seating head on this 243 Winchester reloading die set to produce match-concentric hunting ammunition.
Hunters loading for field rifles — who depend on smooth feeding and reliable chambering in bolt-action and semi-automatic rifles, utilising the 2-die set's full-length sizer to restore fired .243 Winchester brass to exact factory specifications.

Less suitable for: Shooters loading alternative 6mm cartridges such as 6mm Creedmoor, 6mm ARC, or .243 WSSM, handloaders seeking to neck-size only for custom bolt rifles (who are better served by a bushing neck sizing die set), or those requiring a crimped finish on hunting bullets (who require a dedicated roll or taper crimp die).

SKU	RD41494LP
Model #	28114
Brand	Redding
Shipping Weight	1.0000kg
