What components are included in the Redding 34256 Decapping Rod Assembly?

The Redding 34256 assembly comes complete with the decapping rod (Part #01034), a standard size and expander button (Part #39256) calibrated for 0.257-inch calibre, and a standard decapping pin (Part #01060). Weighing approximately 0.045 to 0.05 kg, it is ready to screw directly into your standard sizing die right out of the package.

Which specific rifle cartridges are compatible with the Redding 34256 assembly?

This assembly is engineered for standard .25 calibre cartridges utilising a 0.257-inch bullet diameter. It is specifically designed for conventional sizing dies chambered in .25-06 Remington, .25-06 Remington Improved 40 degrees, .257 Roberts, .257 Roberts Improved 40 degrees, and .25-284 Winchester.

Will the Redding 34256 fit into my Redding Type-S Bushing Dies or Competition Dies?

No, this assembly is strictly built for conventional standard full-length and neck sizing dies. It is incompatible with Redding Type-S Bushing Dies and Competition Dies, which require dedicated Type-S decapping rods and separate neck bushings.

Does this decapping rod assembly require any Australian electrical or safety certifications?

No, electrical compliance such as 240V or SAA/RCM certification is entirely inapplicable. This is a purely mechanical, manual reloading tool requiring no electrical power or special firearm licensing constraints to import or operate on your Australian reloading bench.

What precautions should I take when using this assembly with Berdan-primed brass or small flash holes?

The standard decapping pin is designed exclusively for Boxer-primed centerfire brass featuring standard approximately 0.080-inch flash holes. Attempting to use this rod on Berdan-primed brass or military brass with small 1.5mm flash holes will result in a broken decapping pin unless replaced with a dedicated undersized pin.

How should I maintain the precision-machined steel components of the 34256 during humid Australian conditions?

Because the assembly is crafted from precision-machined steel, it benefits from a light application of gun oil or rust preventative when stored in humid outback or coastal environments. Regularly check the threaded interface and pin alignment to ensure consistent primer removal and smooth case neck expansion over years of heavy reloading use.

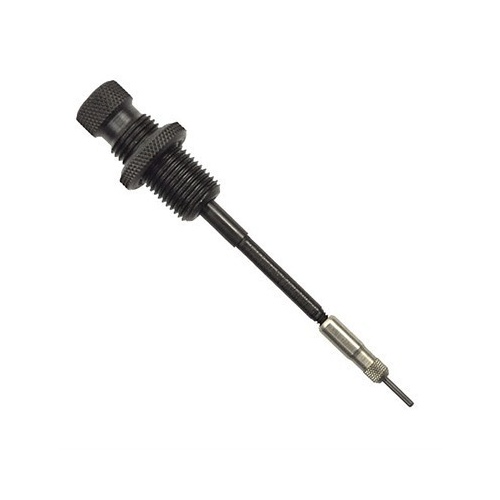

Redding 34256 Decapping Rod Assembly - Redding 34256

The Redding Decapping Rod Assembly (Part #34256) is a precision-machined steel replacement assembly designed for standard full-length and neck sizing dies. It performs dual operations in a single press stroke: knocking out spent Boxer primers from cartridge cases and expanding the case mouth to the required internal diameter for seating 0.257 in projectiles. Built to replace bent or damaged internal die components, this mechanical unit screws directly into the top of compatible standard Redding die bodies, allowing for precise pin depth adjustment and routine maintenance without requiring power or specialised bench tooling.

Key Features

Dual-Function Processing: Decaps spent primers and expands case necks to 0.257 in internal diameter during normal sizing strokes.
Complete Internal Assembly: Includes the threaded decapping rod (Part #01034), standard 0.257 in expander button (Part #39256), and standard decapping pin (Part #01060).
Direct Maintenance Replacement: Restores factory sizing and decapping performance in standard sizing dies chambered for .25-06 Remington, .25-06 Remington Improved 40°, .257 Roberts, .257 Roberts Improved 40°, and .25-284 Winchester.
Standard Flash Hole Interface: Engineered for Boxer-primed centerfire cartridge cases utilizing standard 0.080 in flash holes.

Specifications

Manufacturer Part Number: 34256
Calibre Compatibility: .25 Calibre / 0.257 in bullet diameter
Component Parts: Decapping Rod (#01034), Expander Button (#39256), Decapping Pin (#01060)
Weight: Approximately 0.045 kg to 0.05 kg (1.6 oz)
Material: Machined steel
Primer/Flash Hole Compatibility: Boxer primers with ~0.080 in flash holes
Power Requirements: None (manual reloading component)

Who is the Redding 34256 Decapping Rod Assembly for?

Reloaders of .25-06 Remington cartridges — requires a dedicated 0.257 in expander button to size case necks correctly and decap Boxer-primed brass using standard Redding reloading die decapping rods.
Reloaders of .257 Roberts cartridges — features a matched 0.257 in expander diameter to restore proper neck tension and spent primer extraction in conventional Redding sizing dies.

Less suitable for: Reloaders operating Redding Type-S Bushing Dies or Redding Competition Dies, which require dedicated bushing-style decapping rods without standard expander balls.

SKU	RD102361LP
Model #	34256
Brand	Redding
Shipping Weight	0.2000kg
