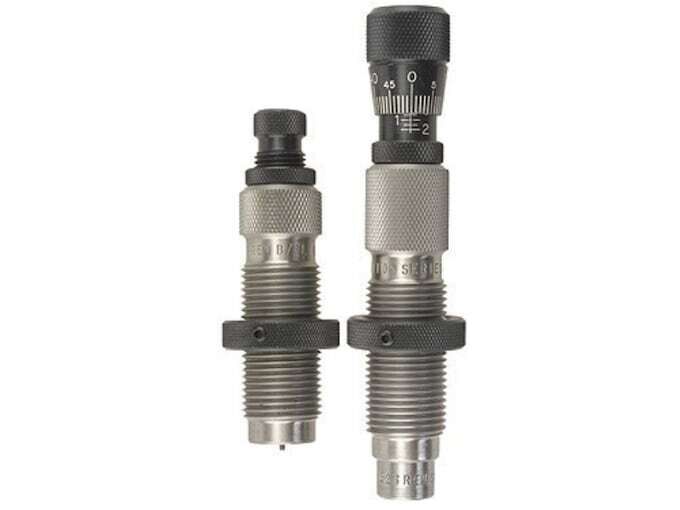

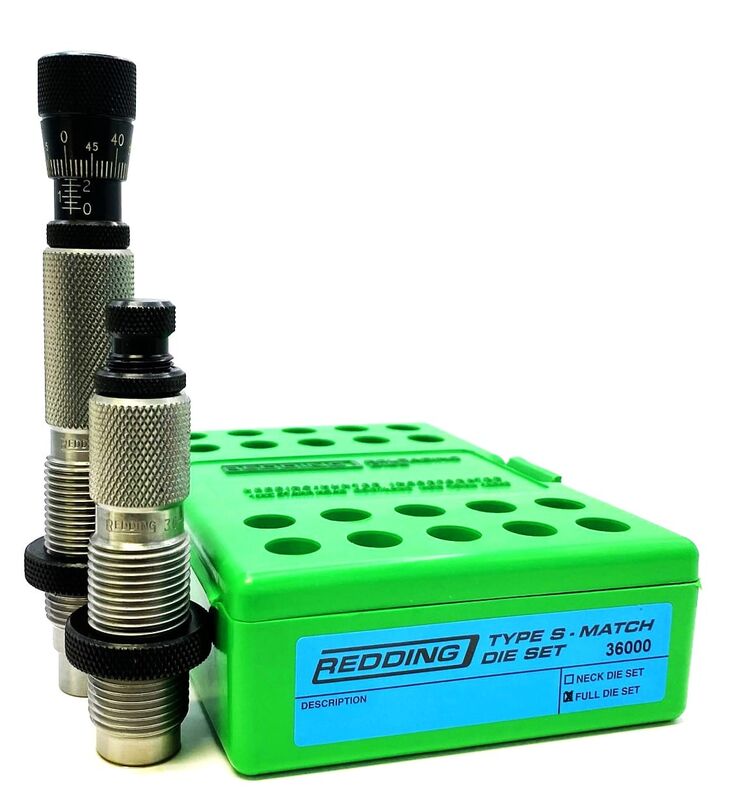

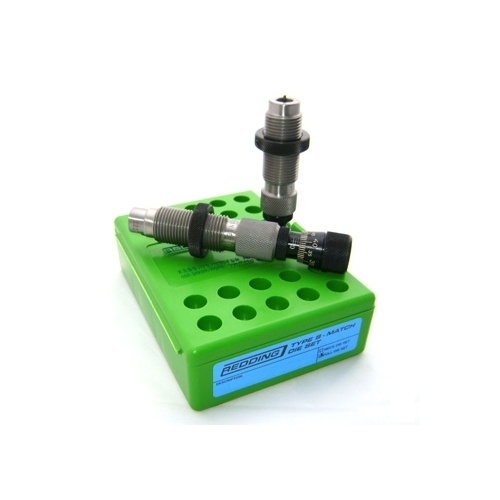

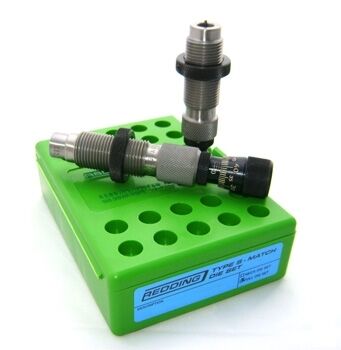

The Redding Type S Match Bushing Full Length 2-Die Set (SKU: 36132) is a precision metallic cartridge reloading system engineered for the 6.5x55mm Swedish Mauser (6.5x55 SE) cartridge using .264-inch diameter bullets. Built from heat-treated, CNC-machined alloy steel with hand-polished internal surfaces, this mechanical two-die set mounts to standard reloading presses via 7/8"-14 threads. It provides full-length case body sizing with user-adjustable neck tension alongside micrometer-controlled bullet seating for match-grade rifle ammunition.

Key Features

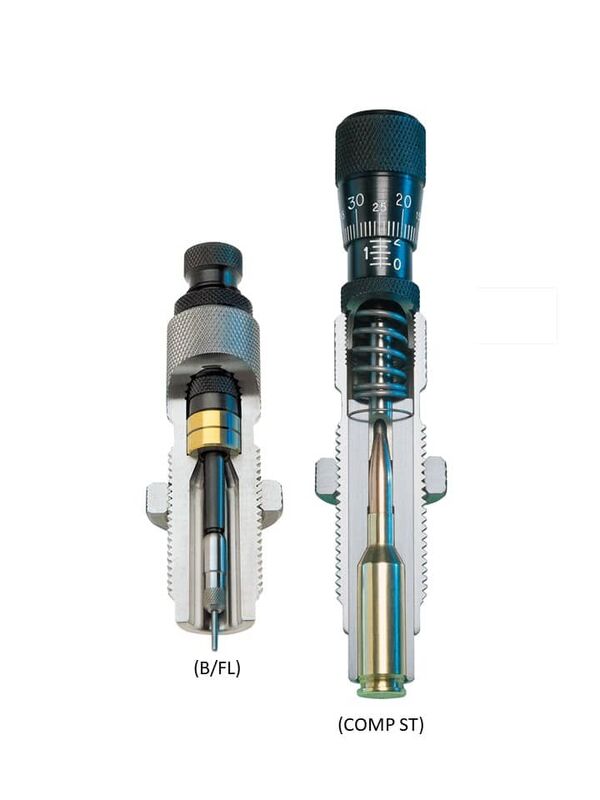

• Type S Bushing Full Sizing Die (#77132): Resizes the entire case body to factory dimensions while allowing reloaders to set neck tension precisely using interchangeable sizing bushings available in 0.001" increments (bushings sold separately).
• Adjustable Decapping System: Features an adjustable decapping rod assembly and decapping pin retainer that allows neck sizing with or without an expander button installed.
• Competition Bullet Seating Die (#55132): Incorporates a top-mounted micrometer calibrated in direct 0.001" increments for non-click, repeatable bullet seating depth adjustment.
• Internal Alignment Sleeve: Utilises a close-tolerance floating sleeve that fully captures and supports both the .264-inch bullet and 6.5x55 case before seating begins, minimising concentricity runout.
• Standard Press Interface: Constructed with industry-standard 7/8"-14 threading to fit single-stage and turret reloading presses, compatible with Redding #7 standard or competition shellholders.

Specifications

• Calibre: 6.5x55mm Swedish Mauser / 6.5x55 SE
• Bullet Diameter: .264-inch
• Die Thread Size: Standard 7/8"-14
• Die Set Type: 2-Die Set (Bushing Full Length Sizer and Competition Bullet Seater)
• Adjustment Resolution: 0.001" micrometer seating depth; 0.001" bushing increments
• Shellholder Compatibility: Standard #7 or Competition Shellholder Set #7
• Power Requirements: None (100% mechanical)

Who is the Redding Type S Match Full Die Set for 6.5x55 SE for?

• Long-Range Target Shooters — Provides full-length case body sizing and interchangeable neck bushings in 0.001" increments to ensure consistent brass dimensions and chambering across repeated firings of 6.5x55mm Swedish cases.
• Benchrest Competitors — Delivers minimal bullet runout using an internal alignment sleeve and a micrometer seating die calibrated in 0.001" increments to seat .264-inch diameter bullets with repeatable depth accuracy.
• Precision Handloaders — Offers direct control over bullet release pressure by allowing the user to configure neck tension without an expander ball on standard 7/8"-14 thread reloading presses.

Less suitable for: Handloaders who only want to resize the case neck without altering the fire-formed body dimensions (a dedicated 6.5x55 bushing neck sizing die is required), or shooters loading other 6.5mm cartridges such as 6.5 Creedmoor or 6.5 PRC, which require calibre-specific dies.
