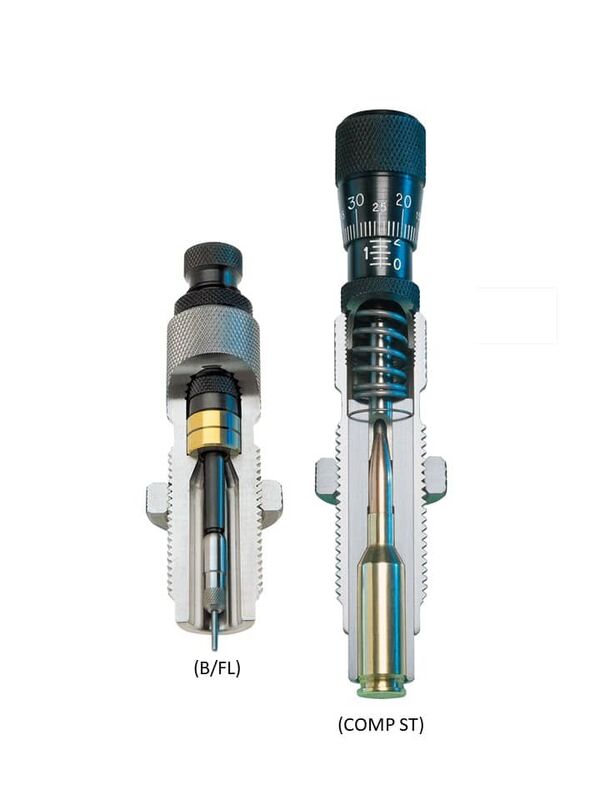

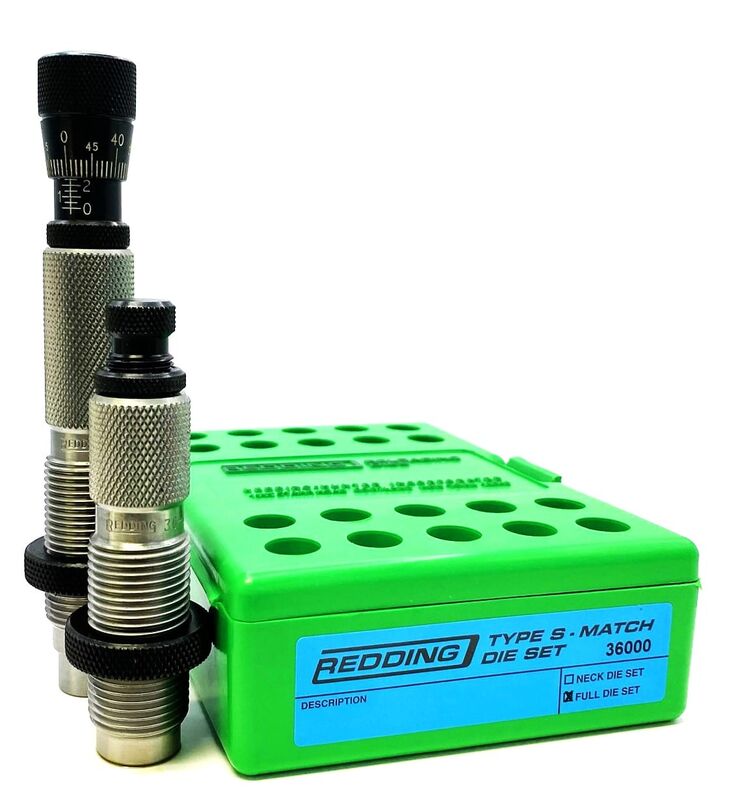

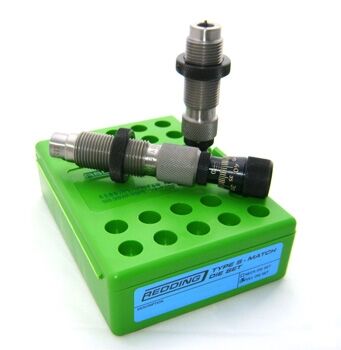

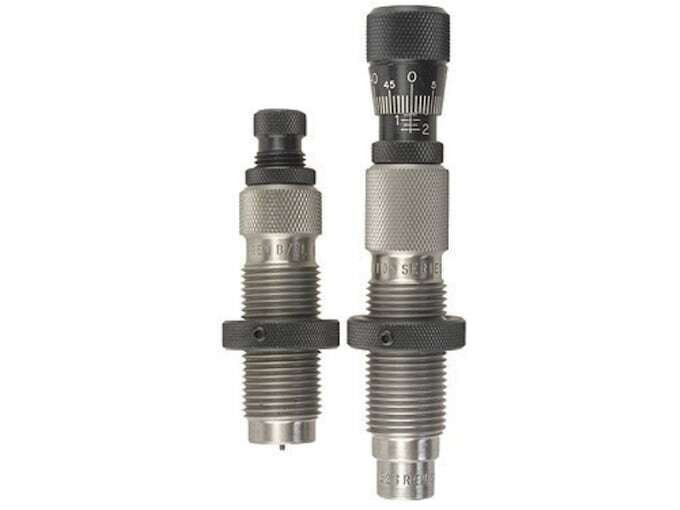

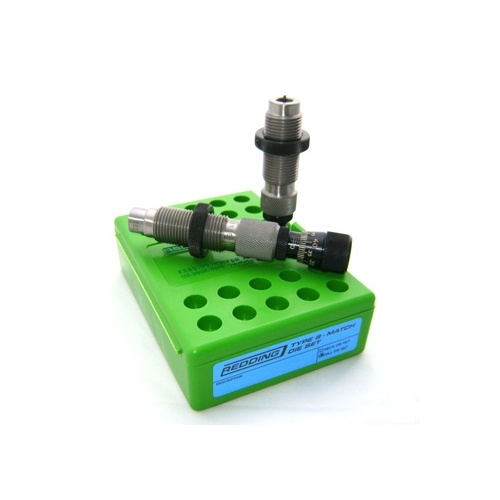

The Redding 22 Br Remington Type S - Match Full Die Set is a precision two-die handloading system engineered specifically for .22 Bench Rest (BR) Remington cartridges with a .224 in (5.7 mm) bullet diameter. Built from heat-treated, case-hardened alloy steel, this set includes a Type S Bushing Full Length Sizing Die and a Competition Bullet Seating Die. It threads directly into any standard reloading press using the industry-standard 7/8"-14 thread interface to deliver precise cartridge concentricity and exact neck tension management.

Key Features

• Interchangeable Bushing Sizing: The Type S full-length sizing die accepts self-centering neck sizing bushings adjustable in 0.001" increments to control neck tension without overworking cartridge brass.
• Configurable Decapping Assembly: Includes an adjustable decapping rod with an expander button and a decapping pin retainer for sizing uniform, turned necks without internal expansion, or functioning as a body die when internals are removed.
• Sliding Sleeve Competition Seating: Employs a free-floating seating stem and a tight-tolerance sliding alignment sleeve that captures and aligns the case and projectile prior to seating.
• Micrometer Depth Adjustments: The competition seating head features micrometer markings calibrated in 0.001" increments for repeatable bullet seating depth.

Specifications

• Calibre: .22 BR Remington
• Bullet Diameter: .224 in / 5.7 mm
• Thread Standard: 7/8"-14 TPI
• Construction: Case-hardened, heat-treated alloy steel
• Die Set Contents: Type S Bushing Full Sizing Die (#77316), Competition Seating Die (#55316)
• Micrometer Precision: 0.001" graduation increments
• Compatible Shellholder: Redding Shellholder #1 or Competition Shellholder #1 (sold separately)

Who is the Redding 22 BR Remington Type S Match Die Set for?

• Competitive benchrest shooters — who require exact neck tension control in 0.001" increments using interchangeable bushings alongside sliding-sleeve alignment to eliminate runout when handloading .224 in / 5.7 mm projectiles with this 22 BR Remington reloading die set.
• Long-range varmint hunters — who depend on micrometer seating depth adjustments calibrated in 0.001" increments on standard 7/8"-14 threaded reloading presses to develop uniform, highly accurate .22 BR Remington cartridges.

Less suitable for: Handloaders seeking to size other Bench Rest cartridges such as 6mm BR Remington or 6mm Dasher, which require dedicated calibre-specific die sets; or those needing an all-inclusive package, as interchangeable sizing bushings and shellholders are not included and must be sourced separately.
